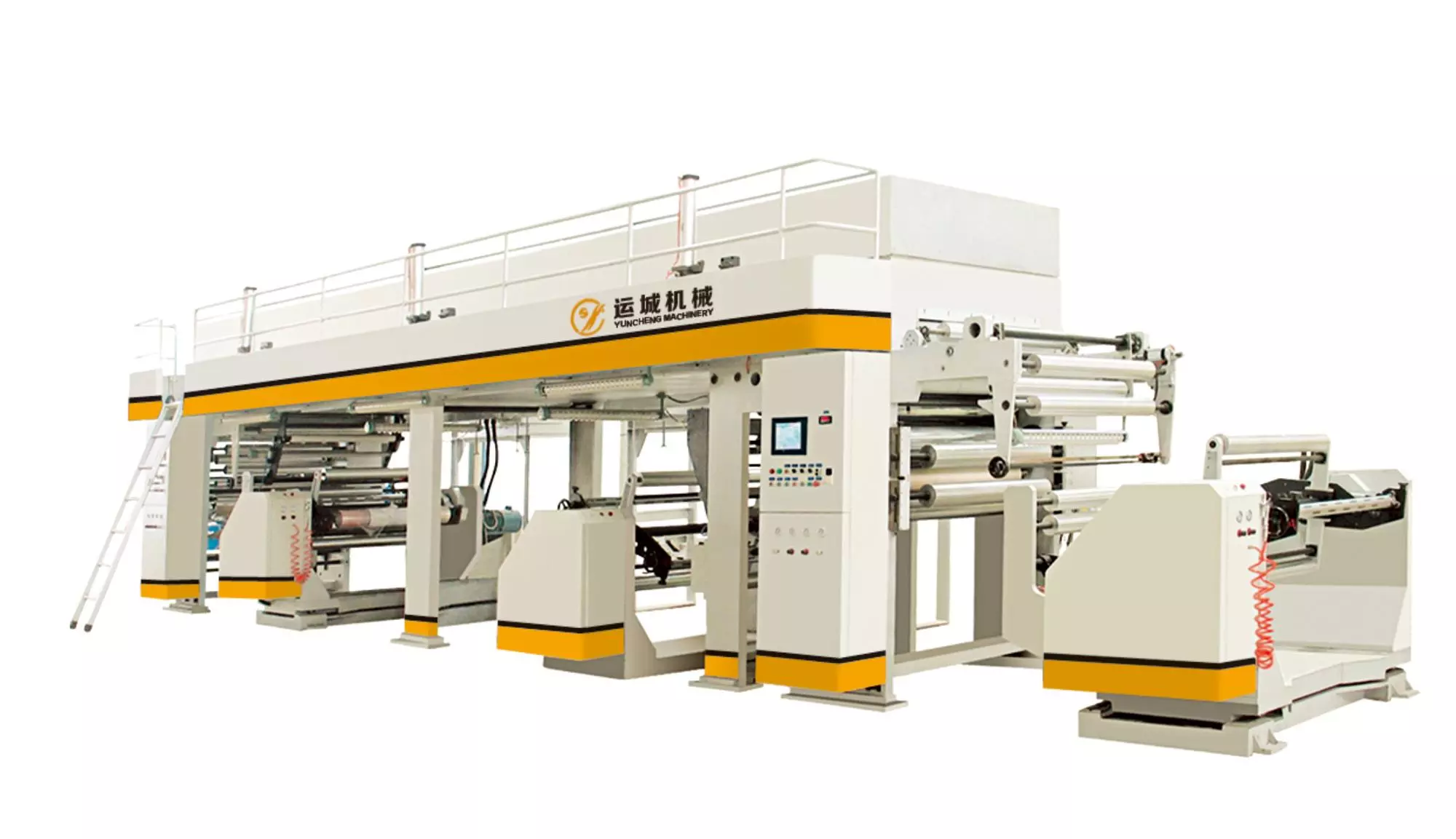

High-speed Dry-type Laminating Machine(Film laminator, film laminating machine)Description:
The machine is applicable to dry laminating the coiled materials like plastic-plastic, Al plastic, paper-plastic.
Its main characteristic are: complete machine with PLC controller, man-machine interface in operation, double frequency speed adjusting, two methods of rubberizing like mesh scraper and rubber-roller coating, two-station rotary-type winding units, rubber coating film photocell for web-guiding and with constant temperature. The drying tunnel guide roll runs automatically, featuring easy operation and advanced technology.
Main paremeters:
Sequence from left to right
Laminating width 800~1250mm
Max.Laminating. Speed 220m/min
The 1st Unwinder Dia. Φ800mm
The 2nd Unwinder Dia. Φ800mm
Rewind Dia. Φ800mm
Paper Core Dia. 3″
Coating roller dia. Φ210mm
Gluing pressure 500kg
Glue type(dry glue volume) Dry laminating bond
Coating volume 2~6g/m2
Solvent Ethyl Acetate
Solidify Volume 20~30%
Tension range 3-30kg
Tension control accuracy ±0.5kg
Oven Length 10800mm
Max. Drying temp. 100℃
Drying method Oil and Electricity
Cooling water consumption 3T/h ( 18~25℃, 0.3Mpa)
Laminating pressure 2000kg
Max. temp. of Laminating Roller 100℃
Total Power Approx 113KW (Exclude electricity power)
Overall Dimensions 15680×6500×4200mm
Net weight Approx.25000kg
The first unwinder material
PET 8~60μm BOPP 15~60μm PA 15~60μm CPP 18~60μm cellophane 20~30μm paper 30~80g/m2
The second unwinder material
PET 8~60μm BOPP 15~60μm aluminum Foil 6~40μm
paper 30~80g/m2 PE 20~180μm
Aluminum foil 6~40μm
