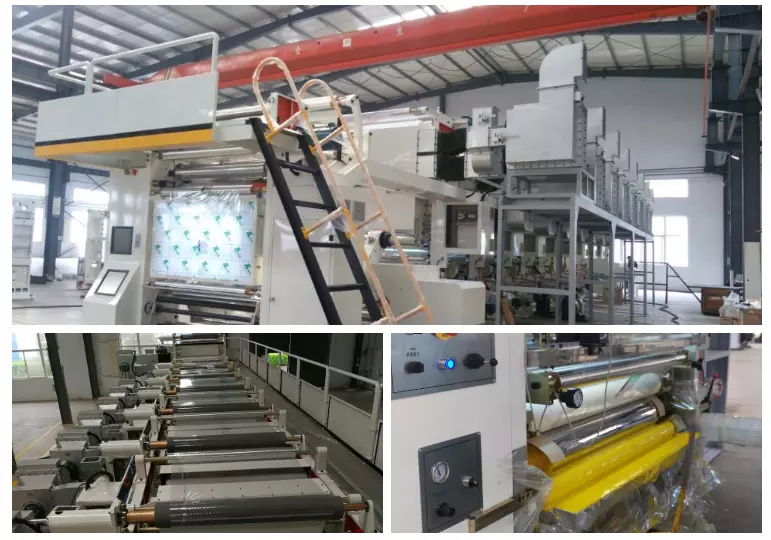

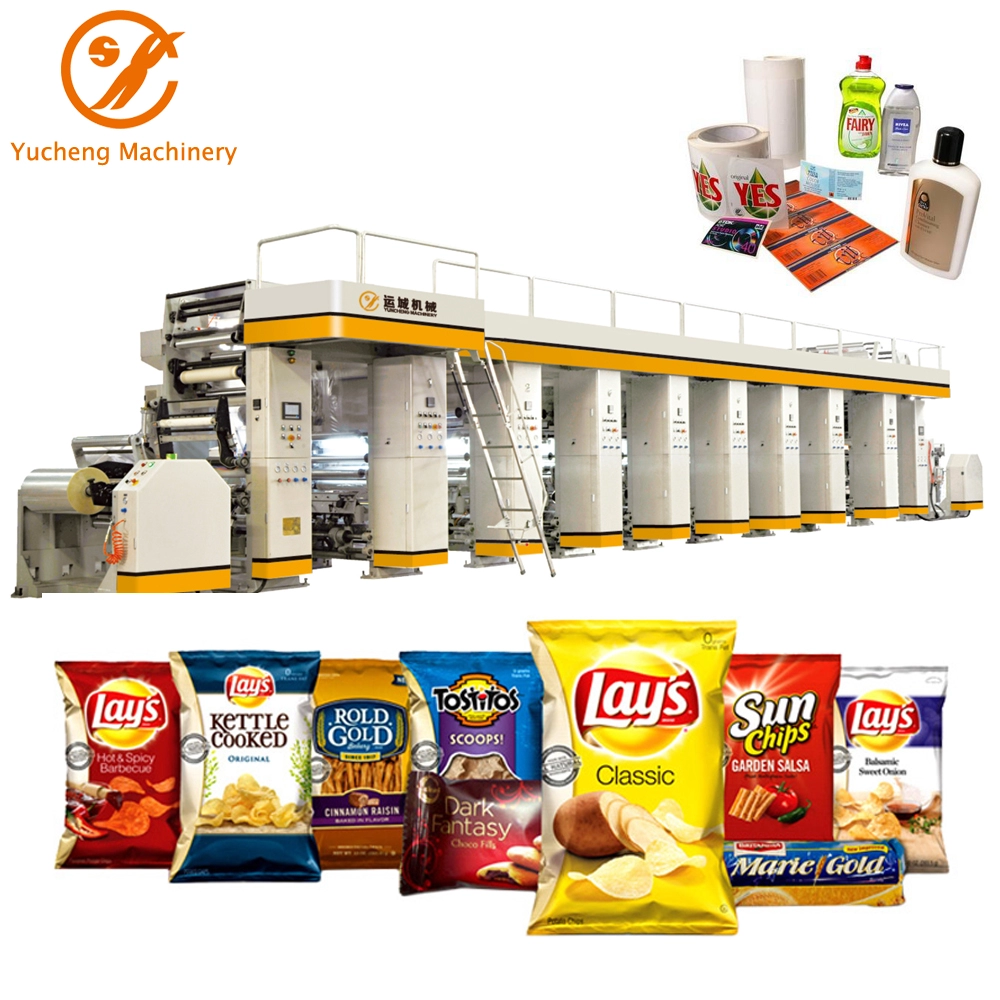

BOPP PVC PE OPP CPP Aluminum Foil Plastic Bag Rotogravure Printing Machine for Flexible Package
Product Description of Taiwan BOPP PVC PE OPP CPP Aluminum Foil Plastic Bag Rotogravure Printing Machine for Flexible Package
Rotogravure printing machine is suit for the cellophane paper, BOPP, PET, PVC, PE, aluminum foil, paper and so on, multicolor progression printing possesses of choiceness printing performance and roll material. It is used in all kinds of top grade printing abroad.
| Main Technical Data of Taiwan BOPP PVC PE OPP CPP Aluminum Foil Plastic Bag Rotogravure Printing Machine for Flexible Package | |
| Printing Sequence | From Left to Right |
| No. of Printing Color | 8 Colors |
| Max. Web Width | 1050mm |
| Max. Mechanical Speed | 220m/min (when plate cylinder dia. 170mm) |
| Max. Printing Speed | 200m/min (when plate cylinder dia. 170mm) |
| Plate Cylinder Diameter | 120-300mm |
| Register Accuracy | Longitudinal+/-0.1mm(auto.); Horizontal+/-0.1mm(Manu.) |
| Unwind/Rewind Diameter | 800mm |
| Tension Range | 3-30Kg (Full Load) |
| Tension Accuracy | +/-0.5Kg |
| Paper Core Diameter | 76mm(I.D.)x92mm(O.D.) |
| Air Pressure | 0.8Mpa |
| Printing Impression | 500Kg |
| Doctor Blade Oscillation | +/-5mm |
| Max. Splicing Speed | 200m/min |
| Dry Method | Steam |
| Cooling Water | Approx. 8T/h (2Kg/cm3) |
| Main Motor Power | 22Kw |
| Printing Material | PET 12-60μm/ BOPP 15-60μm |
| Net Weight | Approx. 48000Kg |
| Overall Dimensions | 20000x5150x4300mm |
