rotogravure printing machinery parts

ID:20091721738

Category: Print,Pack,Plastic Rubber & Plastics Products

FOB Price:US$ 100.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

rubber rollerrubber rollerscolor registration for machinemachine color registerdiaphragm pumpeye plashtop cone for cylindergravure cylinderrotogravure printing cylinderviscosity

Payment Method:

L/CT/T

Product Category

Print,Pack,Plastic > Rubber & Plastics Products

Trademark

Product Package

wooden box package

Specification

Place of Origin

Shanxi,China

Port

Any chinese sea port

Products Description

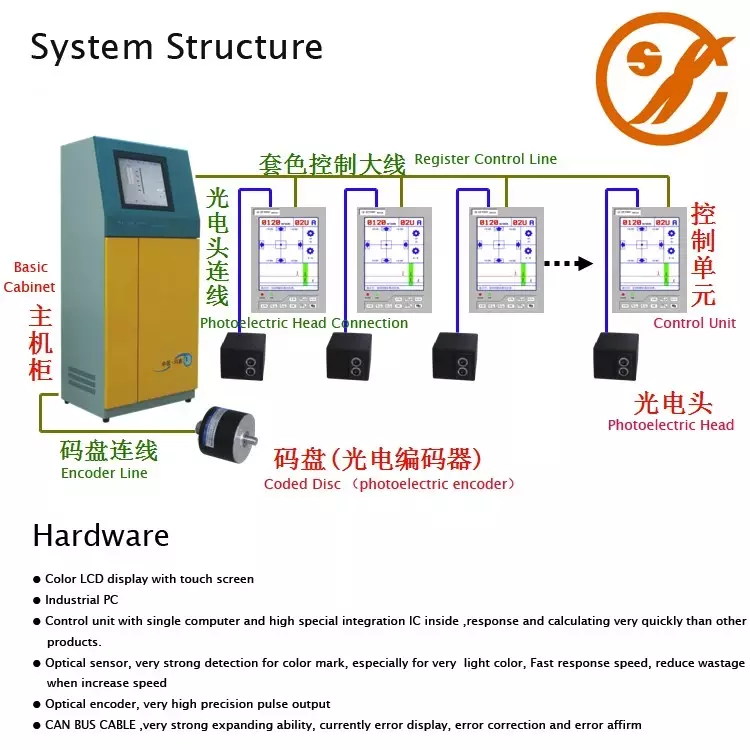

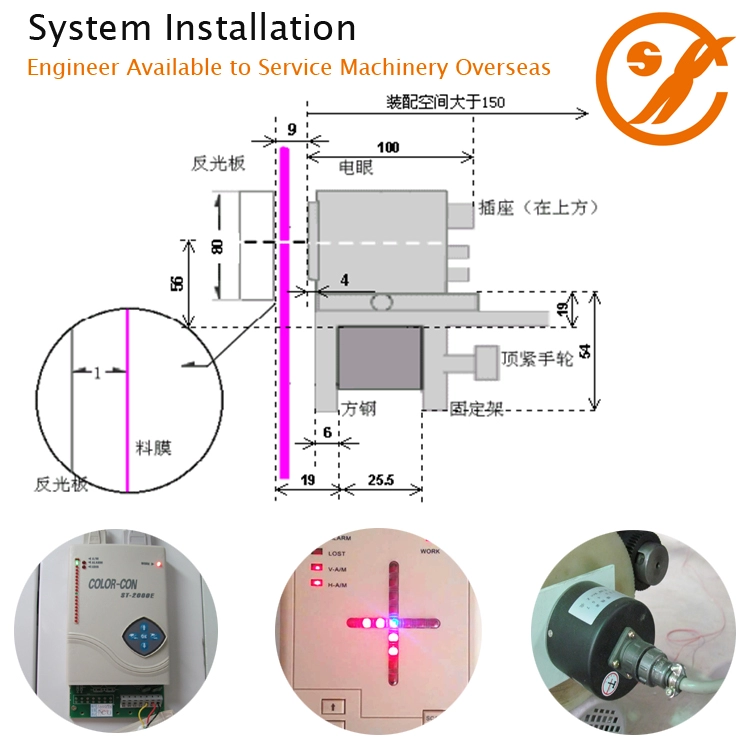

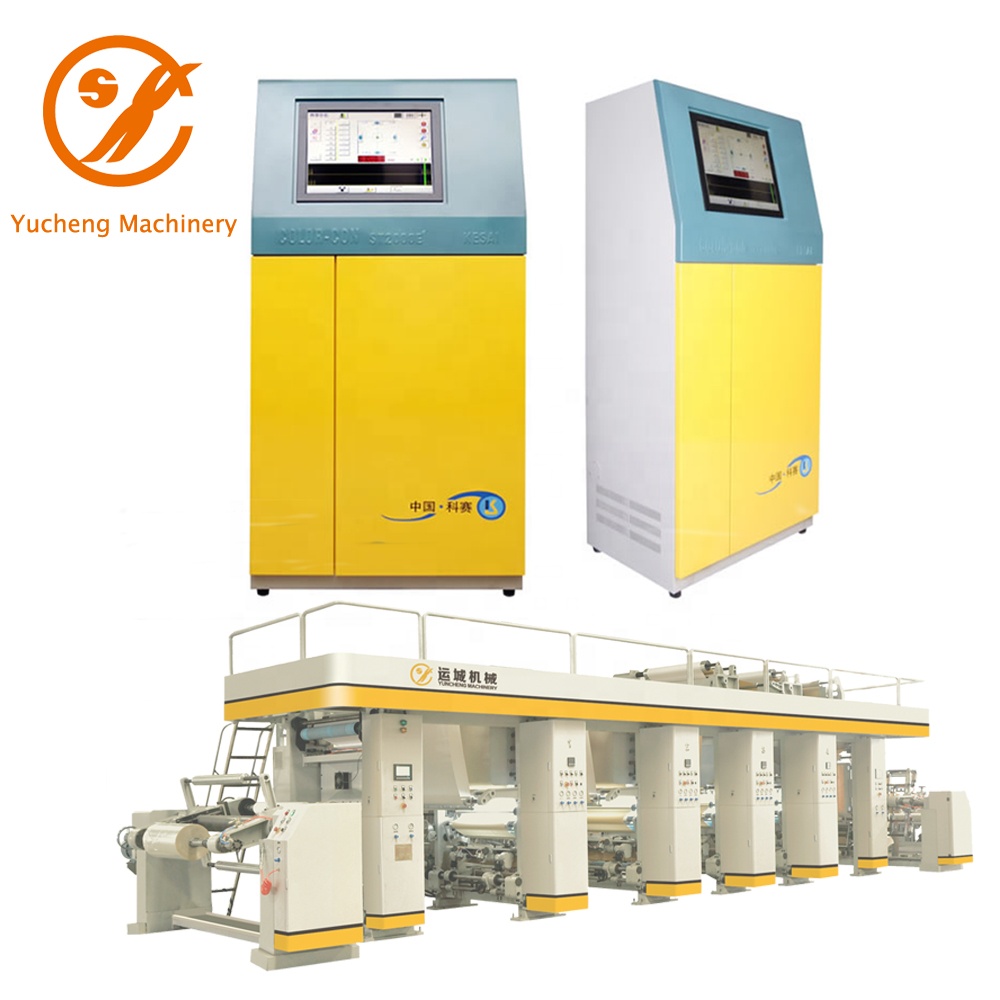

Printing machine color register control system

Printing computer register system is widely used in various machines. Based on a comprehensive cost-effective, we recommend Kesai brand printing omputer register system. Its manufacturing standards in full compliance with the CE certification. If the event of failure, you can easily buy spare parts anywhere in the world.

SPECIFICATIONS FOR KESAI ST3000 COLOR REGISTER CONTROL SYSTEM
Cylinder Circumference	200—2500mm
Printing speed	10m/min—1000m/min
Detection precision	Vertical：±0.01mm
Correction speed	Vertical：standard 1.0mm/sec.
Correction Precision	Vertical：±0.01mm；
Cylinder Error Correction	Vertical ：±9.99mm
Alarm	Vertical：0.1－0.9mm
Control Precision	Vertical：±0.1mm
Pre-setting	Vertical：＜10mm
Color mark	Vertical：±0.1mm
Power supply	AC220V±10% ,50HZ
Capacity	About 1000W
Environment	Temperature: 0－40℃， Humidity：20-80%RH( No dew)

Main function

1. Vertical control and horizontal control
2. Auto-address
3. Revers control(depend on machine)
Color mark horizontal, control-best for bag printing 4. OMK control-best for coating{±0.3mm(depend on machine) vertical only}
5. Second printing control-best for some special jobs
5. Jobs save &load
6.Pre-setting-reducing wastage and improving product output
7.Encoder testting-for encoder testing
8. Speed display and Chinese&English language

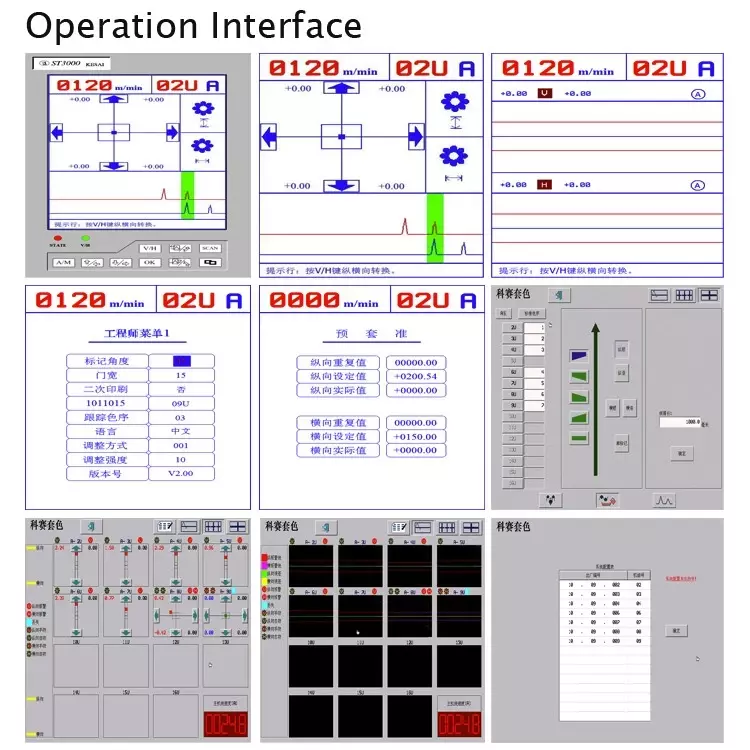

9. Error value display-very easy to know how much difference about register
10. Error curve display- best for checking machine stability.
11. Vertical and horizontal error display on control unit at same time, and it has study by itself.

Product Description

Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect. Due to the high precision blade manufacturing, durable degree is high, so it can greatly reduce the production cost and save the replacement or turning grinding blade time. This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.

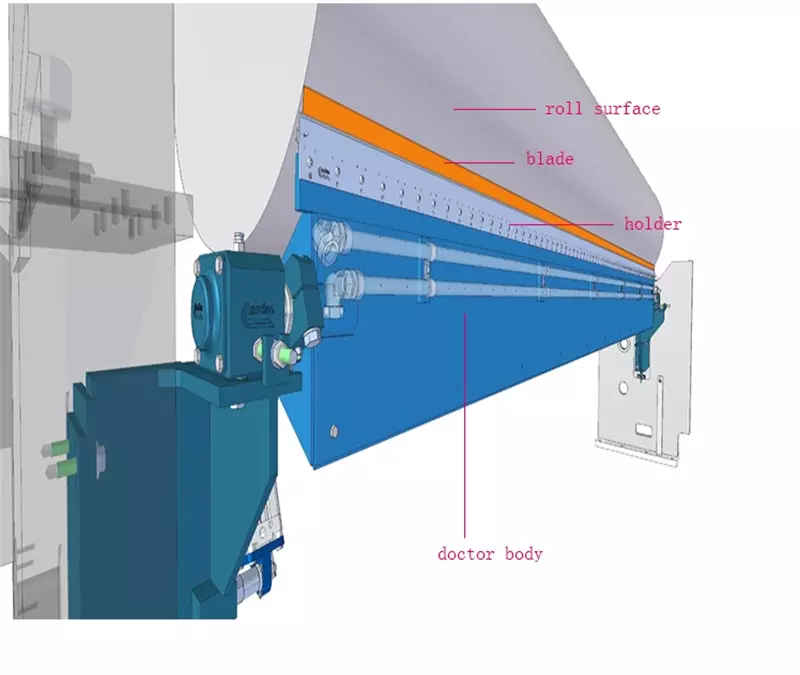

cylinder printing doctor blade for rotogravure printing machine

Gravure Printing Doctor Blade Technical Data Sheet

Level	Low Speed Blade	Middle Speed Blade	Above The Average	High Speed Blade
Speed	0-80m/min	0-120m/min	0-150m/min	0-180m/min
Material	T10	SK4	C100	20C

Doctor Blade Specification

Specification	Detail
Hardness	1960N/mm (580HV+/-15)
Edge Thickness	0.07mm~0.1mm
Edge Height	1.3mm
Blade Thickness	0.15mm~1.5mm
Blade Height	10-60mm
Length of Each Box	100m

Gravure Printing Doctor Blade Dimension

Regular Size

30 (40, 50, 60)x0.15

25 (30, 35, 40, 50, 60)x0.2

10x0.1

17 (30, 40, 50, 60)x0.3

60x0.4

50x0.5

Customized

Gravure Printing Doctor Blade Features

Feature	Detail
1	Good scraping effect and high printing quality
2	Good Elasticity and Strong layering feeling
3	Durable and long life

Application

Doctor balde is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.

Delivery

20 days after payment received

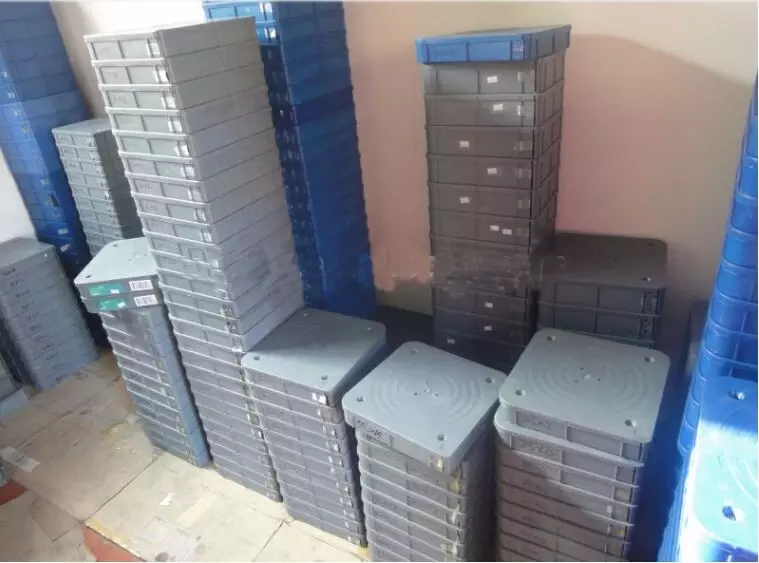

Packaging

Standard export carton, also can be packaged as customer's requirement

Detail: according to customer's requirement

cylinder printing doctor blade for rotogravure printing machine

Yuncheng Plate Making Printing Machinery Co.,Ltd

Business Type:Manufacturer

Online Supplier
