Product Description

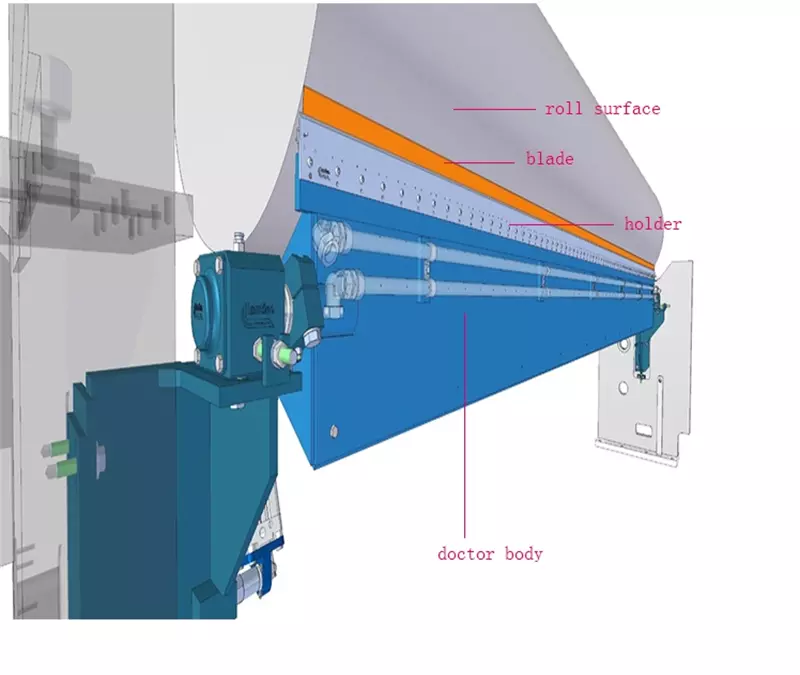

Our doctor blade is made of high quality steel, the technology process is unique and high precision manufacturing, blade is thin and elastic strength and high toughness, smoothness, good special and unique, self sharpening opening to application research, or before the work without turning and grinding, which can ensure the good contact with the surface of the plate, so as to achieve the best scraping effect. Due to the high precision blade manufacturing, durable degree is high, so it can greatly reduce the production cost and save the replacement or turning grinding blade time. This coating doctor blade is mainly used in gravure, flexo printing, also suitable for coating, color printing, embossing, metal printing, scraping, pulp industry. We can supply all the dimension according to your requirement.
Gravure Printing Doctor Blade Technical Data Sheet
Level | Low Speed Blade | Middle Speed Blade | Above The Average | High Speed Blade |
Speed | 0-80m/min | 0-120m/min | 0-150m/min | 0-180m/min |
Material | T10 | SK4 | C100 | 20C |
Doctor Blade Specification
Specification | Detail |
Hardness | 1960N/mm (580HV+/-15) |
Edge Thickness | 0.07mm~0.1mm |
Edge Height | 1.3mm |
Blade Thickness | 0.15mm~1.5mm |
Blade Height | 10-60mm |
Length of Each Box | 100m |
Gravure Printing Doctor Blade Dimension
Regular Size |
30 (40, 50, 60)x0.15 |
25 (30, 35, 40, 50, 60)x0.2 |
10x0.1 |
17 (30, 40, 50, 60)x0.3 |
60x0.4 |
50x0.5 |
Customized |
Gravure Printing Doctor Blade Features
Feature | Detail |
1 | Good scraping effect and high printing quality |
2 | Good Elasticity and Strong layering feeling |
3 | Durable and long life |
Application
Doctor balde is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.
Delivery
20 days after payment received
Packaging
Standard export carton, also can be packaged as customer's requirement
Detail: according to customer's requirement
