PRODUCT INTRODUCTION

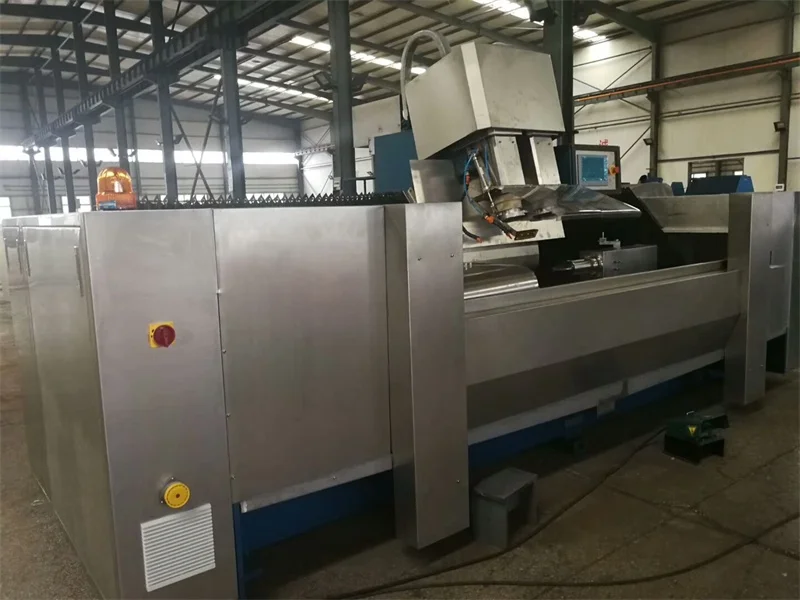

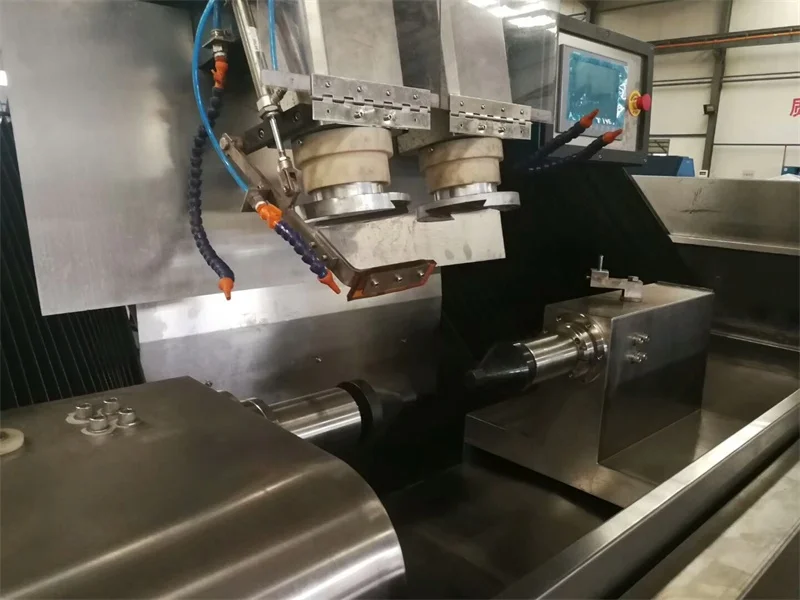

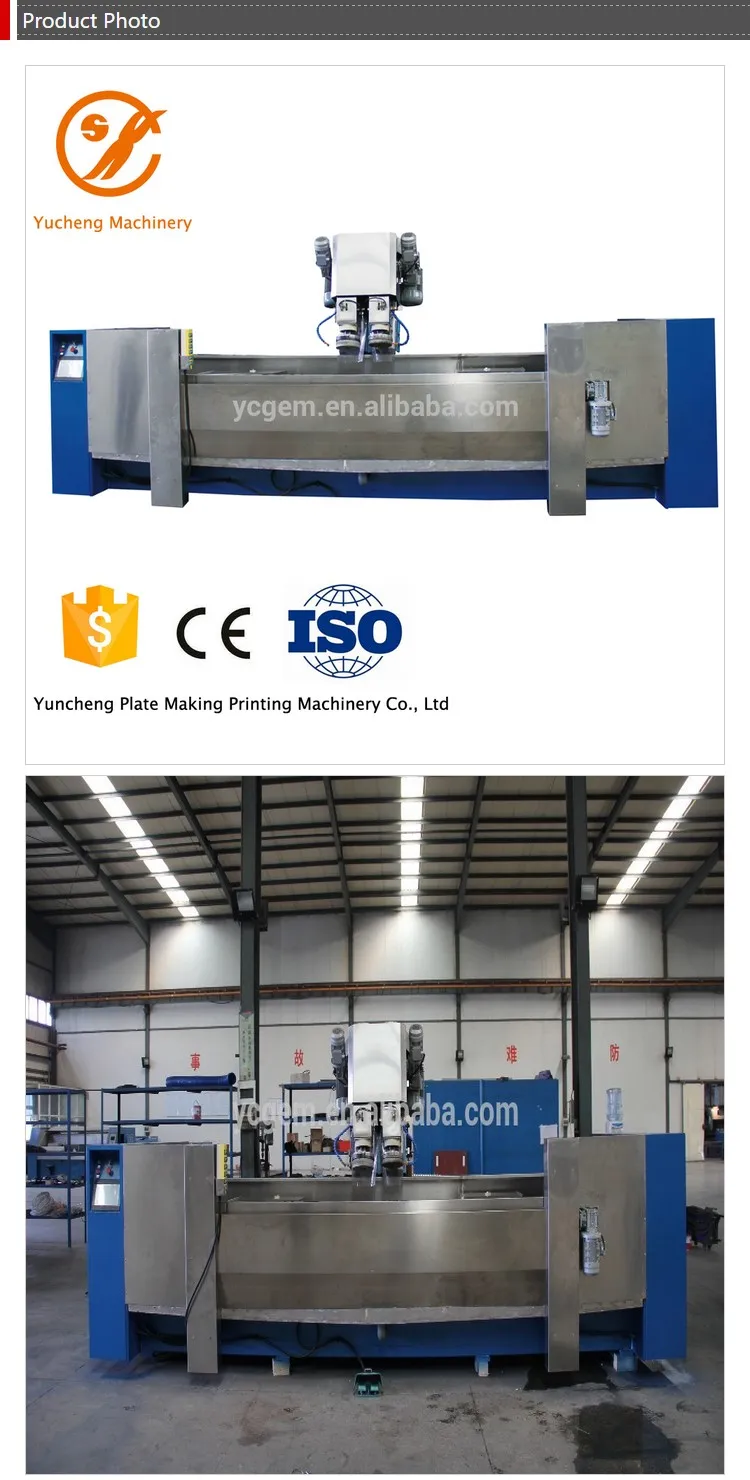

Grinding machine is an important procedure in the entire plate-making equipment; Grinding has rough grinding and fine grinding. And it is also necessary equipment following steel cylinder or copper coating cylinder. For steel cylinder, after grinding, this can meet the requirement of plating finish, and then go to the next electroplating process. For copper coating cylinder, grinding not only increase the surface finish, but also can repair surface defects
caused by uneven of copper coated with current.After setting parameters, the machine adopts one-click operation, which can directly implement grinding action, easy operation
parameters of grinding machine | |
L*W*H | 4700*1750*2200 |
Diameter | 120-500mm |
Cylinder max length | 1500mm |
power | 3*380VAc 50/60Hz |
Rated Power | 15.6kw |
Grinding head max speed | 600 |
Cylinder max speed | 300 |
Main Features
1) All use 304stainless staal which exposes to water.
2) 10inches colour touch-screen interface.
3) with high quality material in the linear guide,ensure lubrication and non-leakage.
4) one-touch operation,improve the production effectively.
5) automatic wiper blowing device,to ensure that cylinder dry after grinding.
