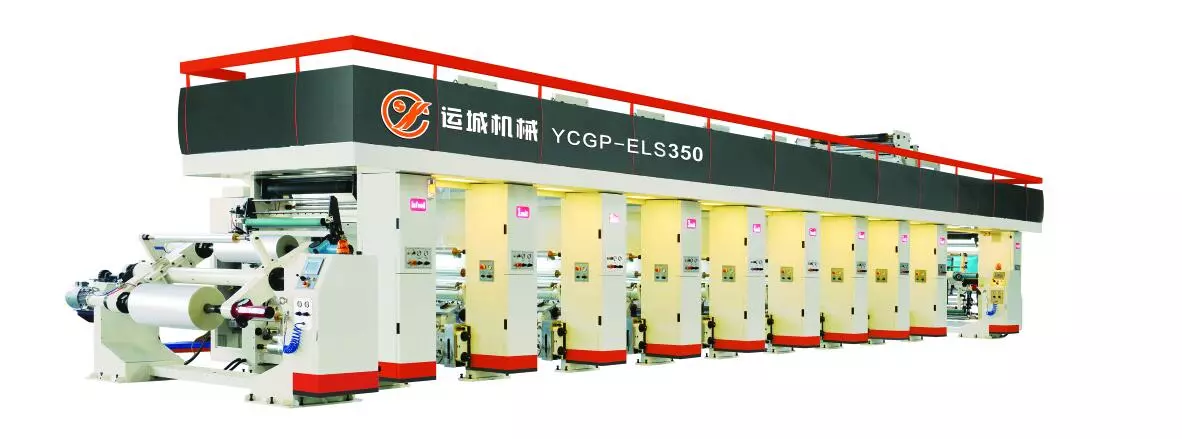

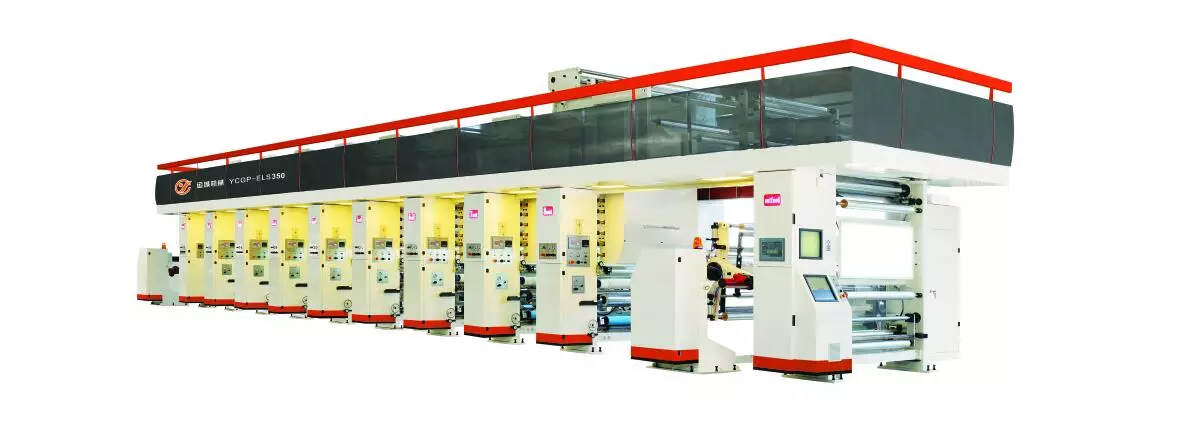

Multicolor rotogravure printing machine ELS MLS servo motor dirve machine

ID:20091922069

Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 200000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

gravure printing machineprinting machineELS gravure printing machineMls roto printing machinemulticolor printing machineintaglio9 color printing machineauto register printing machinefood package film printing bopp opp film printing machine

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > Packaging & Printing Machine

Trademark

Product Package

safe sea package

Specification

Place of Origin

Shanxi,China

Port

Any chinese sea port

Product Paramenters

Film running direction from unwind to rewind	From left to right
Printing colors	8
Max. material width	1250mm
Max .mechanical speed	200m/min （版径cylinder dia.≥Φ175mm）
Unwinding diameter	Φ800mm
Rewinding diameter	Φ800mm
Accuracy of registration	Horizontal≤±0.1mm (auto) （constant speed）Longitudinal≤±0.1mm (auto)（constant speed）
Tension range	3~25kg
Accuracy of tension	Unwind and rewind±0.3kg Traction ±0.3kg
Paper core diameter	Φ76mm× Φ92mm
Pressure of rubber rollers	380kg
Rubber roller hardness	（A）70°~75°
Diameters of cylinders	Φ120mm~Φ300mm
Length of cylinders	1000-1350mm
Reciprocation of doctor blades	±5 mm
Pressure of air source	0.6Mpa≤P≤1.0Mpa
Maximum temperature of drying chambers	80℃
Recycling rate of hot air	0~50%
Accuracy of temperature controlling	±2℃
Heating style	electricity or steam or gas
Maximum hot air speed in drying chambers	25m/s
Film length in drying chambers	1.6m 2m for last color
Printing materials	PET：12~60μm BOPP： 20~60μm CPP：20~60μm OPP： 20~60μm cellophane：20~30μm
