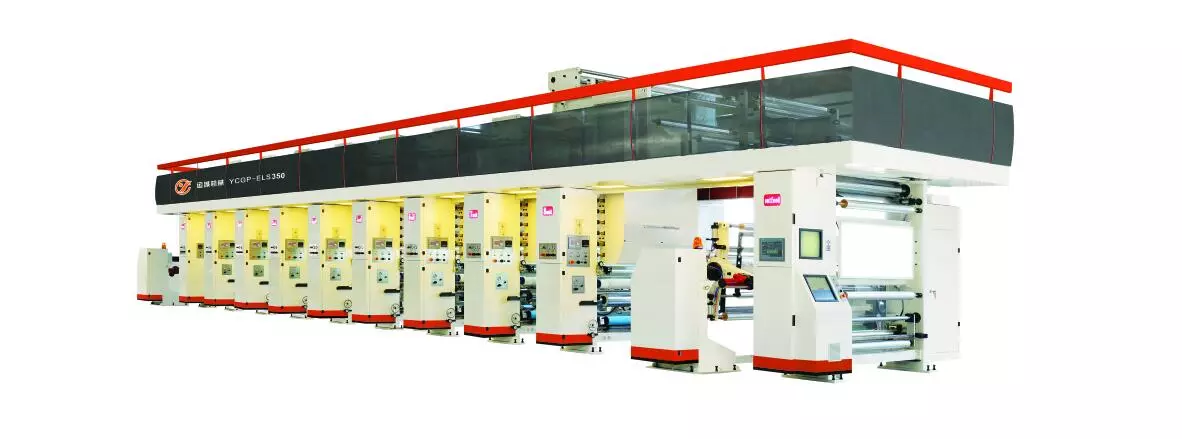

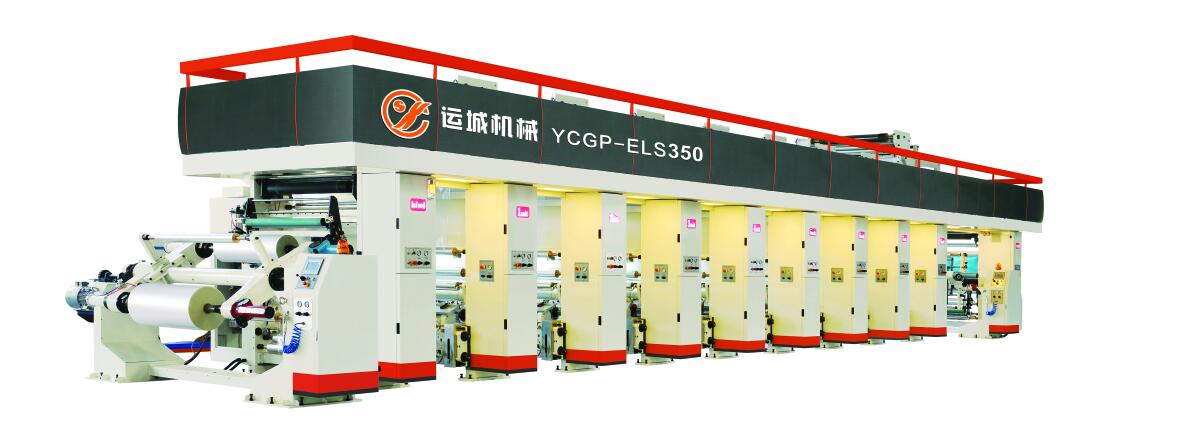

350m/min high speed rotogravure printing machine

ID:20091922087

Category: Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 400000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

high speed roto machine350m/min printing machinehigh speed printing machineauto high speed roto machinegravure printing machine10 color gravure printerauto registration printingkesai registration printerprinting pressroto printing machine

Payment Method:

L/CT/T

Product Category
Manufacturing & Processing Machinery > Packaging & Printing Machine
Trademark
Product Package
safe sea package
Specification
Place of Origin
Shanxi,China
Port
Any chinese seaport
Product Paramenters
 Film running direction from unwind to rewind
From left to right
 Printing colors
8
Max. material width
1250mm
Max .mechanical speed
200m/min (版径cylinder dia.≥Φ175mm)
Unwinding diameter
Φ800mm
Rewinding diameter
Φ800mm
Accuracy of registration
Horizontal≤±0.1mm (auto) (constant speed)Longitudinal≤±0.1mm (auto)(constant speed)
 Tension range
3~25kg
 Accuracy of tension
Unwind and rewind±0.3kg
Traction ±0.3kg
Paper core diameter
Φ76mm× Φ92mm
Pressure of rubber rollers
380kg
Rubber roller hardness
(A)70°~75°
Diameters of cylinders
Φ120mm~Φ300mm
Length of cylinders
1000-1350mm
Reciprocation of doctor blades
±5 mm
Pressure of air source
0.6Mpa≤P≤1.0Mpa
Maximum temperature of drying chambers
80℃
Recycling rate of hot air
0~50%
Accuracy of temperature controlling
±2℃
Heating style
 electricity or steam or gas
Maximum hot air speed in drying chambers
25m/s
Film length in drying chambers
1.6m 2m for last color
Printing materials
PET:12~60μm BOPP: 20~60μm

CPP:20~60μm OPP: 20~60μm

cellophane:20~30μm

ELS Machine Main features

1.Independent disc type rotary turret with double working positions and wallboard
2.Two unwinding shafts adopt independent active unwind style
3.Automatic web splicing with alarming, the new web will rotate and the pre-drive speed is synchronized with the speed of the machine.
4.The synchronous strip makes the transfer more convenience and little noise
5.Double-cylinder consists of steel and rubber roller
6.The doctor assembly is pneumatic controlled and can be adjusted by a handle in three directions
7.Remote service
8.Separate drive motor inverter
9.Each unit equipped with separate drying system
10.Touch HMI
11.Energy saving and friendly environment

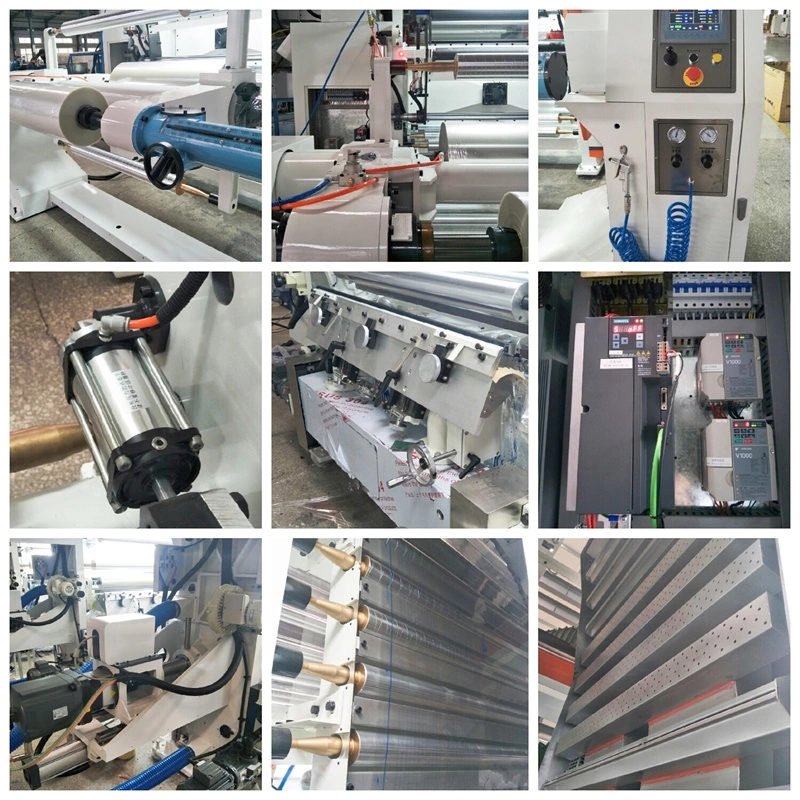

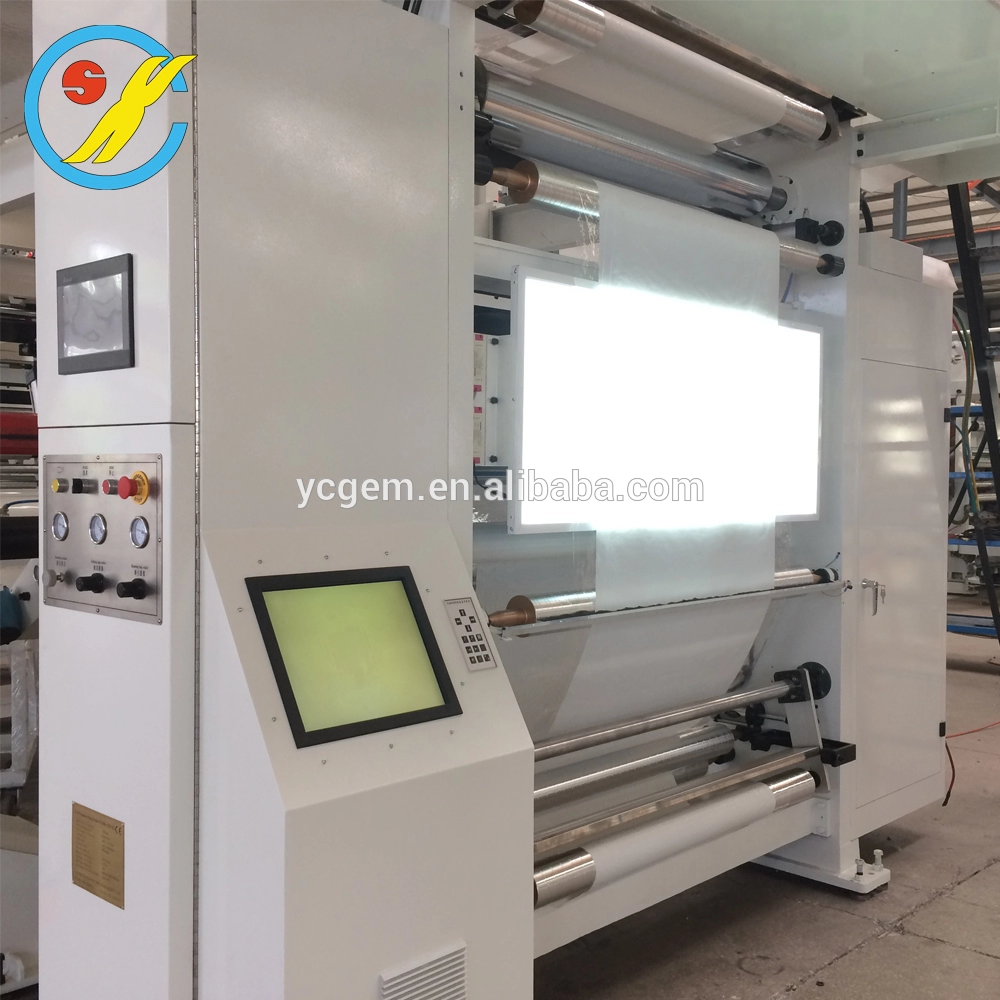

Details Images

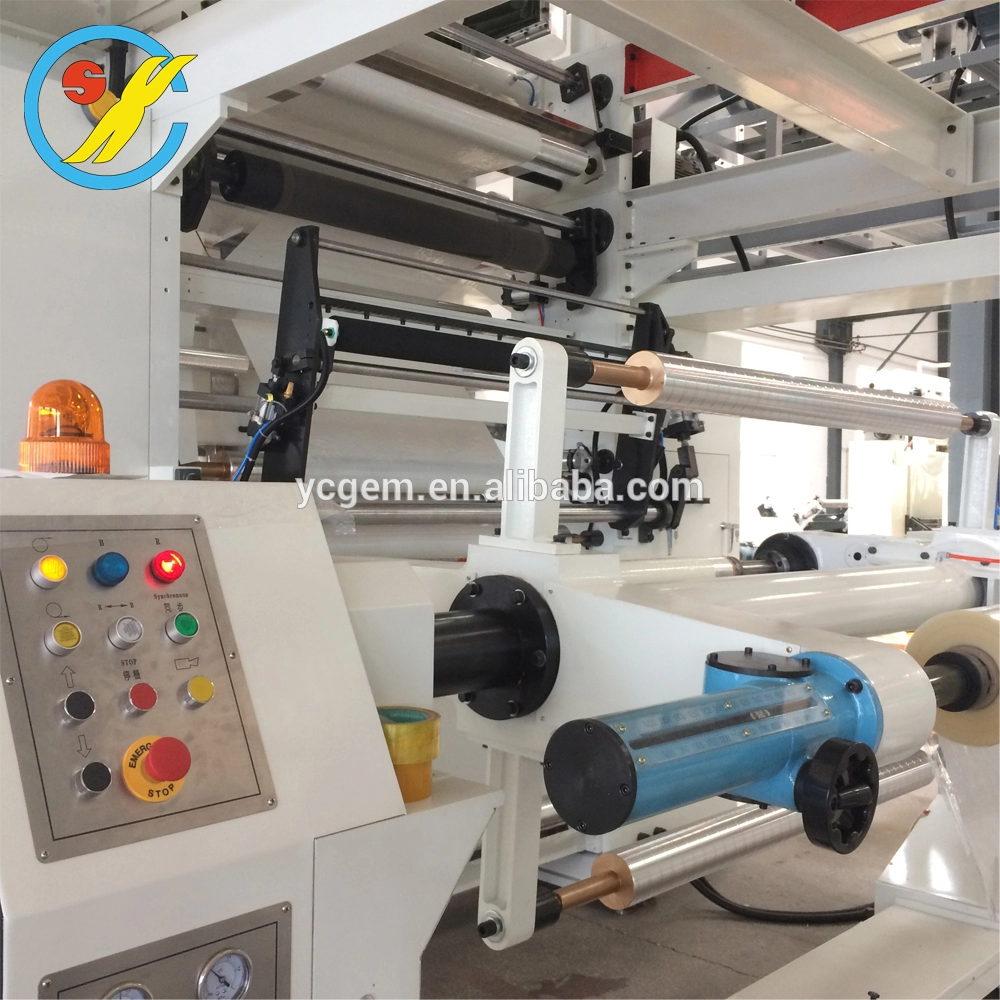

Rotogravure printing machine structures:
- Unwinding unit
- Infeeding part
- Printing part
- Drying part
- Cooling part
- Outfeeding part
- Rewinding unit

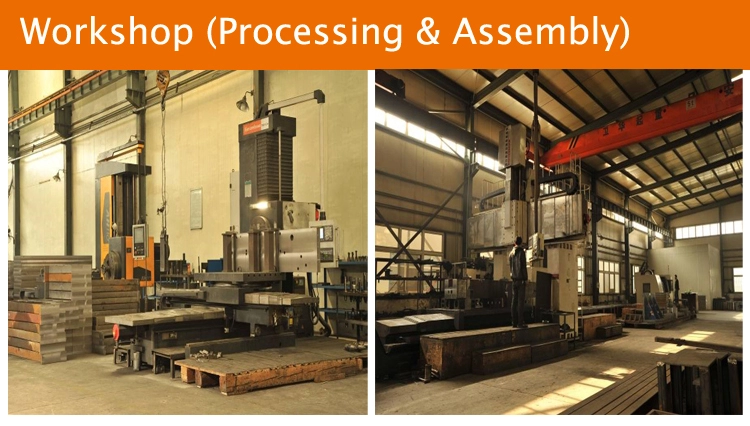

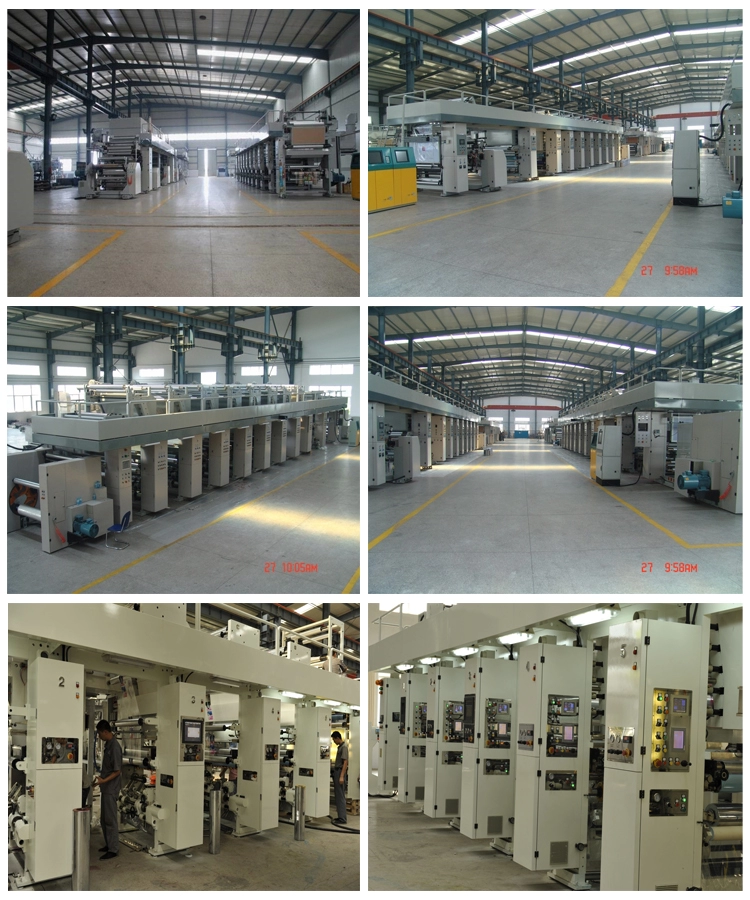

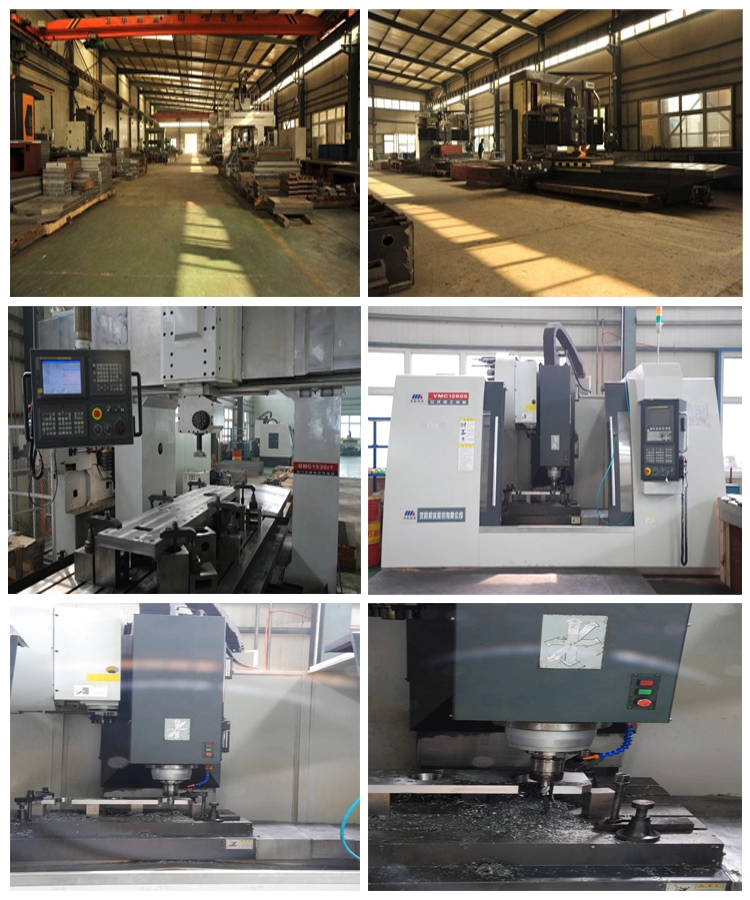

Process workshop
Exhibition

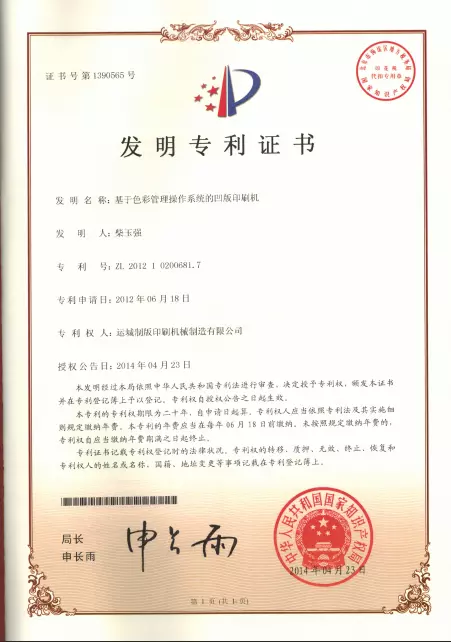

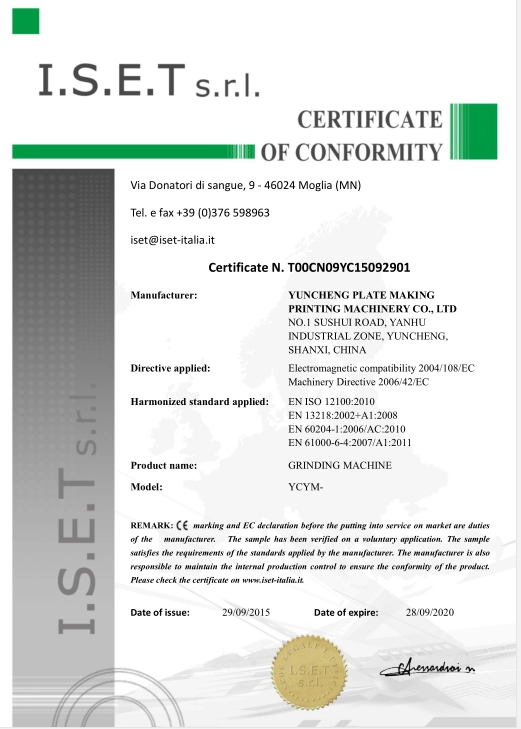

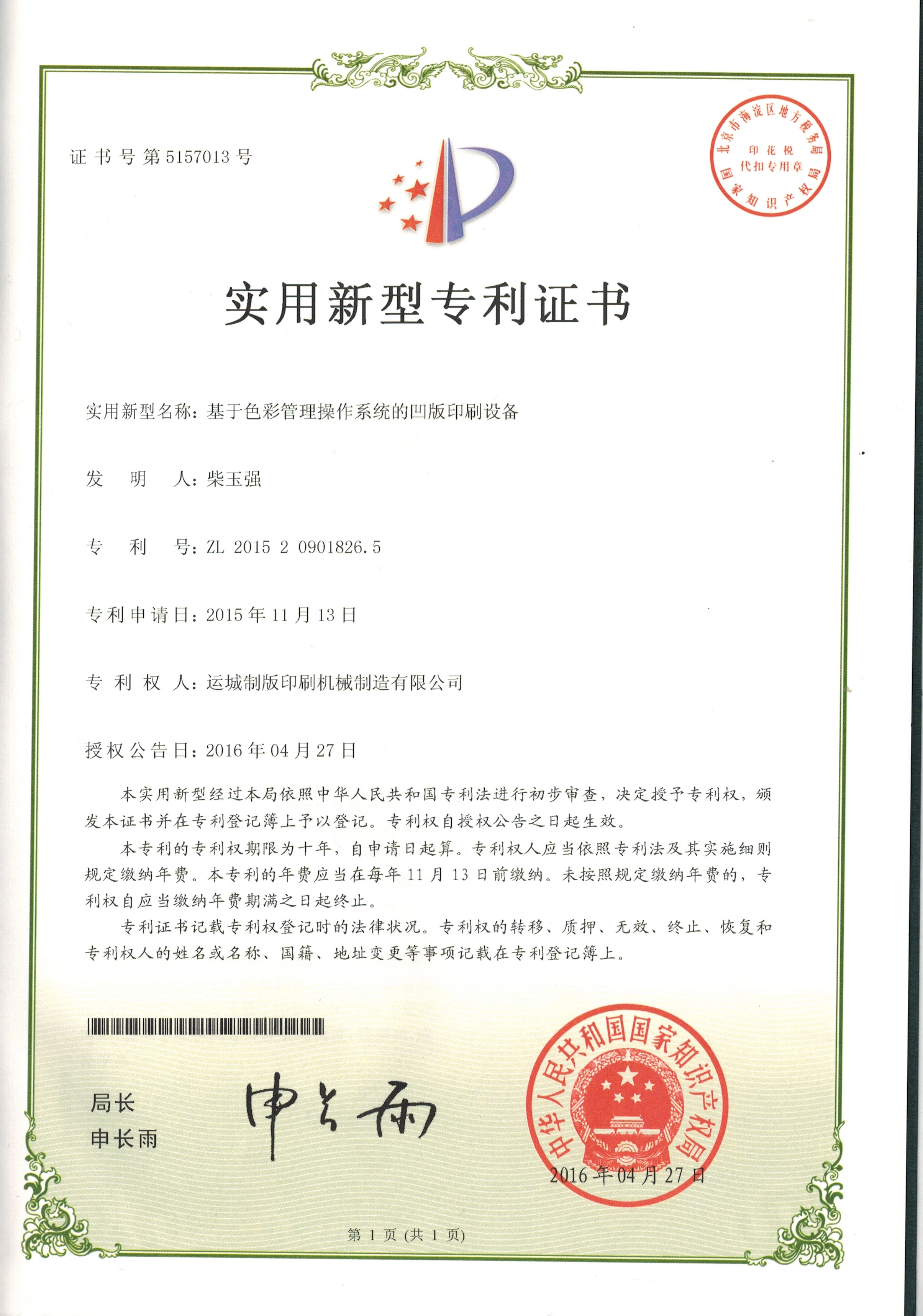

Certifications

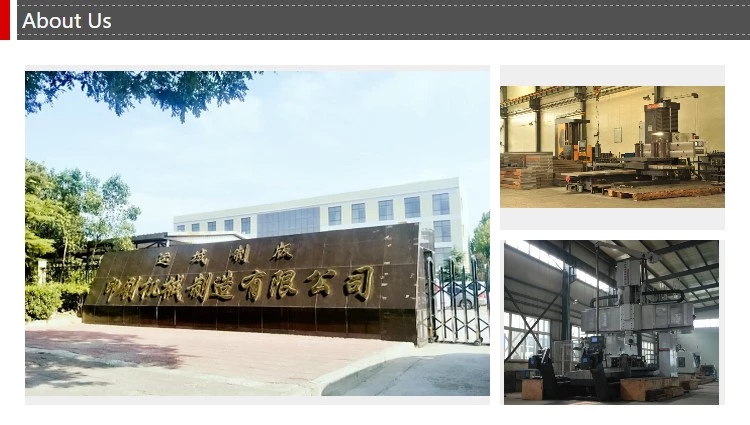

Company Profile
Company brief introduction
Yuncheng Plate Making Printing Machinery Co, Ltd is subject to the Shanxi Yuncheng Plate Making Group, and is a manufacture enterprise that produces the printing equipment. The main product has mainly three series: Rotogravure Printing Machine, Laminating Machine and Slitting Machine. And we have obtained the patents in technical reform and innovation terms, and have been input the production line. Our products are mainly distributed to domestic major economic center such as Guangdong, Shanghai, Qingdao, Tianjin, Hangzhou, Chengdu and so on, in the leading the domestic market while our sales network also involved to the Russia, Mexico, Turkey, Brazil, Egypt, South Africa, Indonesia, Philippines, Thailand, Vietnam, Pakistan, Bengal, India and so on. We widely invite domestic famous academy's specialist to company for technical guidance and we have the group of professionals that specialized in soft development, automatic design, which can meet the customer's need of equipment and technology solution. Intensifying enterprise management, improving the enterprise efficiency, aiming to extend gravure plate industry, we continually enlarge investment, attract talented personnel, and introduce advanced technology. At present, our company has become a large enterprise of plate making equipments and gravure printing machinery equipment.
