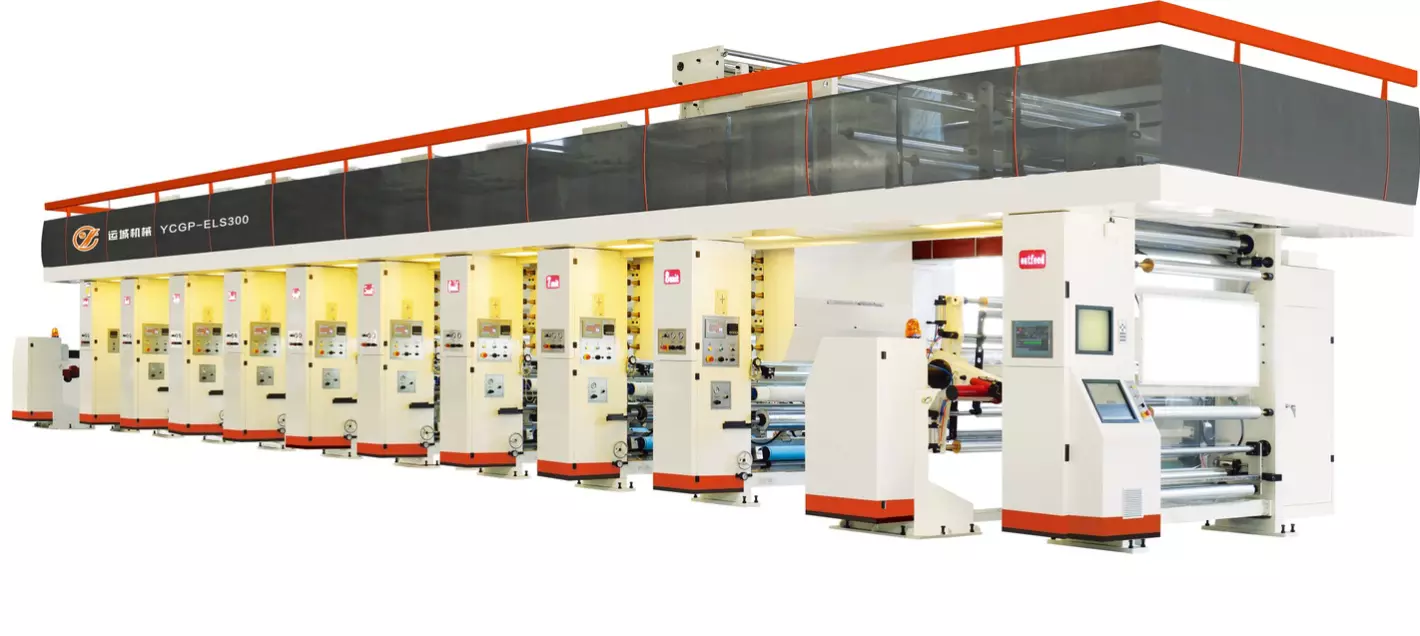

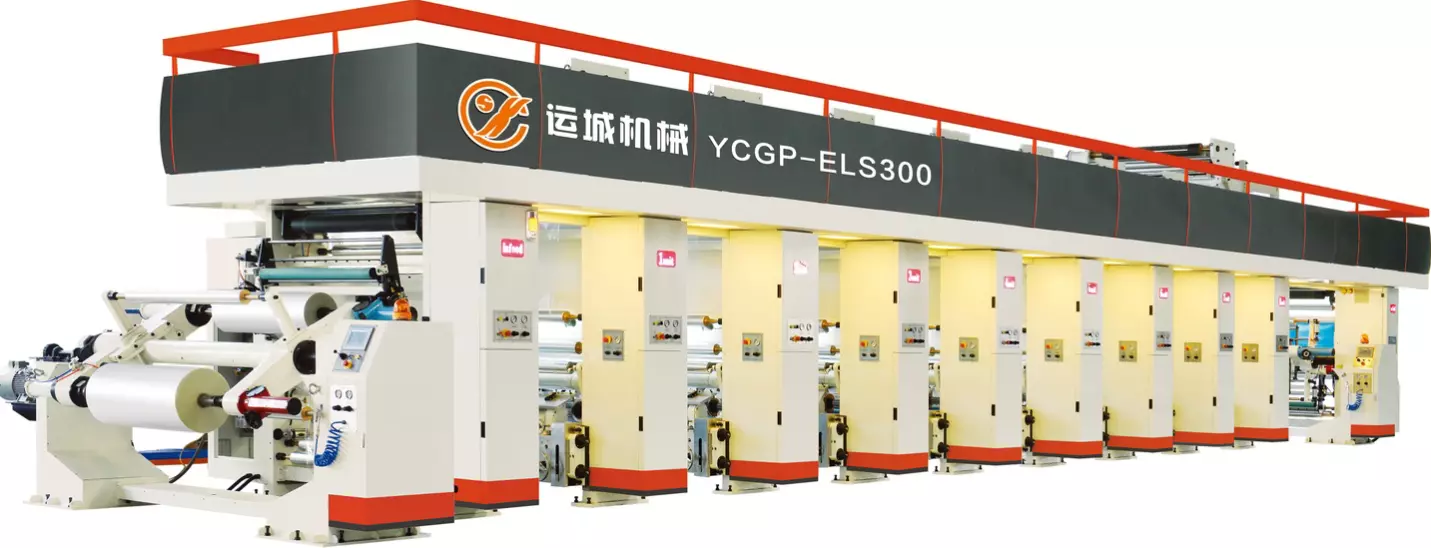

rotogravure printing machines

ID:20091922089

Category: Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 200000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

printing pressprinting machinefood pouch package printingtipping paper printing pressroto gravure machineprinting machine partsprinting machinerywater label printing machineflexipackage printing gravure printing machines

Payment Method:

L/CT/T

Product Category

Manufacturing & Processing Machinery > Packaging & Printing Machine

Trademark

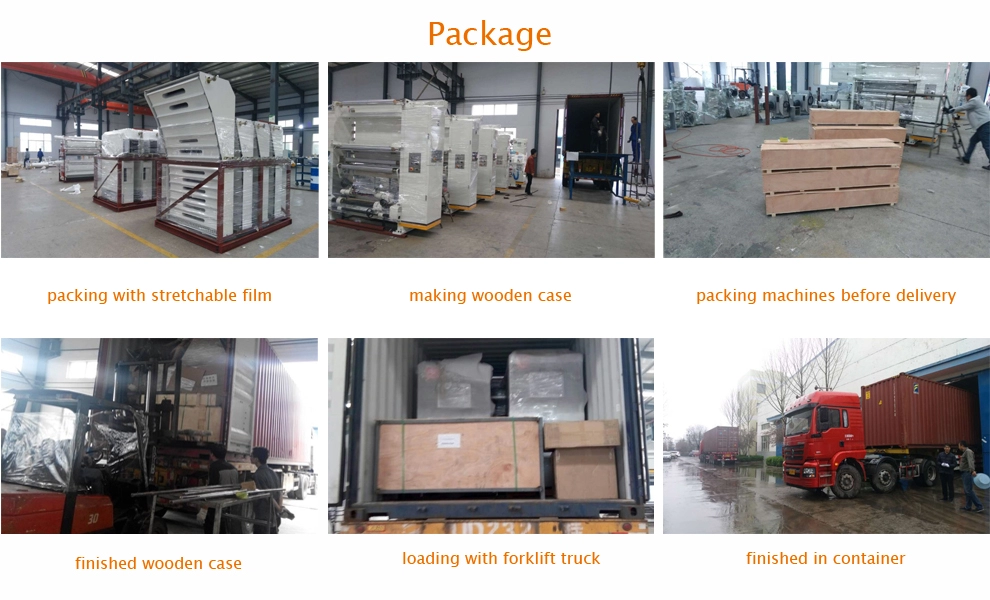

Product Package

sea safe package

Specification

Place of Origin

Shanxi,China

Port

Any chinese seaport

Product description

Application:

Rotogravure printing machine used to print multi-color on different kinds of films like OPP,BOPP,PET,PVC,PE,PAPTER and Aluminum foil etc.One time ,Continuous printing

PET:12~60μm BOPP: 20~60μm

CPP:20~60μm OPP: 20~60μm

cellophane:20~30μm

Main parameters:

Film running direction from unwind to rewind	From left to right
Printing colors	1-14
Max. material width	1250mm
Maximum printing speed	200/250/300/350 m/min
Unwinding /rewinding diameter	800mm
Rewinding and unwinding reels chucking style	Pneumatic cone top chucking reels
Accuracy of registration	Longitudinal/Horizontal ±0.1mm
Tension range	3~28kg
Paper core diameter	Φ76mm× Φ92mm
Diameters of cylinders	Φ120mm~Φ300mm
Length of cylinders	1000-1350mm
Reciprocation of doctor blades	±5 mm
Recycling rate of hot air	0~50%
Heating style	electricity
Space between units	1.7m
Power supply	3-phase,50Hz,380V±10%
Machine dimension	23950x4850x4000mm (10 color)
Machine power	168kw+279kw (10 color)
Machine weight	52T (10 color)
