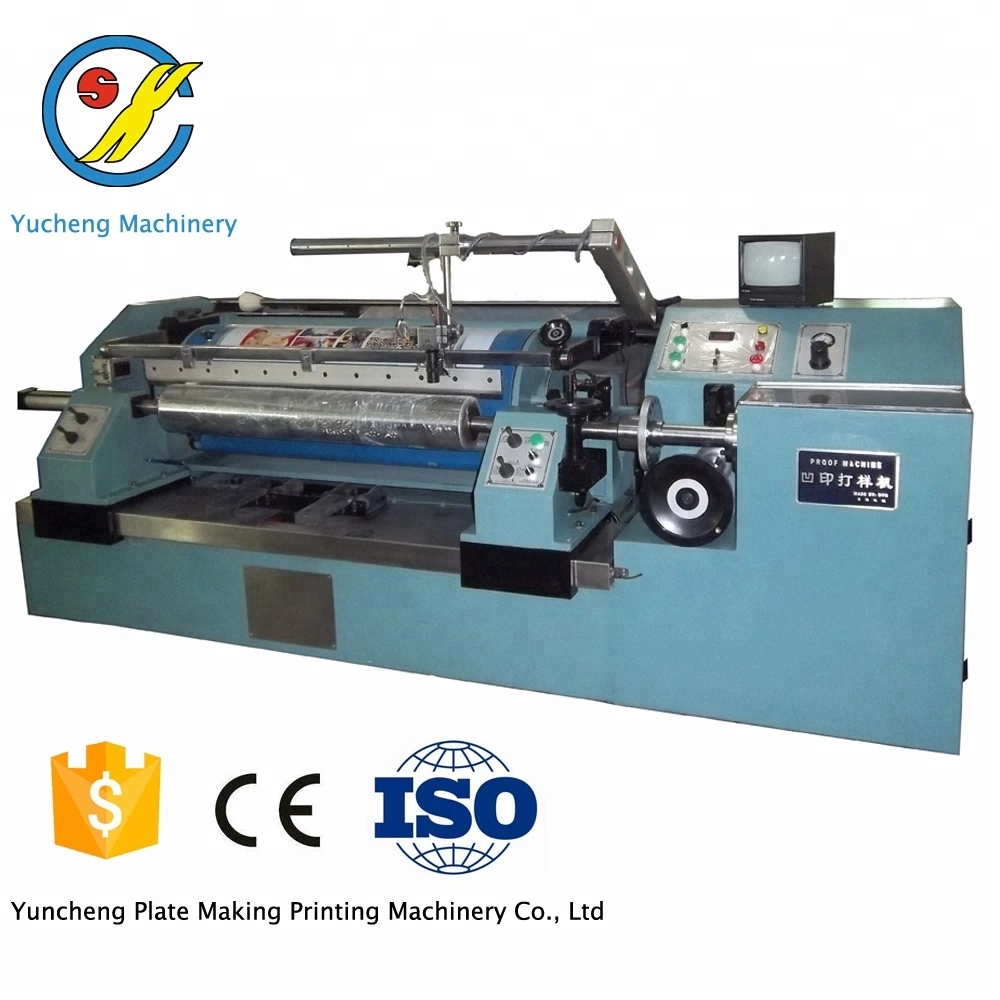

Proofing machine is especially designed for rotogravure cylinders. The machine not only has the economical and practical features of Japanese style, but also changes the car-tridge movement from roller linear bearings to linear rail, it solves the non-synchronization problem of cartridge forwarding and backing of some patternmakers, particularly local patternmakers. The electrical improvement makes the operation more easier and effective
SPECIFICATIONS FOR YCR1250 PROOFING MACHINE | |||
Max. Diameter | 320mm | ||
Min. Diameter | 110mm | ||
Max. Length | 1350mm | ||
Min. Length | 400mm | ||
Proof Speed | 20-60m/min | ||
Proof Pressure | 1-2 Tons | ||
Fine Turning Range | -20mm~20mm | ||
Drum Diameter | 500mm | ||
Drum Length | 1400mm | ||
1. High efficiency : highly integrated module enhance the automation, increasing the efficiency by 20%-30%.
2. High performance printing :the pressure between cartridge and roller, accumulator system has been improved greatly, making it possible for more than 5% dotting to print.
3. The adjustment of cartridge stroke, open & close of tail parts can be controlled automatically. And the cartridge and roller is kept in the same horizontal line, preventing the swing problem.
