Manufacturing & Processing Machinery Packaging & Printing Machine
MOQ:1.00 Piece(s)
Good quality Mature productProfessional manufacture
L/CT/T
Condition:New
Type:Proofing Machine
Automatic Grade:Automatic
Place of Origin:China
Brand Name:Yuncheng Plate Making
Model Number:YCR1250
Voltage:380V
Power(W):4.45KW
Dimension(L*W*H):3.4*2.2*1.6m
Weight:4500KG
Certification:CE ISO
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:1 Year
Supply Ability:5 Set/Sets per Month
Packaging Details:Wooden case
Port:Tianjin
Lead Time :30 days after deposit

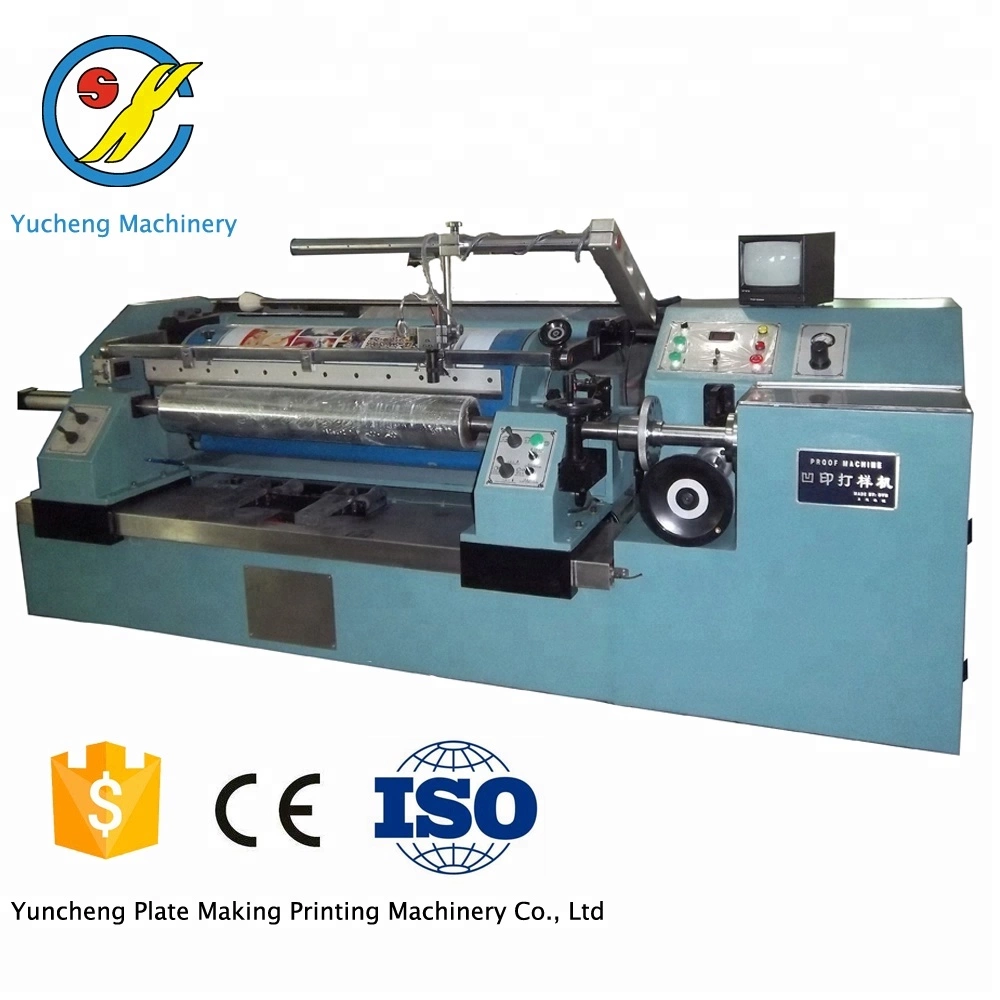

Proofing machine is especially designed for rotogravure cylinders. The machine not only has the economical and practical features of Japanese style, but also changes the car-tridge movement from roller linear bearings to linear rail, it solves the non-synchronization problem of cartridge forwarding and backing of some patternmakers, particularly local patternmakers. The electrical improvement makes the operation more easier and effective
SPECIFICATIONS FOR YCR1250 PROOFING MACHINE | |||
Max. Diameter | 320mm | ||
Min. Diameter | 110mm | ||
Max. Length | 1350mm | ||
Min. Length | 400mm | ||
Proof Speed | 20-60m/min | ||
Proof Pressure | 1-2 Tons | ||
Fine Turning Range | -20mm~20mm | ||
Drum Diameter | 500mm | ||
Drum Length | 1400mm | ||
1. High efficiency : highly integrated module enhance the automation, increasing the efficiency by 20%-30%.
2. High performance printing :the pressure between cartridge and roller, accumulator system has been improved greatly, making it possible for more than 5% dotting to print.
3. The adjustment of cartridge stroke, open & close of tail parts can be controlled automatically. And the cartridge and roller is kept in the same horizontal line, preventing the swing problem.
Shipment & Payment

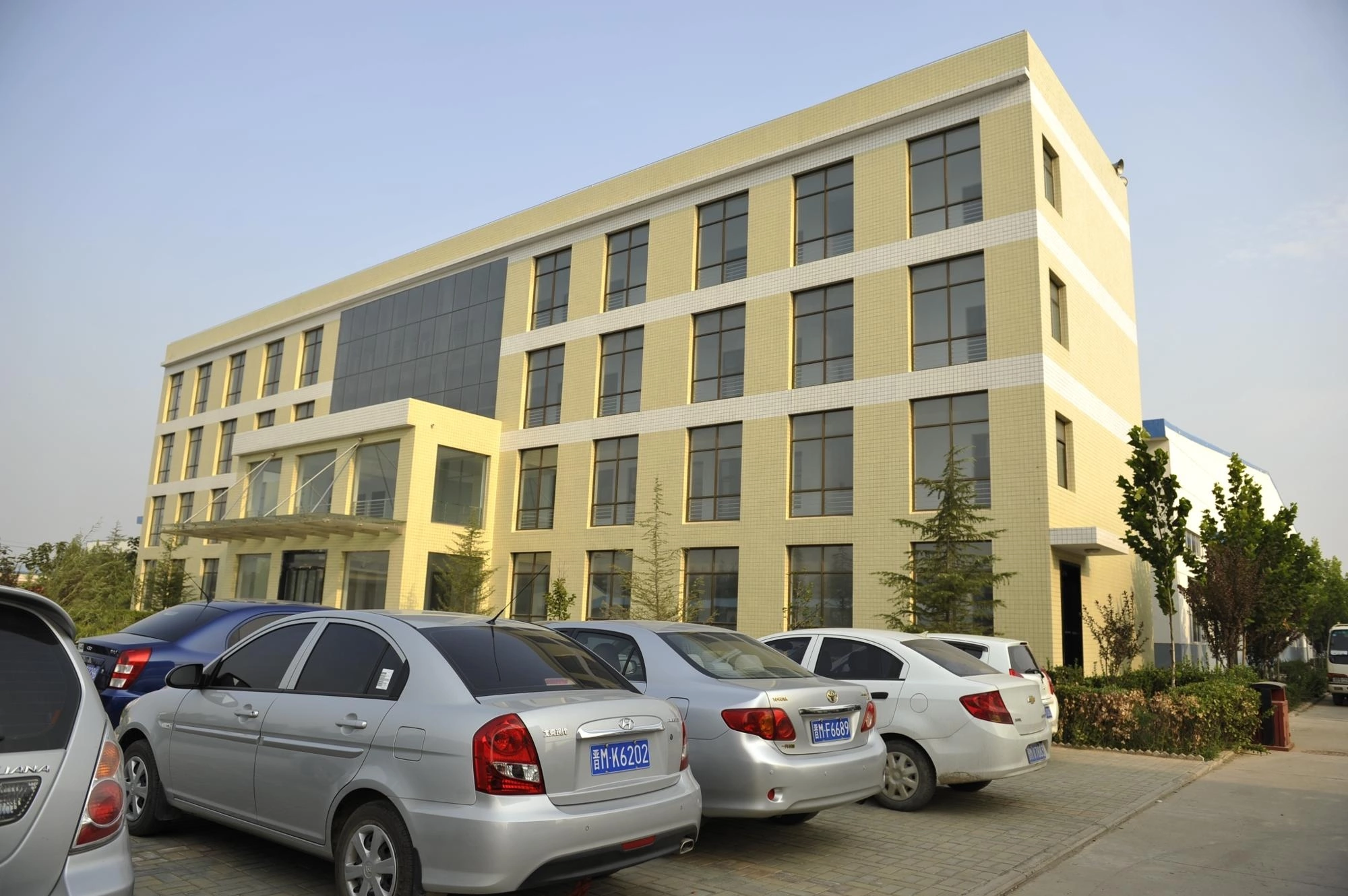

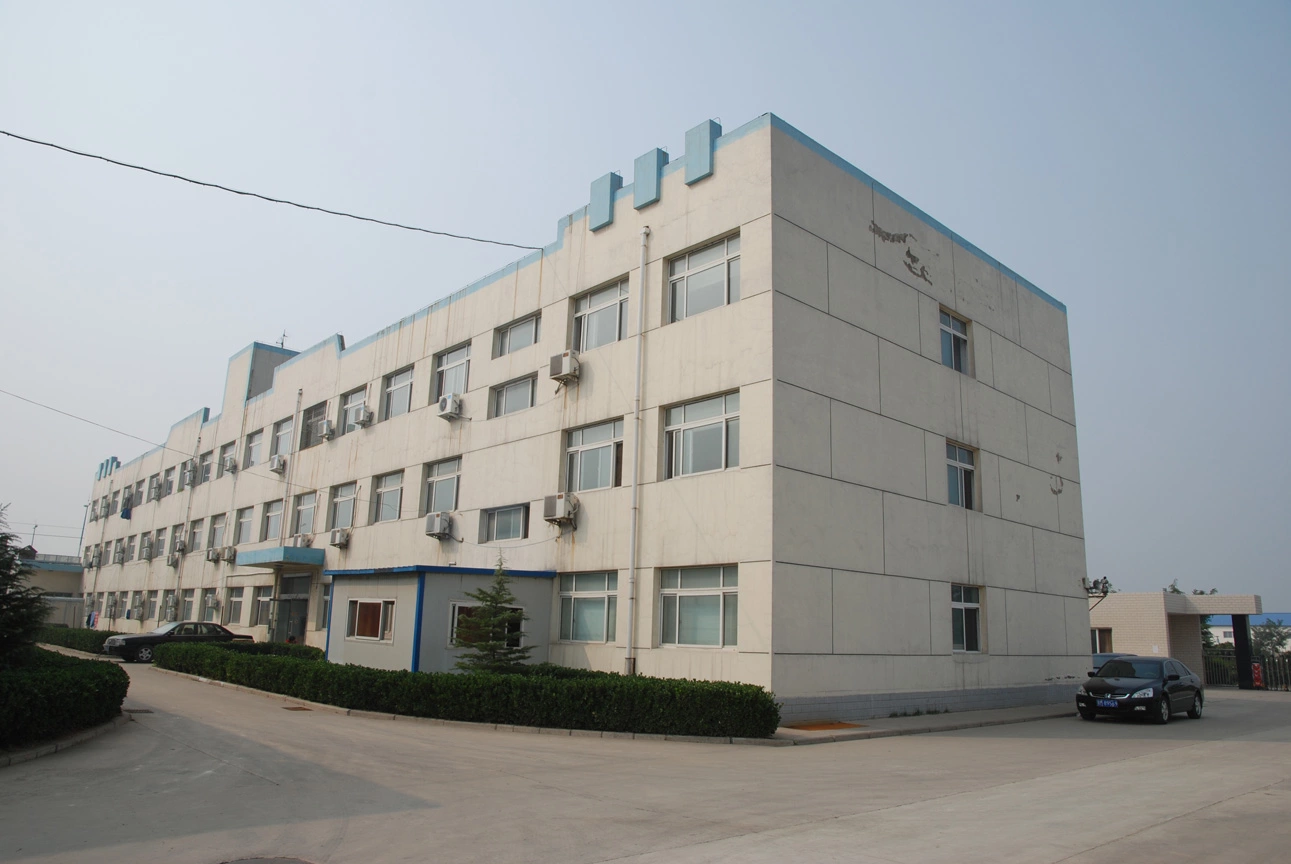

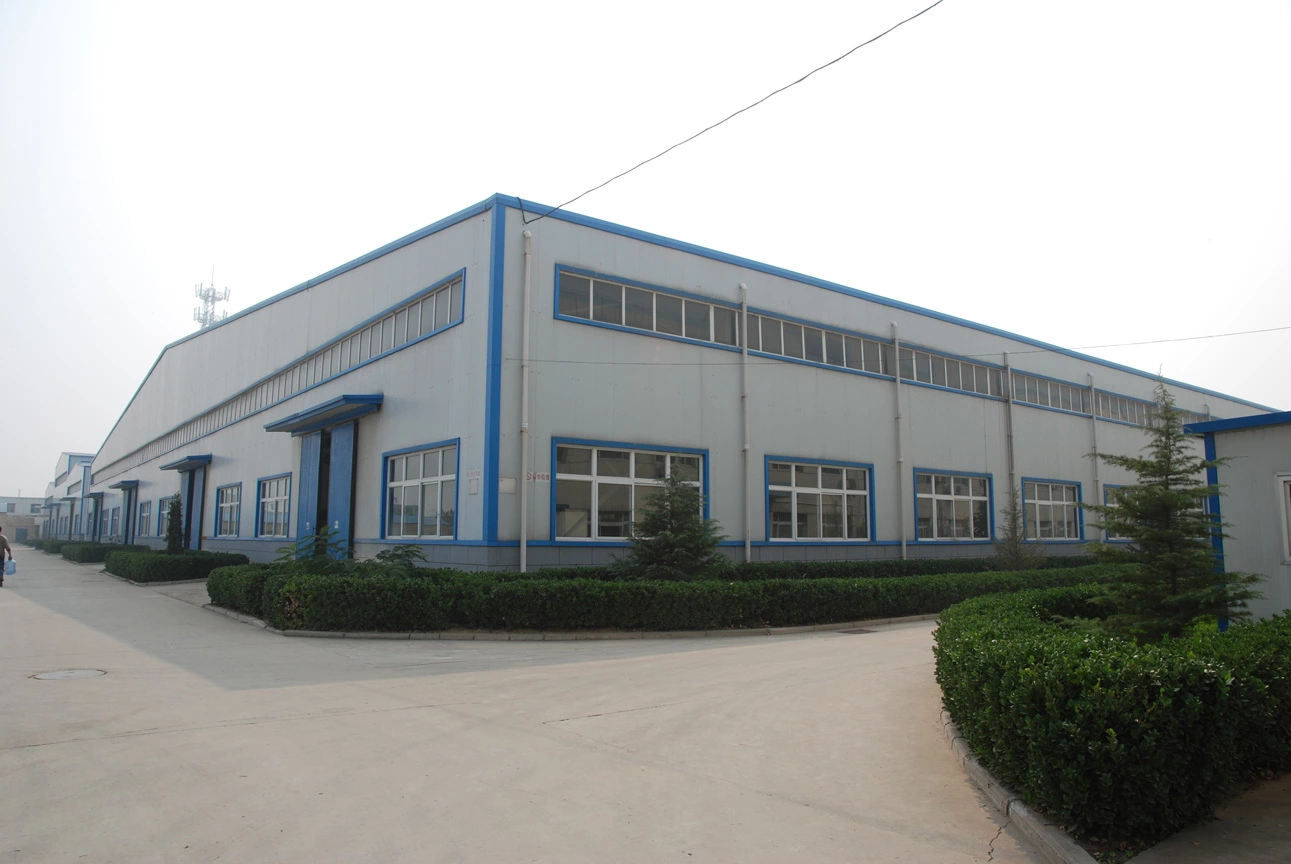

Company profile
