Film paper solvent based laminating machine

ID:20092222354

Category: Manufacturing & Processing Machinery Packaging & Printing Machine

FOB Price:US$ 100000.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Save energy

Payment Method:

L/CT/T

Product Category
Manufacturing & Processing Machinery > Packaging & Printing Machine
Trademark
Yuncheng Plate Making Printing Machinery
Product Package
Wooden Box , Steel Bar
Specification
Check the details under below
Place of Origin
Yuncheng city , Shanxi Province , China
Port
Qingdao
Overview
Quick Details

  • Type:laminating machine

  • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops

  • After Warranty Service:Video technical support, Online support, Field maintenance and repair service

  • Local Service Location:Egypt, VIET NAM, philippines, indonesia, pakistan, INDIA, japan

  • Showroom Location:Egypt, VIET NAM, philippines, INDIA, malaysia

  • Condition:New

  • Application:Food, BEVERAGE, Medical, CHEMICAL

  • Packaging Type:Film, case

  • Packaging Material:plastic, wood

  • Automatic Grade:Automatic

  • Driven Type:Electric

  • Voltage:380v

  • Place of Origin:Shanxi, China

  • Brand Name:Yuncheng Plate Making

  • Dimension(L*W*H):15500

  • Weight:38t

  • Certification:CE SGS ISO9001

  • Warranty:1 YEAR

  • After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support

  • Key Selling Points:long service life

  • laminating width:800-1250mm

  • max. laminating speed:180m/min

  • first unwinding dia.:800mm

  • second unwinding dia.:800mm

  • rewind dia.:800mm

  • coating roller dia.:210mm

  • gluing pressure:500kg

  • glue type:Dry laminating bond

  • Solvent:Ethyl Acetate

  • oven length:10800mm



























Supply Ability

  • Supply Ability:4 Set/Sets per Month

Packaging & Delivery

  • Packaging Details:damp proof package

  • Port:any chinese port

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets)1 - 1>1
    Est. Time(days)90To be negotiated
Products Description

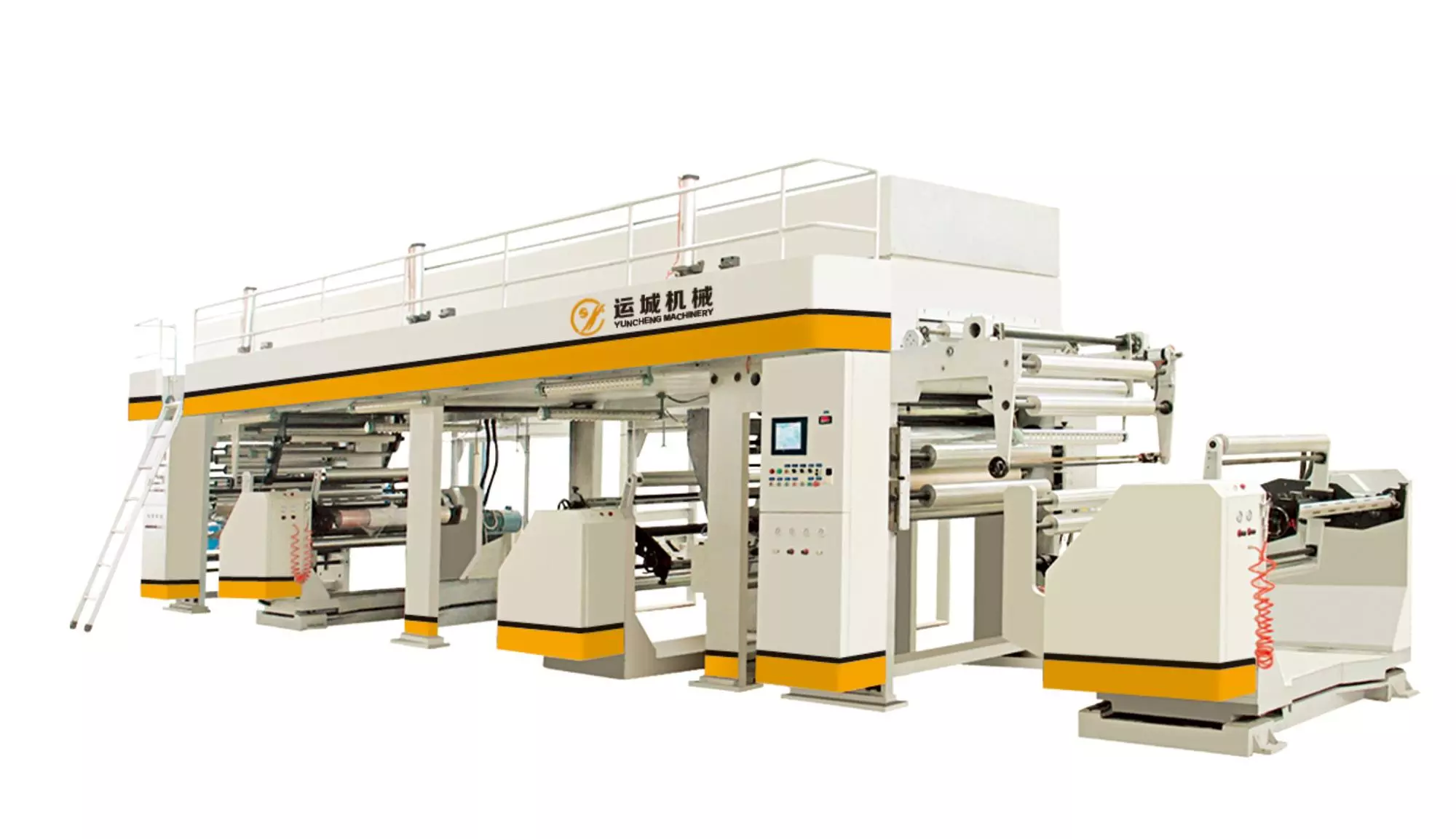

Dry Laminating machine

The plastic film is coated with a solvent-based adhesive, which is desiccated by the drying box and bonded with other composite substrates under hot pressure.
Dry laminating method is one of the most common ways to laminate the film.

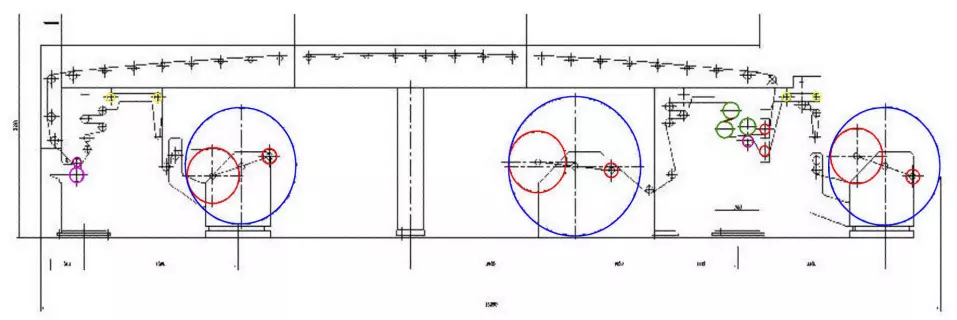

Machine Basic Paremeter

Material width : 1050mm 1250mm
Laminating speed：150m/min~250m/min
Rewind & unwind diameter：800mm 1000mm

Laminating Material

1. Plastic filmCELLOPHONE 20~30um PET 9~60um OPP 15~60um BOPP 15~60um CPP 20~60um NY 12~50um PE 25~100um 组合膜 COMBINAATION FILM
15~60um PVC 20~75um
OTHER PLASTIC FILM WITH SAME FEATURES
2. ALUMIMUN FILM 8~40um
3. PAPER 25～80g/m2

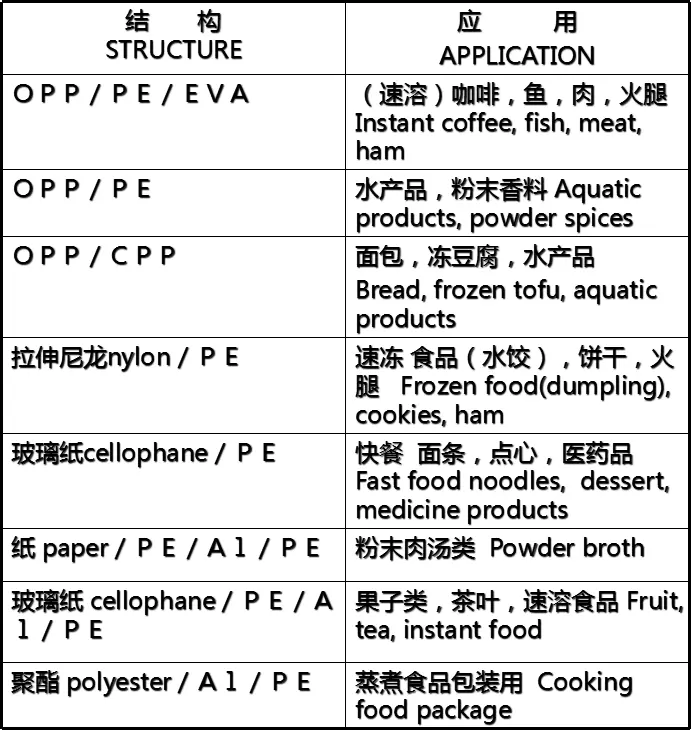

Product Application
Following are daily life laminating material application:
Features
1. With 8 motors vector variable frequency driven, 5 part tension control(200m/min)
2. Anilox roller quantification coating, with quick changing structure, auto cycle gluing system, convenient operation.
3.Using single drive, large speed difference can increase the transparency of the coating, the surface line contact does not change the transfer amount of the original rubber layer.
4. Using single drive, large speed difference can increase the transparency of the coating, the surface line contact does not change the transfer amount of the original rubber layer.
5. he negative pressure design of the whole closed upper and lower double body oven, the automatic temperature control in the three section temperature zone of the large arc surface layout of the guide roll, and the secondary return air utilization system
6. Single drive and closed loop tension control can ensure the same tension with the composite film and get the smooth finished product.
7. Design of High pressure Force with three Rolls to ensure uniform  surface of pressure Force
8. The active operation of the cooling roll is at the same speed as the main motor, the S-shaped water cooling cycle is forced, and the cooling effect is excellent.

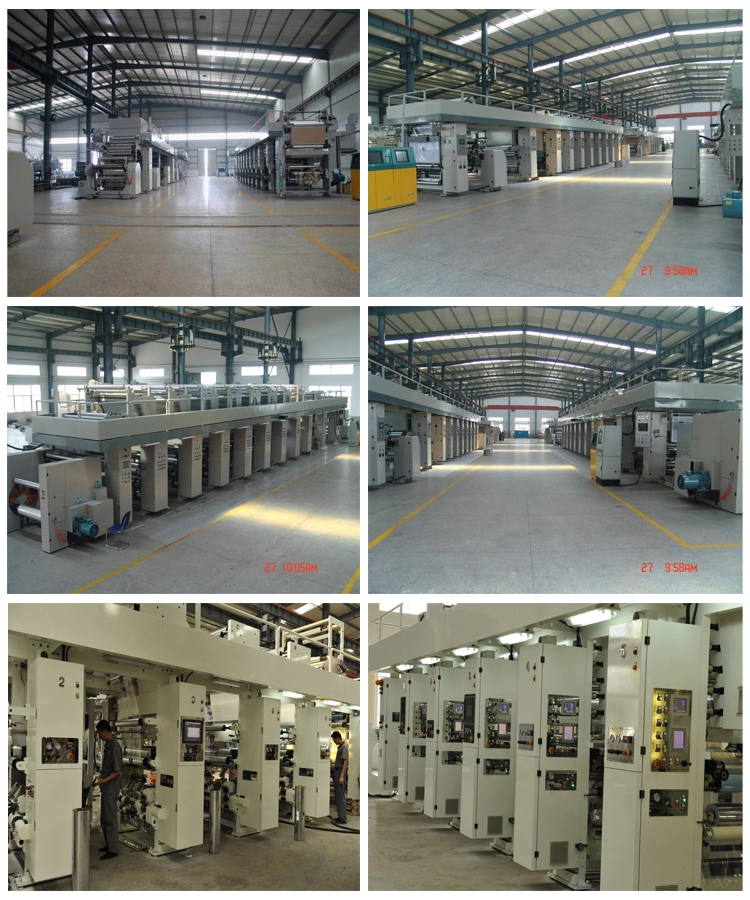

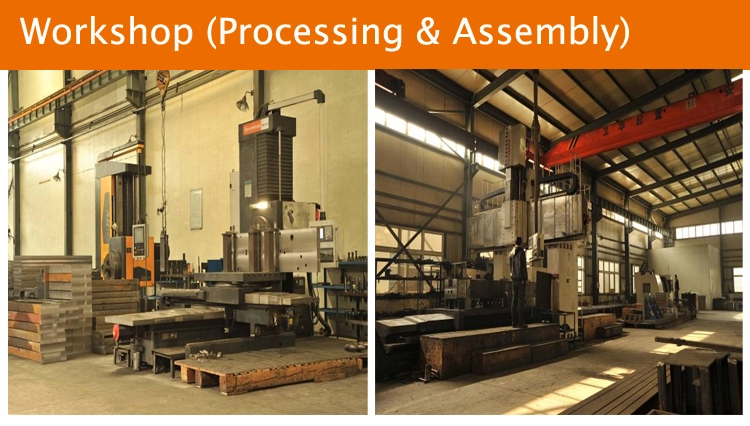

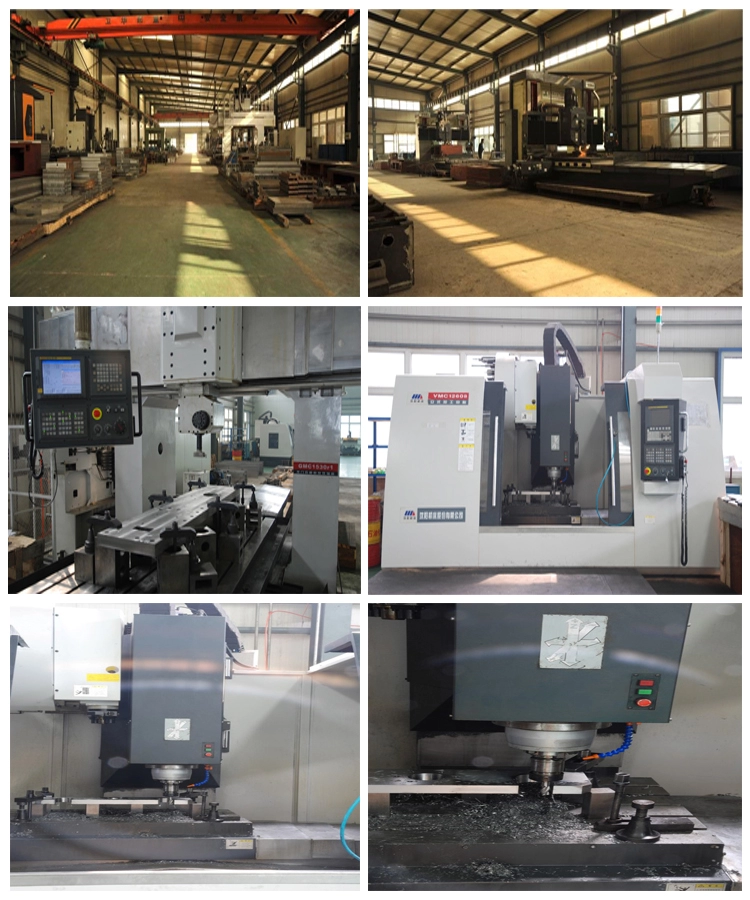

Process workshop

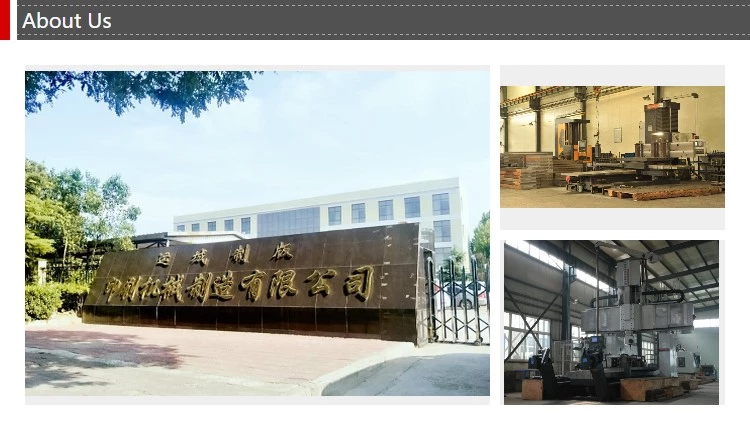

Company Profile
Company brief introduction
Yuncheng Plate Making Printing Machinery Co, Ltd is subject to the Shanxi Yuncheng Plate Making Group, and is a manufacture enterprise that produces the printing equipment. The main product has mainly three series: Rotogravure Printing Machine, Laminating Machine and Slitting Machine. And we have obtained the patents in technical reform and innovation terms, and have been input the production line. Our products are mainly distributed to domestic major economic center such as Guangdong, Shanghai, Qingdao, Tianjin, Hangzhou, Chengdu and so on, in the leading the domestic market while our sales network also involved to the Russia, Mexico, Turkey, Brazil, Egypt, South Africa, Indonesia, Philippines, Thailand, Vietnam, Pakistan, Bengal, India and so on. We widely invite domestic famous academy's specialist to company for technical guidance and we have the group of professionals that specialized in soft development, automatic design, which can meet the customer's need of equipment and technology solution. Intensifying enterprise management, improving the enterprise efficiency, aiming to extend gravure plate industry, we continually enlarge investment, attract talented personnel, and introduce advanced technology. At present, our company has become a large enterprise of plate making equipments and gravure printing machinery equipment.
Shipment

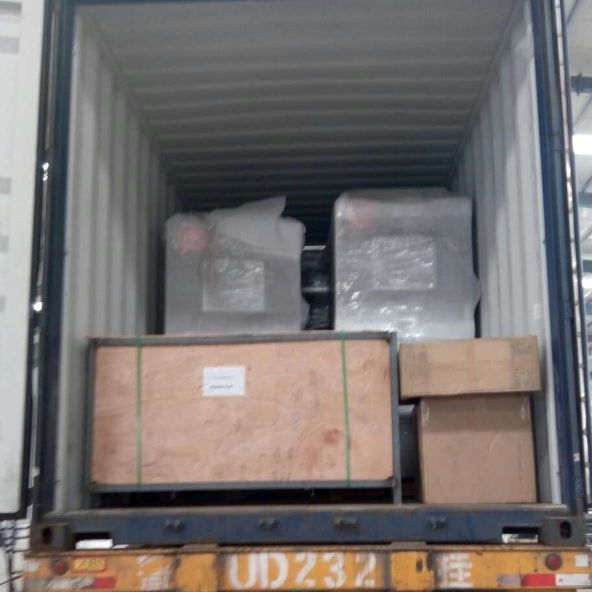

We pack the machine parts seperatedly.
Load them into the container
Loaded in full container to destination as customer requirement
Some parts shipped by air

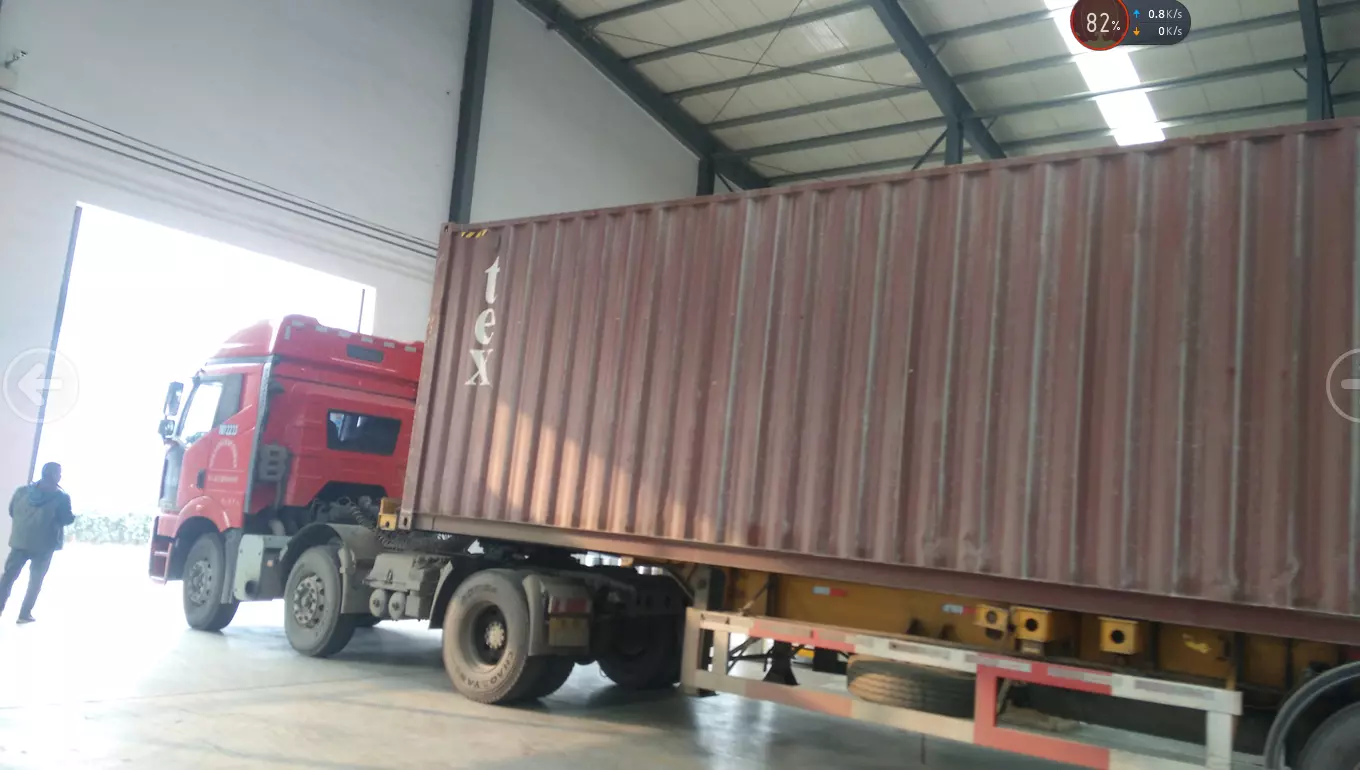

Some parts  shipped by truck
Some parts and machine shipped by sea
