Double Head Save energy
L/CT/T
Condition:New
Type:Cylinder Grinding Machine
Automatic Grade:Automatic
Place of Origin:Shanxi, China
Brand Name:Yuncheng Plate Making
Model Number:YC2050
Voltage:415V
Power(W):Actual power
Dimension(L*W*H):Actual Size
Weight:6000KG
Certification:CE ISO
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:1 Year
Supply Ability
Supply Ability:1 Unit/Units per Month Cylinder Grinding Machine
Packaging Details:Wooden cases
Plastic bag with plastic foam and wooden pallet to protect
Port:Tianjin
Lead Time :60 days
Application: Hollow and Shafted cylinder at different specification as customers'request.

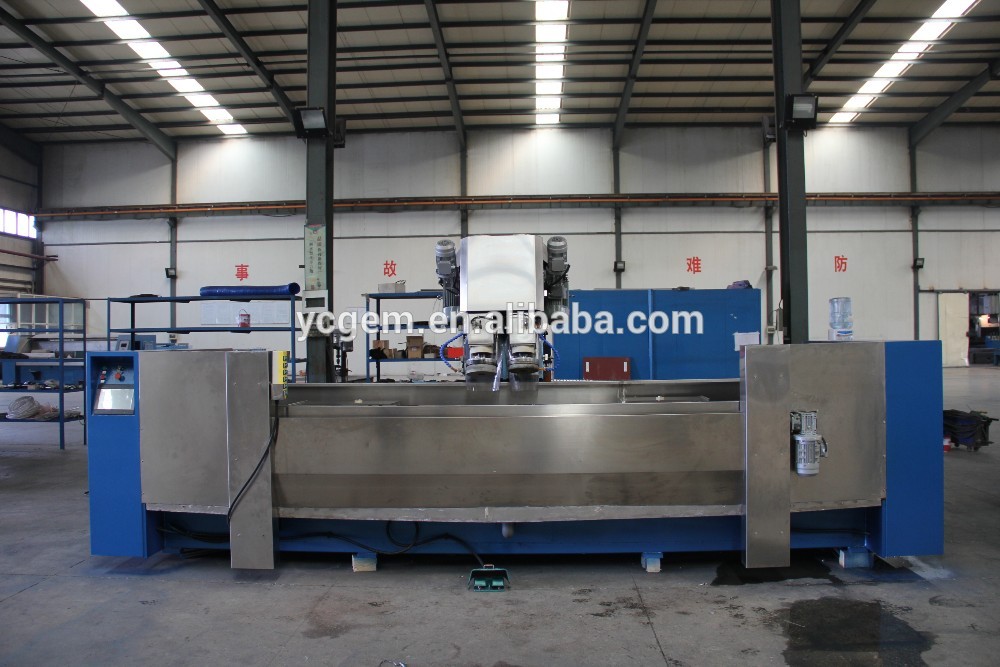

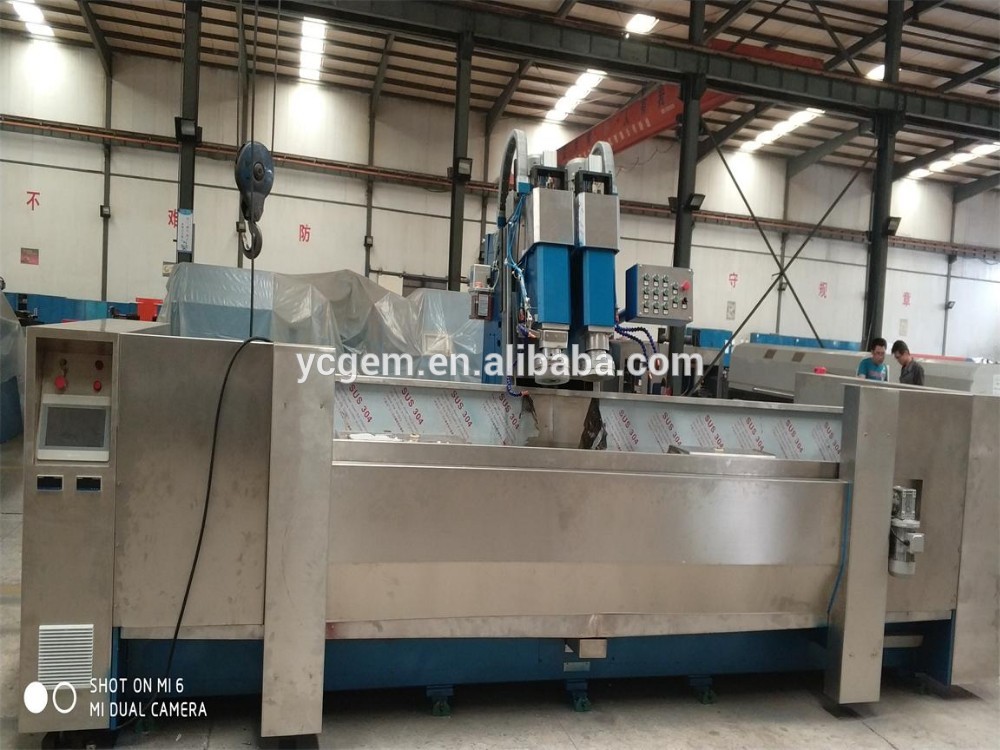

This Double-Head Grinding Machine has 2 heads, front 1 head is for rough grinding,another head is for fine grinding.
Copper grinding machine adopts scientific design, advanced concepts, take into account both practical and efficient for customer, and improves machine life. After research and improvements for many times, we can make the machine run more smoothly, more accurate. The main components are high quality from overseas and domestic, waterproof and corrosion prevention are integrated, so as to improve service life of the machine.
Automatic double inclined head grinding machine adopt touch-screen man-machine interface, PLC control, rough grinding and fine grinding can be completed one time , which can save time, labor, improve work efficiency about 30% -60%.
Model No. | 2050 | ||
L*W*H | 5200*1750*2200mm | ||
Cylinder Diameter | 120-500mm | ||
Max. Cylinder Length | 2000mm | ||
Max. Cylinder Length without Shaft | 12000rpm | ||
Power | 3*400VAc 50/60HZ | ||
Current | 25A | ||
Compressed Gas | 6-8Bar | ||
Max. Cylinder Speed | 600rpm | ||
Cylinder Weight | ≤500KG |
1. Box-welded main frame ensure the equipment strength and avoid distortion, improve the mechanical shock resistance.
2. Intelligent. Touch-screen man-machine interface, PLC control, built-in program, which will reduce manual operation and improve equipment efficient. Cylinder, grinding head, and tailstock movement frequency control to improve efficiency.
3. Self-lubricating function. Guide rail and other key parts have self-lubricating function, which makes the machine service life more long, to avoid artificial fuel not given timely, which result in the premature damage of the guide rail.
Product package
Shipment & Payment

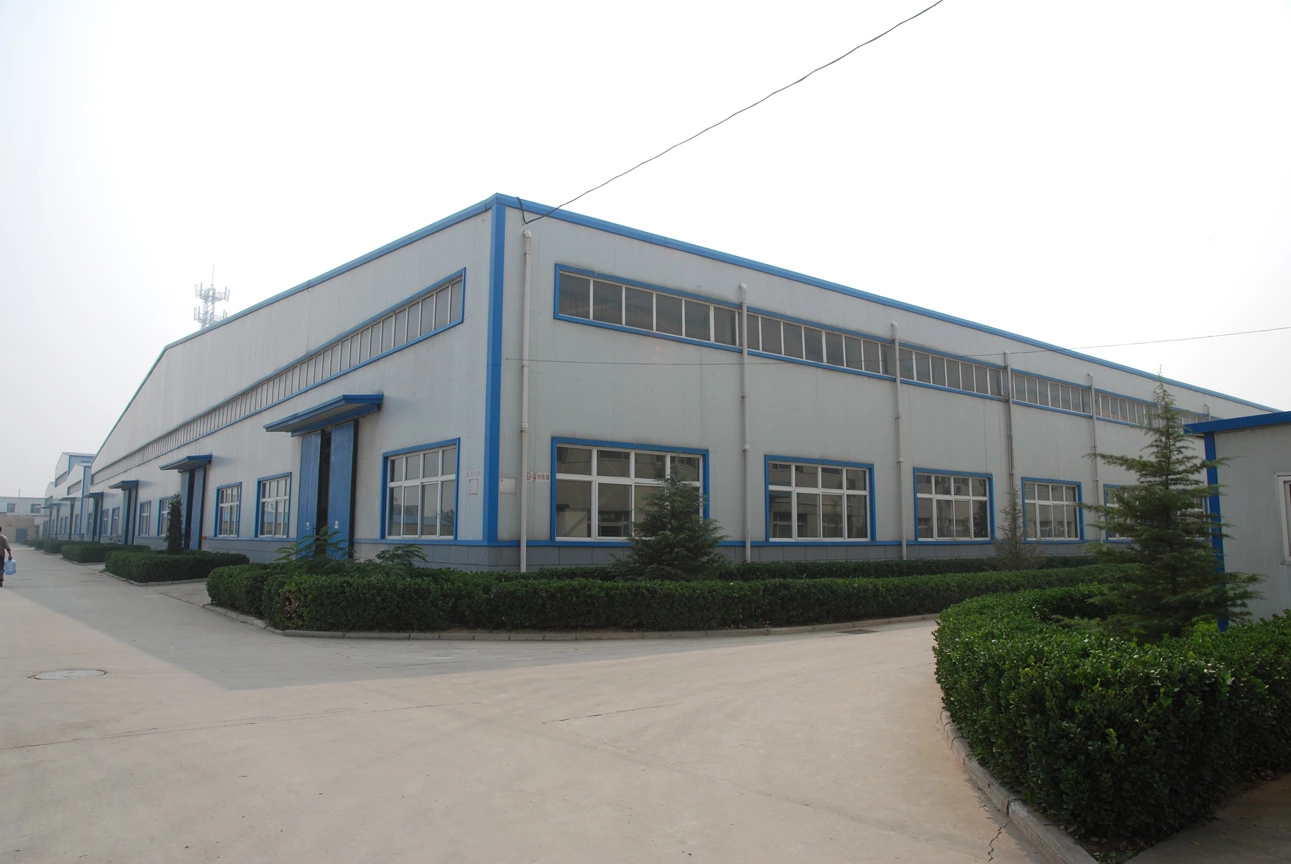

Company profile
