150mesh EMI shielding film for LCD screen

150OPI Metal Mesh Film With Adhesive

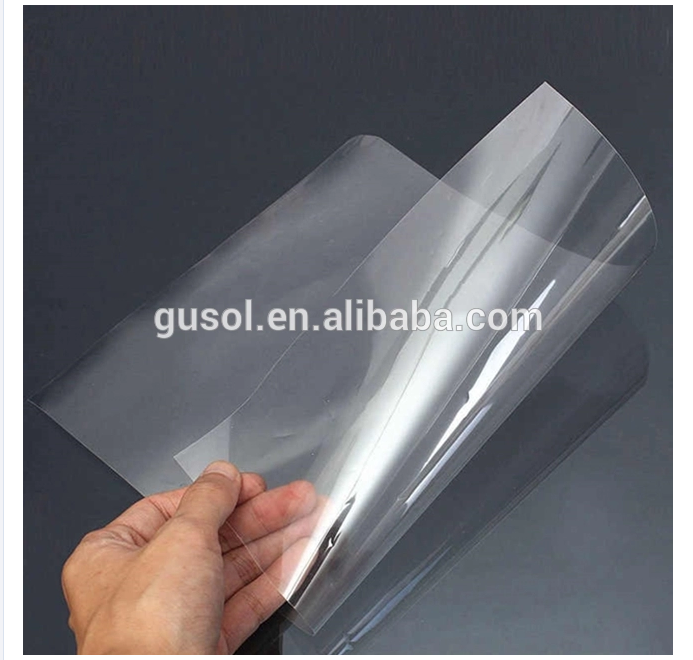

Copper gride PET film, also named Metal mesh film. It is an extreme low resistance film with high optical light transmission.It is an ideal product for high EMI/EMR/RFID shielding material for military,hospital,unman shops,confidential house and electronics anti interference. The fine mesh is hardly visible by eyesight,hence this method is also developed for special touch control on display .

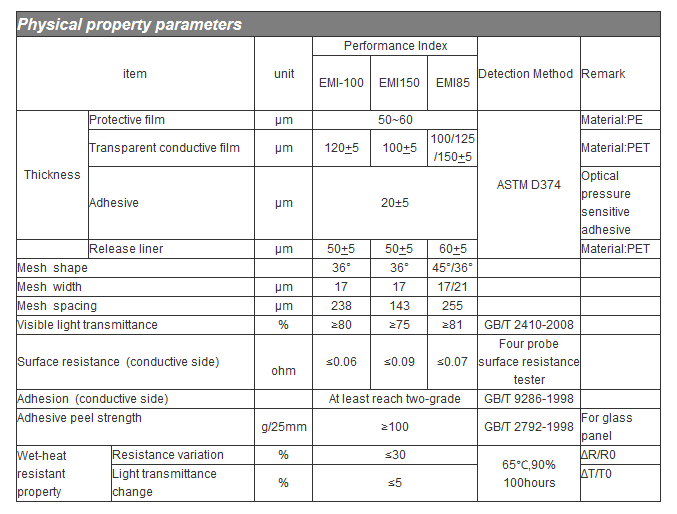

Electrical Uniformity

All metal mesh film feature electrical uniformity of 10% within any one square foot area, defined as the maximum difference from the average ohms per square value within that area.

Handling

Metal mesh film is very thin and are easily scratched or cracked if handled improperly. When removing film from a roll, care should be taken not to bend or crease it. It is important never to allow the conductive side to come in contact with a surface, such as a table, during processing operations. Sliding conductive coating over a surface will scratch the coating, resulting in elevated surface resistance and visible defects.

Ordering

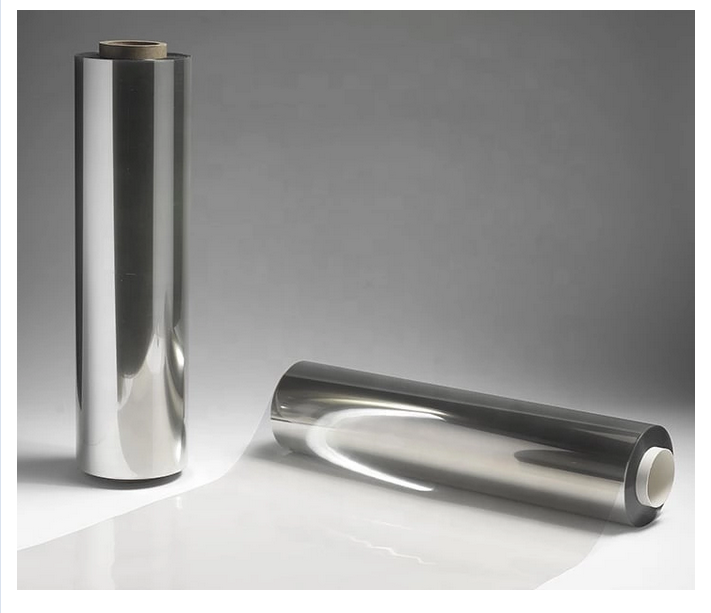

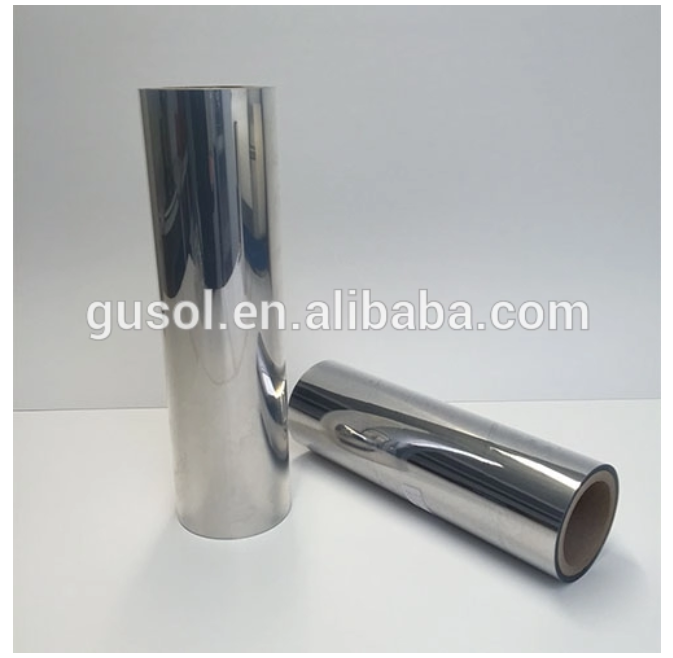

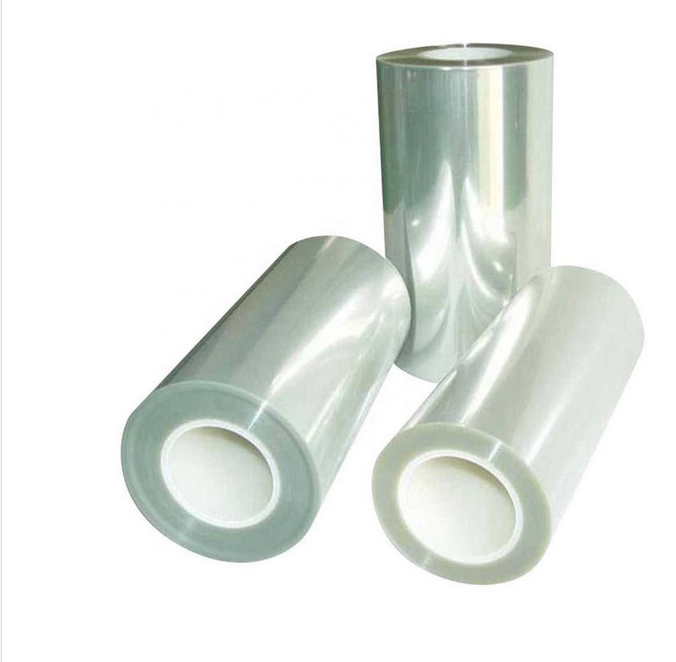

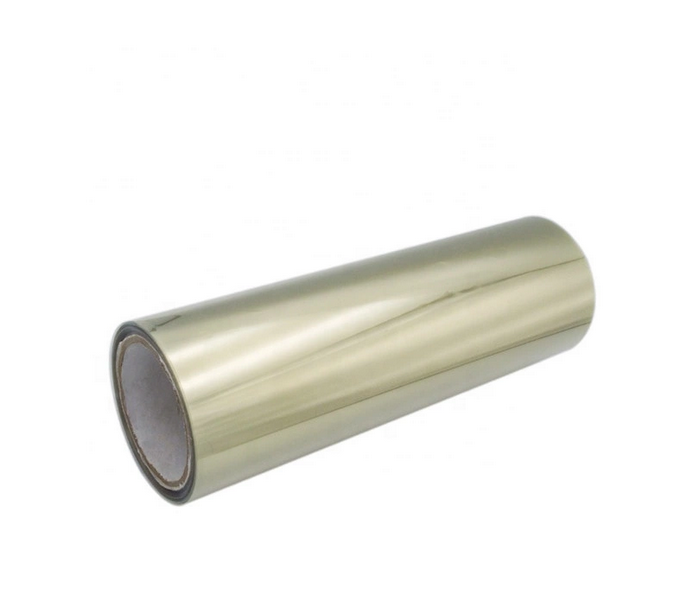

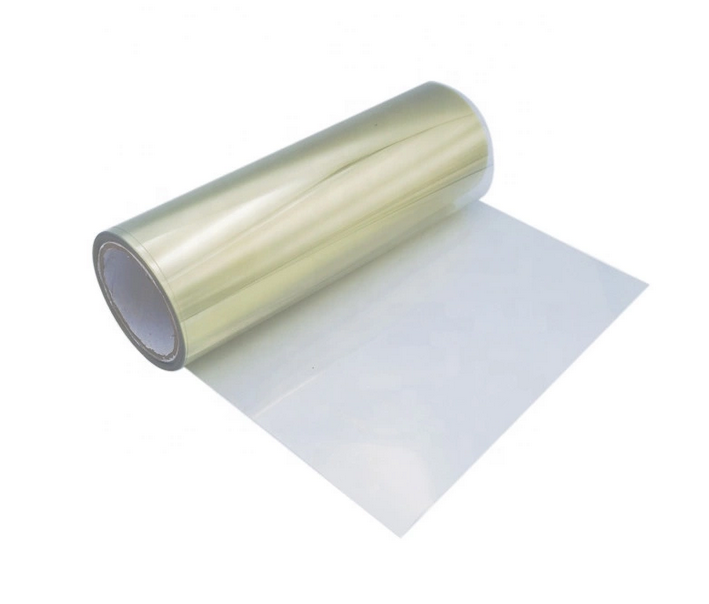

PROCHEMA sells metal mesh film in roll form. When ordering rolls of film, please correctly specify the film thickness (microns, mils or gauge units), film width, length of film on each roll and number of rolls desired.

Application Guides :

? Window shield for shielding room, computer room, laboratory, precision instruments windows related to communication, medical and electronic information fields;

? Shielding/RFID cabinets & glass door in security room;

? Defense-related facilities and equipment;

? Phone screen shielding;
