Product Specification
1) Packaging Product ：380ml/500ml/1000ml/2000ml PET Bottled Water and Tin Canned Beverage (or other special containers) 2) Packaging Specification：2×3, 3×4, 4×6 (or other combinations)
3) Max Package Dimension: 460×280×350 mm
4) With or without cardboard supporting tray

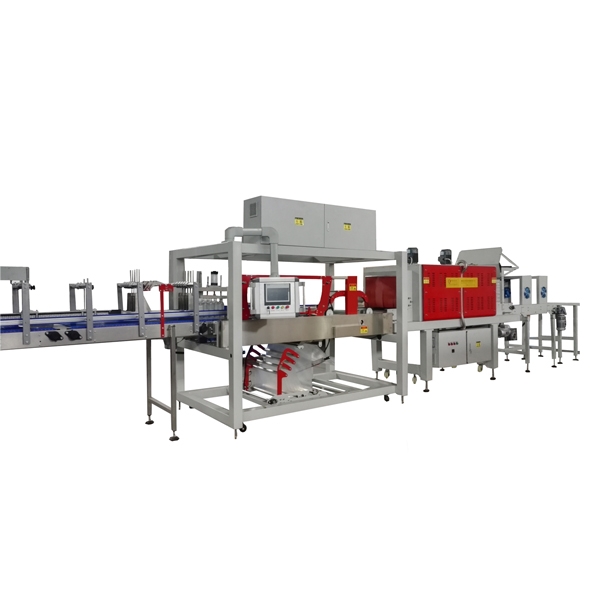

Machine Specification
1) Machine Dimension: 16270×1600×2500 mm
2) Shrinkage Tunnel Dimension: 2500×700×450 mm3) Packaging Speed：30 Packs/Minute
4) Conveying Belt Width: 610 mm
5) Voltage/Power: 380V /54KW
6) Working Air Pressure: 0.6-0.8 Mpa
7) Air Consumption: 0.3 m3/minute
8) Packaging Form：One piece heat shrink film wrapping
9) Packaging Material : LDP
10) Special solutions for Printed Shrink Film(with designed Logo& company information) Wrapping.
11) Specail solution for Auto Cardboard Sheet Placing+ Auto Shrink Film Wrapping.
12) Special solution for Auto Cardboard Tray Folding + Auto Shrink Film Wrapping.
Order Information
To help us make sure this model is suitable for you, please kindly provide the following information with your inquiry:
1) Details of your product (Dimensions, Photos and Drawings)
2) Packaging Combination for each pack (2×3, 3×4, 4×6 or others)
3) Packaging Capacity Required (How many bottles/cans for each hour on the current/planned production line)
4) Packaging Expectation (Photo of packed product shall be very helpful)
5) Packaging Automation Level (Semi-automatic or Complete Automatic)
6) The Layout Drawing of workshop (Optional, just help us prepare arrangement of the machine)
7) The Height of current production line (Optional, just help us confirm the height of conveying system)
8) Other usful information which might helpful.
