QSFP28 100G-SR4 CWDM4 1310nm 2km LC DDM DOM optical Transceiver
Part No. | Data Rate | Laser | Fiber Type | Distance | Optical Interface | Temp | DDMI |
YXF-Q28-S31L-2D | 103.1Gbps | CWDM DML | SMF | 2km | LC | 0~70C | Y |
Features:
Supports 100GBASE-CWDM4(103.1Gb/s);
Lane bit rate 25.78 Gb/s;
Up to 2km transmission on SMF;
CWDM DML laser and PIN receiver;
High speed I/O electrical interface (CAUI-4);
I2C interface with integrated Digital Diagnostic monitoring;
QSFP28 MSA package with duplex LC connector;
Single +3.3V power supply;
Maximum power consumption 3.5 W;
Operating case temperature: 0 to +70 °C;
Compliant to 100G CWDM4 MSA;
Compliant to IEEE802.3bm;
Compliant to SFF-8665 and SFF-8679;
Complies with EU Directive 2011/65/EU (RoHS 6);
Applications:
100GBASE-CWDM4 application with FEC
ITU-T OTU4
| Part Number | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Remark |
| YXF-100G | 100Gbps | MM 100m (OM4) | 850nm | -8.4 ~ +2.4dBm | -10.3dBm | QSFP28-100G-SR4 |
| YXF-100G | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28-100G-LR4 |
| YXF-100G | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28 100G-LR4-Ethernet |
| YXF-100G | 100Gbps | SM 40km | 1310nm | -2.9 ~ +4.5dBm | -16.9dBm | QSFP28 100G-ER4 |
| YXF-100G | 100Gbps | SM 2km | 1310nm | -6.5 ~ +2.5dBm | -11.5dBm | QSFP28 100G-CWDM4 |

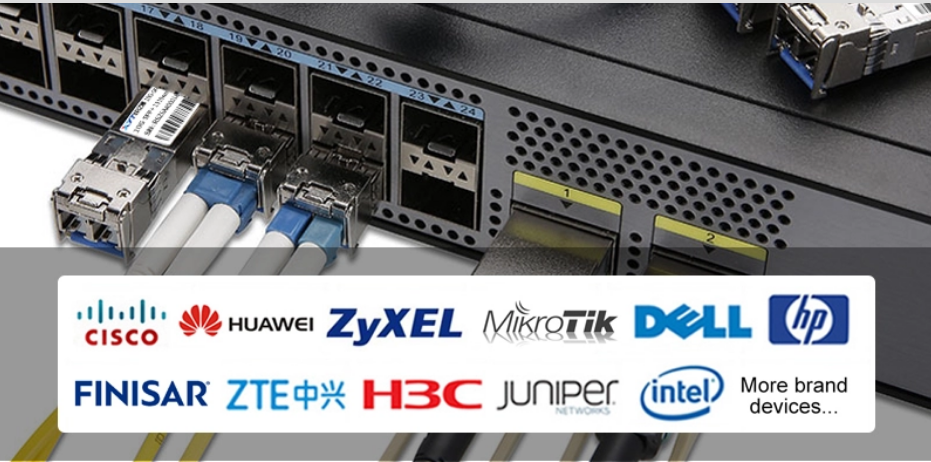

Widely compatibel:

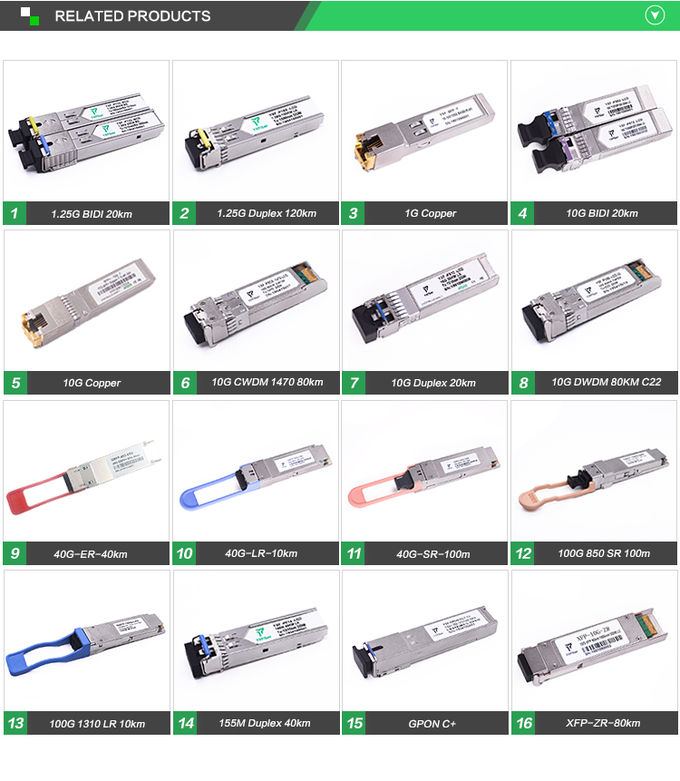

Related products:

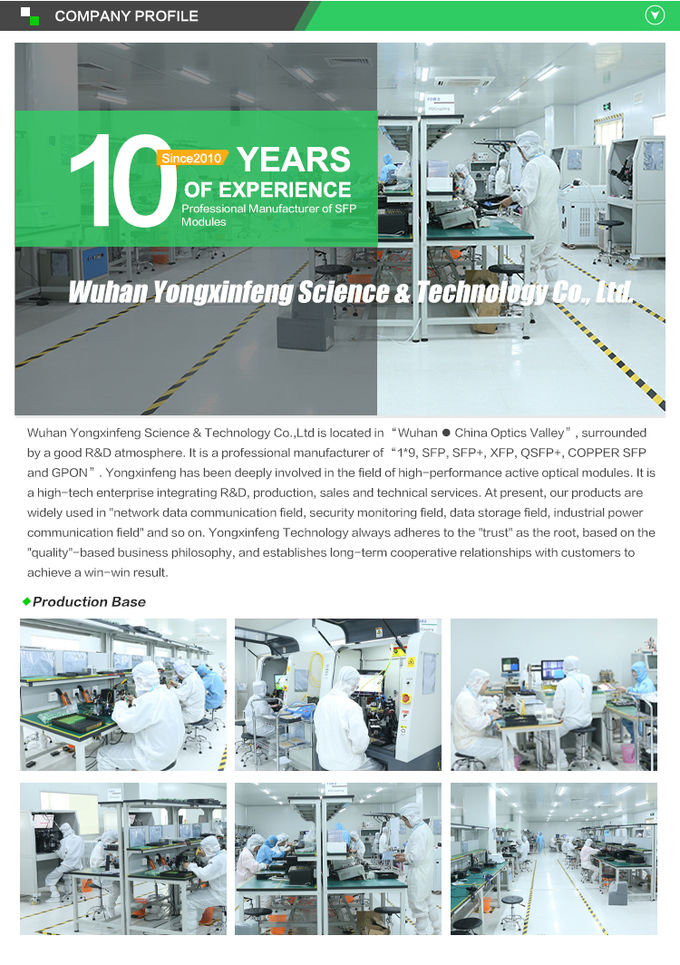

Company profile:
Exhibition and customer visiting
Package and shipping:
FAQ:
Q1. Do you provide samples? Is it free or extra?
Yes, but we need to charge for samples, we will return sample fee in the later order
Q2. What is your MOQ and the lead time?
We do not have MOQ, 1sample is available
Lead time: 1~3 working days for samples, 3~5 days for mass
Q3. What is your terms of payment?
Pament≤5000USD, 100% in advance
Payment> 5000USD, 40%T/T in advance, balance before shipment
Q4. How about Precautions?
Storage in anti-static box
When used, please ensure that the voltage is normal and stable
Q5. What is your after-sales service?
All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support
Q6. Could I use our own logo and label?
Yes, we could provide OEM service and make the products with your own label
