QSFP28 100G-SR4 850nm 100m MPO Transceiver
Product Description
The QSFP28-100G-SR4 is a transceiver module designed for 100m optical communication applications. The design is compliant to 100GbASE-SR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.
Up to 27.952 Gbps Data rate per channel
Maximum link length of 150m links on OM4 multimode fiber
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Digital diagnostic SFF-8636 compliant
Compliant with QSFP28 MSA
Case operating temperature range:0°C to 70°C
Power dissipation < 2.0W
Applications:
100G Ethernet &100GBASE-SR4
ITU-T OTU4
| Part Number | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Remark |
| YXF-100G | 100Gbps | MM 100m (OM4) | 850nm | -8.4 ~ +2.4dBm | -10.3dBm | QSFP28-100G-SR4 |
| YXF-100G | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28-100G-LR4 |
| YXF-100G | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28 100G-LR4-Ethernet |
| YXF-100G | 100Gbps | SM 40km | 1310nm | -2.9 ~ +4.5dBm | -16.9dBm | QSFP28 100G-ER4 |
| YXF-100G | 100Gbps | SM 2km | 1310nm | -6.5 ~ +2.5dBm | -11.5dBm | QSFP28 100G-CWDM4 |

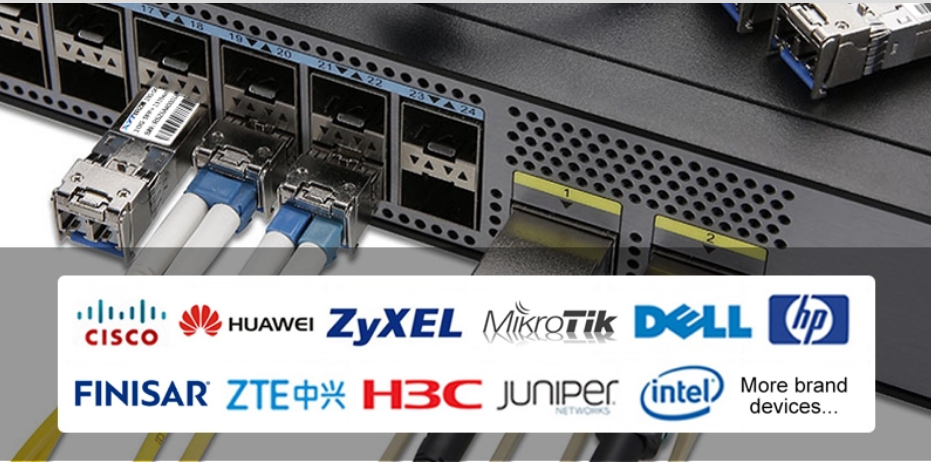

Widely compatibel:

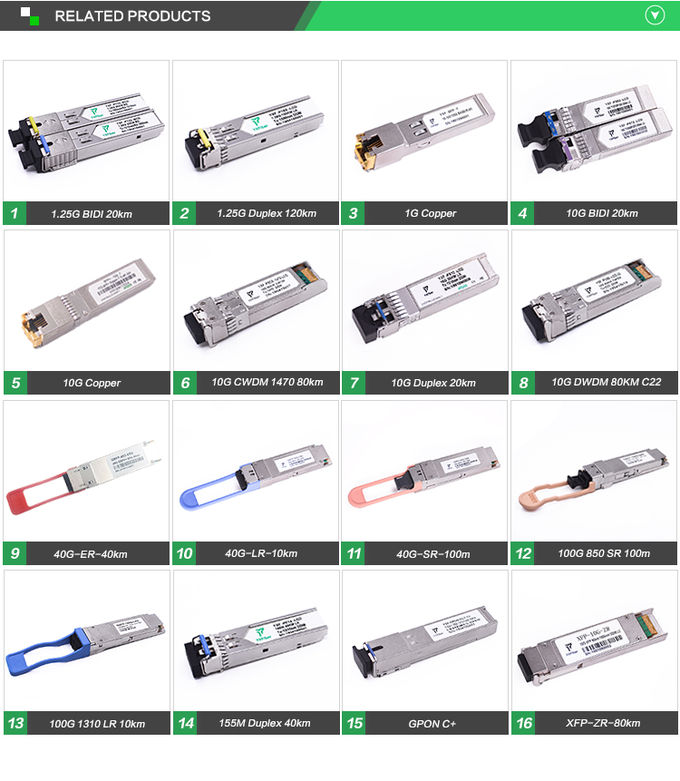

Related products:

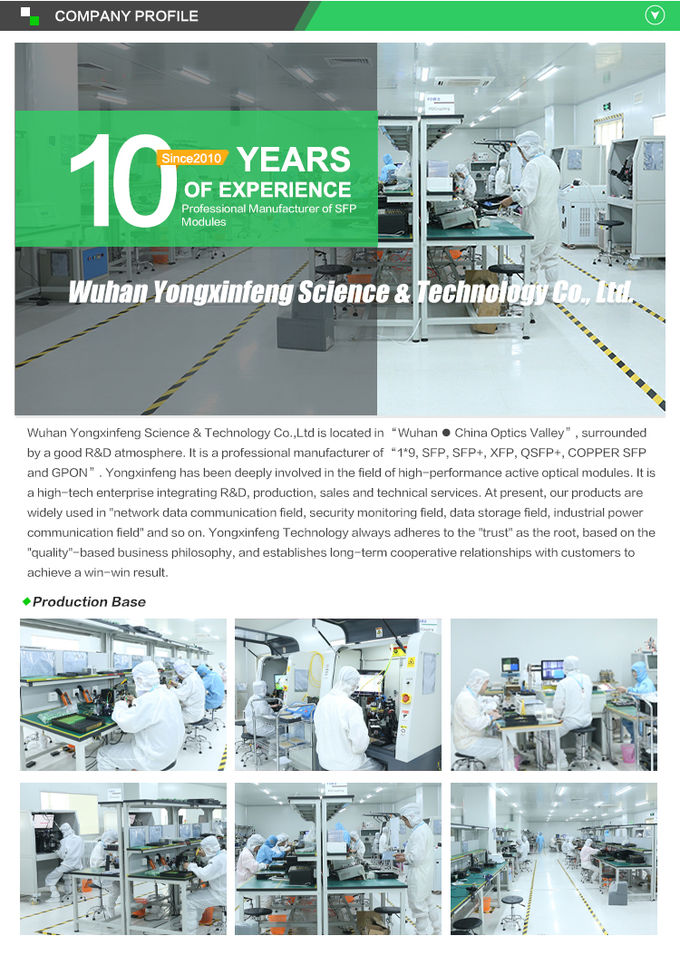

Company profile:
Exhibition and customer visiting
Package and shipping:
FAQ:
Q1. Do you provide samples? Is it free or extra?
Yes, but we need to charge for samples, we will return sample fee in the later order
Q2. What is your MOQ and the lead time?
We do not have MOQ, 1sample is available
Lead time: 1~3 working days for samples, 3~5 days for mass
Q3. What is your terms of payment?
Pament≤5000USD, 100% in advance
Payment> 5000USD, 40%T/T in advance, balance before shipment
Q4. How about Precautions?
Storage in anti-static box
When used, please ensure that the voltage is normal and stable
Q5. What is your after-sales service?
All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support
Q6. Could I use our own logo and label?
Yes, we could provide OEM service and make the products with your own label
