QSFP28 100G-LR4 1310nm 10km LC SM DDM DOM optical Transceiver

QSFP28 100G-LR4 1310nm 10km LC SM DDM DOM optical Transceiver

Product Description

100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4-Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single -mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3bm.

Features:

• Compliant with 100GBASE-LR4

• Support line rates from 103.125 Gbps to 111.81 Gbps

• Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF

• Digital Diagnostics Monitoring Interface

• Duplex LC optical receptacle

• No external reference clock

• Electrically hot-pluggable\

• Compliant with QSFP28 MSA with LC connector

• Case operating temperature range:0°C to 70°C

• Power dissipation < 3.5 W

Applications:

• 100G Ethernet &100GBASE-LR4

• ITU-T OTU4

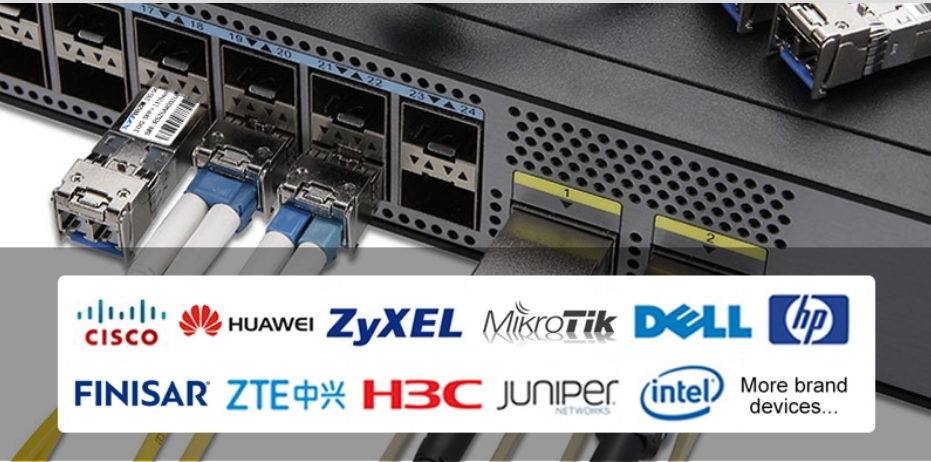

Widely compatibel:

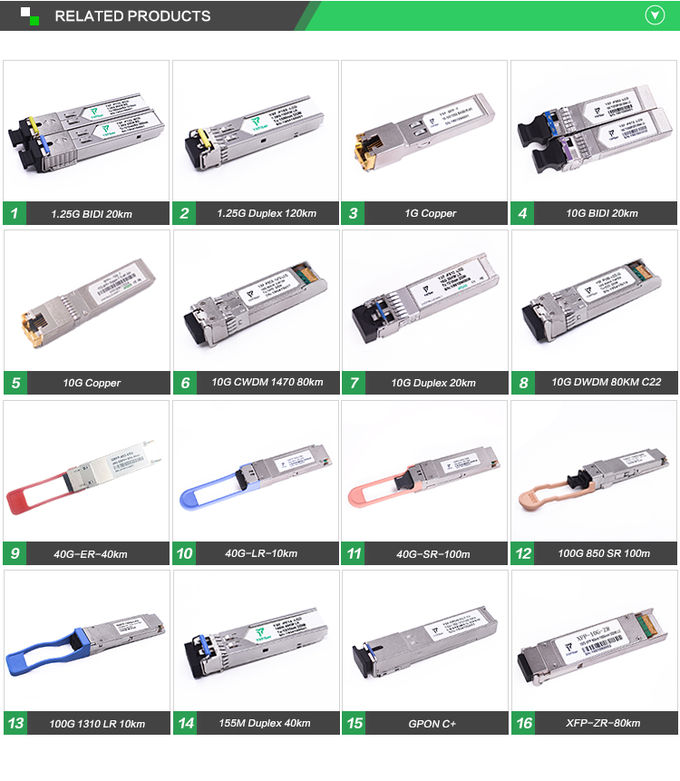

Related products:

Company profile:

Exhibition and customer visiting

Package and shipping:

FAQ:

Q1. Do you provide samples? Is it free or extra?

      Yes, but we need to charge for samples, we will return sample fee in the later order

Q2. What is your MOQ and the lead time?

       We do not have MOQ, 1sample is available

       Lead time: 1~3 working days for samples, 3~5 days for mass

Q3. What is your terms of payment?

        Pament≤5000USD, 100% in advance

        Payment> 5000USD, 40%T/T in advance, balance before shipment

Q4. How about Precautions?

       Storage in anti-static box

       When used, please ensure that the voltage is normal and stable

Q5. What is your after-sales service?

       All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support

Q6. Could I use our own logo and label?

       Yes, we could provide OEM service and make the products with your own label
