Product Description

Based on the principle of optical pulse coherent Doppler shift detection, Wind3D 6000 can realize the fine detection of the 3D wind field of the middle and lower troposphere (including the atmospheric boundary layer).

Highly pointed precision optical scanning mirror for 3D scanning detection.

(DBS/VAD/PPI/RHI/CAPPI fixed-point scanning mode), the detection radius can be up to 6km.

In order to meet complex wind measurement requirements such as complex terrain wind field, wind turbine wake,remote virtual wind tower at sea, and stereoscopic distribution of atmospheric pollutants, we have specially developed radar 3D stereo scanning, virtual wind tower, multi-radar coordination, etc. Detection mode. Provide users with a full range of customized solutions and services.

Functional features and advantages

3D wind field detection: long distance, 3D stereo wind field detection system

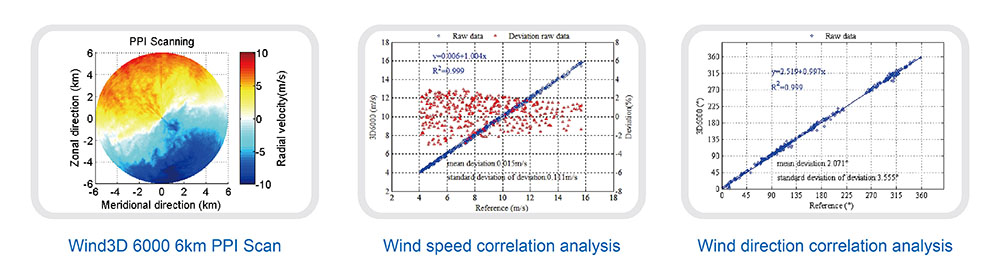

High precision: achieved wind cup-level wind measurement accuracy (<0.1m/s), and passed IEC61400-12-1:2017 international standard inspection

Large range: detection radius >6km (expandable)

Multi-scan mode: DBS/VAD/RHI/PPI/CAPPI virtual wind tower, etc. , and support for Lidar script programming.

High resolution: data refresh rate : 10Hz distance resolution :15m

Flexible deployment: small size, light weight, low power consumption, and easy to build and transfer in the field

Automatic unattended observation: remote networked data acquisition and device monitoring

Strong robustness: continuous and stable operation in harsh environments on land and at sea
