Product Description

Based on the principle of optical pulse coherent Doppler shift detection, Wind3D 10K is applied to low-altitude wind shear monitoring, identification, early warning, aircraft wake vortex detection, and wake vortex compression performance improvement applications.

The high-point-point precision optical scanning mirror can be configured to realize 3D scanning detection function (DBS/VAD/PPI/RHI/CAPPI fixed-point scanning mode) with a detection radius of up to 10km.

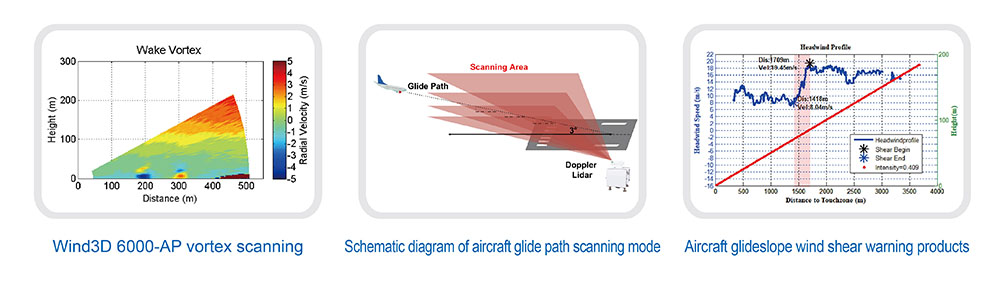

In order to meet the wind measurement needs of aeronautical meteorology, we have developed a variety of detection modes such as lidar three-dimensional scanning, aircraft glide path scanning, wind profile scanning, and multi-radar networking. Provide users with a full range of customized solutions and services.

Functional features and advantages

Aviation safety: meeting eye safety and electromagnetic compatibility design

Whole field coverage: 3D stereo wind field detection system for the whole field and glide path of the airport

High precision: wind cup level wind measurement accuracy (<0.1m/s)

Multi-scan mode: DBS/VAD/RHI/PPI/CAPPI aircraft low-altitude wind shear and wake vortex mode, support Lidar script programming function

High resolution: data refresh rate: 10Hz distance resolution: 15m

Flexible deployment: small size, light weight, low power consumption, easy to deploy at airports and stations

Automatic unattended observation: remote networked data acquisition and device monitoring

Strong robustness: continuous and stable work in harsh environments in inland, coastal and plateau

Technical specifications
