The WindHorizon H400 is a compact, high-precision forward-looking Nacelle Lidar that accurately detects wind speed and direction information for any 10 distance gates from 50m to 400m directly in front of the fan hub.
It is suitable for application fields such as fan yaw error correction, wind turbine power curve test and feedforward control to reduce fan load. It is of great significance to improve wind turbine power generation efficiency, reduce wind turbine load and failure rate, and prolong wind turbine service life.
Full function: yaw, feedforward control, power curve test
High precision: wind speed 0.1m/s, wind direction 0.5°, pass white box and black box accuracy test
High resolution: 4Hz data refresh rate, meter range resolution
Wide range of adaptable models: Customized development for different models (including detection distance, optical opening angle, data output, etc.)
Easy installation: small size, light weight, low power consumption, fast installation, support for multiple compatibility data interfaces
Automatic unattended observation: remote networked data acquisition and device monitoring
Strong robustness: continuous and stable operation in harsh environments on land and at sea
| Specifications | Parameter |
|---|---|
Detection height range | 50m～400m |
Data updating rate | 1Hz～4Hz (configurable) |
Measuring distance gate | 10 distance gating can be arbitrarily configured (1 m positioning accuracy) |
Wind speed range | 0m/s～50m/s |
Wind speed accuracy | ≤0.1m/s |
Wind direction accuracy | ≤0.5° |

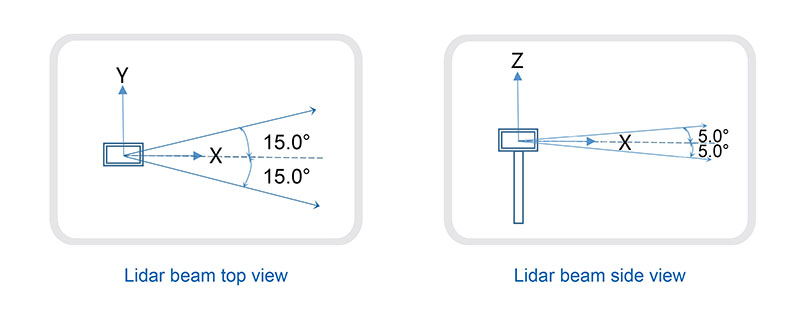

Number of beams | 4 |
Data product | Radial wind speed, pitch angle and roll angle, 1s/10min hub height data including horizontal wind speed and direction, horizontal and vertical wind shear, turbulence intensity, signal to noise ratio, data acquisition rate, etc. |
Data storage | Csv text format with 1 year data storage |
Data interface | Network (RJ45), CAN (RJ45), 4G, USB, HDMI, RS232, etc. (support customization) |
Operating temperature | Outside the cabin: -30 ° C ~ 50 ° C inside the cabin: -30 ° C ~ 65 ° C |
Housing classification | IP65 Salt Spray IEC 60068-2-11Humidity: 0% to 100% |
Electrical safety standards | EN 61010, CE |
