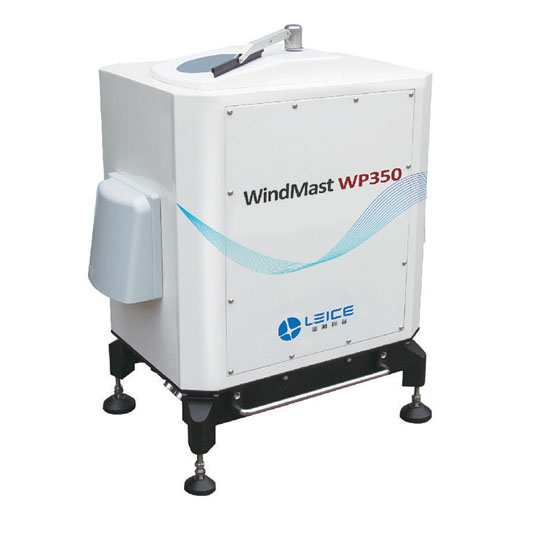

The WindMast WP350 is a "wind tower replacement" type pulse coherent wind laser radar. It is compact, low power, high precision and is designed and manufactured based on the IEC 61400-12-1:2017 standard.
The wind speed and wind profile of any 30 height gates from 20m to 350m above the lidar can be continuously detected throughout the day.
It is suitable for wind resource exploration and evaluation, wind turbine power curve test, wind power prediction, complex terrain wind shear analysis, atmospheric boundary layer dynamics research and other fields.
Wide width range: 20m~350m, adapt to various impeller diameters and installation environment
High precision: 0.1m/s, tested by IEC61400-12-1: 2017 international standard
High resolution: second data refresh rate, 1m distance resolution
Easy to carry: small size, light weight, low power consumption, easy to transport
Flexible deployment: simple operation, complementary scenery or fuel cell power supply
Automatic unattended observation: remote networked data acquisition and device monitoring
Strong robustness: continuous and stable operation in harsh environments on land and at sea
| Specifications | Parameter |
|---|---|
Wavelength | 1.5μm Eye-safe |
Detection height range | 20m～350m |
Spatial resolution | Software can be configured with any 30 heights in the range of 20-350m, the highest resolution is 1m |
Data updating time | 1s～10min（configurable） |
Wind speed range | 0～75m/s |
Wind speed accuracy | ≤0.1m/s |
Wind direction accuracy | ＜3° |
| Data product | Second-order and time-average data include wind speed and direction, vertical speed, maximum and minimum horizontal wind speed, wind speed mean square error (turbulence intensity), |
Weight | ＜30kg |
