Product Description

Based on the principle of optical pulse coherent Doppler shift detection, WindMast PBL can meet the high-precision and refined detection requirements of atmospheric three-dimensional wind field in the atmospheric boundary layer.

Real-time output of wind profile, turbulence intensity, vertical airflow, boundary layer (cloud bottom) height, SNR (signal-to-noise ratio), backscattering intensity, ground temperature and humidity, and other data products.

It is widely used in meteorological climate research, weather forecasting model assimilation, atmospheric material flux and pollutant area transmission and diffusion research, low-altitude wind shear detection and many other fields.

Functional features and advantages

Efficient cost ratio: ultra-low blind zone, high efficiency and cost-effective mini-wind profile solution detection system

Large range: 30m minimum measurement height, 15m distance resolution

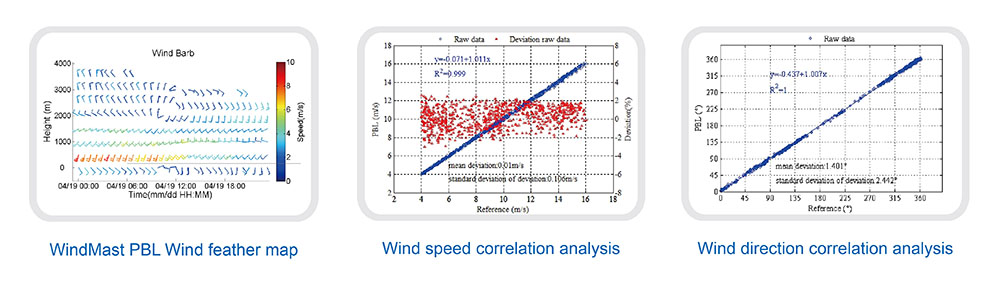

High precision: 0.1m/s, tested by IEC61400-12-1: 2017 international standard

High resolution: second data refresh rate, 15m distance resolution

Easy to carry: small size, light weight, low power consumption, easy to transport

Flexible deployment: easy to operate, support mobile platform navigation measurement

Automatic unattended observation: remote networked data acquisition and device monitoring

Strong robustness: continuous and stable operation in harsh environments on land and at sea

Technical specifications
