2020 hot sale patented Fast Speed Wire Straightening and Cutting Machine TQ1.6-6

2020 hot sale patented Fast Speed Wire Straightening and Cutting Machine TQ1.6-6

Introduction of Wire Straightening and Cutting Machine:

Wire Straightening and Cutting Machine is used to straight wire or rebar and then cut it into the needed length.

It can do a prepare work for the wire mesh welding machine. So it is widely accepted to the factory who is dealing with wires and wire mesh. Also widely used in construction area.

Advantages of Wire Straightening and Cutting Machine:

• CONET Patent No.:  ZL2014 2 0485063.6; ZL2014 2 0485062.1; ZL2012 2 0427241.

• with invention patent technology, the No. 1 in Asia and the advanced one in the world.

• Max. straightening speed: 180m/min. ( In asia normal max. straightening speed 130 m/min.)

• Straightening wire surface: No scratch

• Accuracy of length:  ±1mm

• Linearity of straightening:  ≤2mm/m

• Main electric parts: Adopt famous brand from Germany & Taiwan

• Wire diameter: Φ1.6-Φ6mm; Φ3-Φ12mm

• Material: Low / high carbon steel wire; Galvanized Steel Wire; SS Wire; Alloy Steel; High tensile strength steel etc.

• Steel wire surface: Plain wire & deformed bars

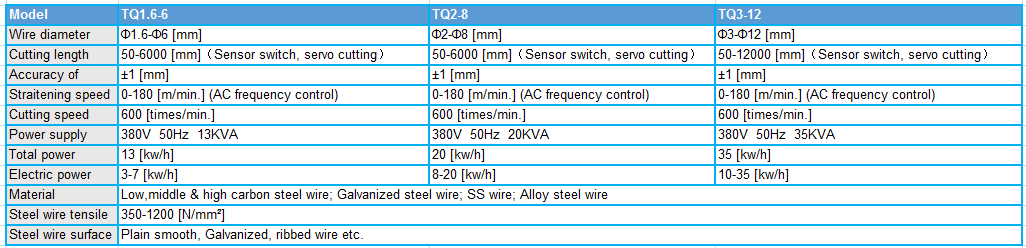

Technical Parameter of Wire Straightening and Cutting Machine:
