XFP 10G-LR 1310nm 10km LC SMF DDM XFP Transceiver

ID:20101222901

Category: Electrical & Power Energy Communication Equipment

EXW Price:US$ 22.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

sfp transceiversfp moduleoptical fiber moduletransceiver modulesfp 100gDACAOCCopper SFPXFP

Payment Method:

L/CT/T

Product Category

Electrical & Power Energy > Communication Equipment

Trademark

YXFiber

Product Package

anti-static plastic bag

Specification

XFP 10G 1310nm 10km LC

Place of Origin

China

Port

Wuhan

XFP 10G-LR 1310nm 10km LC SMF DDM XFP Transceiver

Form Type	XFP	Max Data Rate	10G
Wavelength	1310nm	Max Cable Distance	10km
Interface	LC duplex	Optical Components	DFB
TX Power	-7~1dBm	Receiver Sensitivity	< -14.0dBm
Cable Type	MMF	Protocols	MSA Compliant

PRODUCT DESCRIPTION

YXF-XP-S31L-10D is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for

high-speed communication applications that require rates up to 11.3Gb/s, it designed to be compliant with XFP MSA. The module data link up to 20km in 9/125um single mode fiber.The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Features:

? Compliant to INF-8077-XFP MSA

? Data Rate from 9.95 Gbps to 11.3Gbps

? 1310nm DFB Transmitter, PIN Photodiode and TIA

? SM 9/125um up to 10Km

? Duplex LC connector

? Built-in digital diagnostic monitoring functions

? All-Metal housing for superior EMI Performance

? Power dissipation < 1.5W, Single 3.3V power supply

? Operating Case Temperature Standard: 0℃~+70℃

? Protocol-independent,XFI Interface

? Hot Pluggable

? ROHS6 Compliant

Applications:

? SONET OC-192 SR-1&SDH STM I-64.1

? 10GBASE-LR/LW 10Gigabit Ethernet

? 10G Fiber Channel

Widely compatibel:

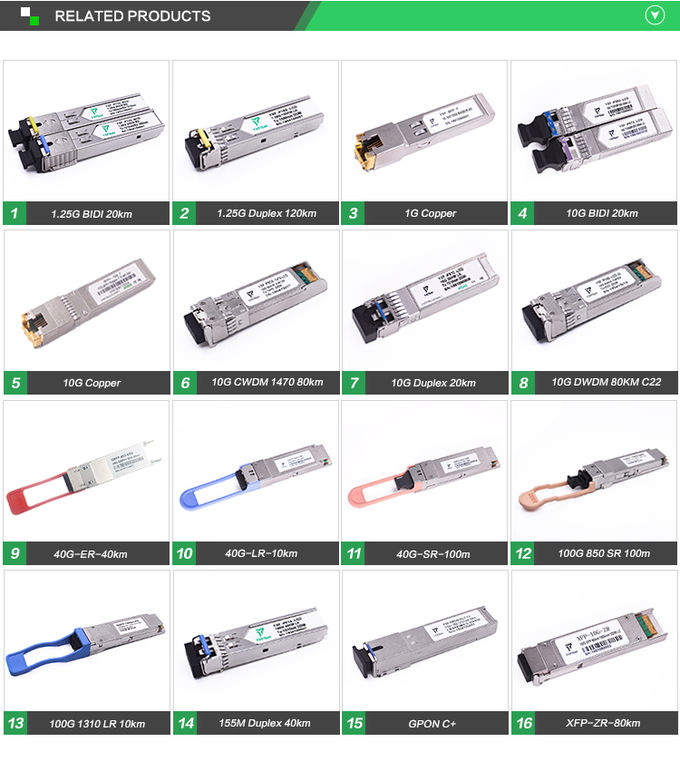

related products.jpg

Company profile:

company profile.jpg

Exhibition and customer visiting

customer visiting.JPG

Package and shipping:

FAQ:

Q1. Do you provide samples? Is it free or extra?

Yes, but we need to charge for samples, we will return sample fee in the later order

Q2. What is your MOQ and the lead time?

We do not have MOQ, 1sample is available

Lead time: 1~3 working days for samples, 3~5 days for mass

Q3. What is your terms of payment?

Pament≤5000USD, 100% in advance

Payment> 5000USD, 40%T/T in advance, balance before shipment

Q4. How about Precautions?

Storage in anti-static box

When used, please ensure that the voltage is normal and stable

Q5. What is your after-sales service?

All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support

Q6. Could I use our own logo and label?

Yes, we could provide OEM service and make the products with your own label
