Copper SFP SFP-T 10G 30m RJ45 CISCO compatible

Copper SFP SFP-T 10G 30m RJ45 CISCO compatible

Description:
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin,  PHY IC be reset.

Features :

1. Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T/100base-Tx on line port

2. Support 10Gbase-R / 5Gbase-R / 2.5Gbase-X / SGMII on host port

3. Hot-pluggable SFP footprint

4. Compact RJ-45 connector assembly

5. RoHS compliant and lead-free

6. Single +3.3V power supply

7. 10 Gigabit Ethernet over Cat 6a cable

8. Ambient Operating temperature: 0°C to +65°C




Application:
? LAN 10/100/1000Base-T
? Gigabit Ethernet over Cat 5 Cable
? Switch to Switch Interface
? Router/Server Interface

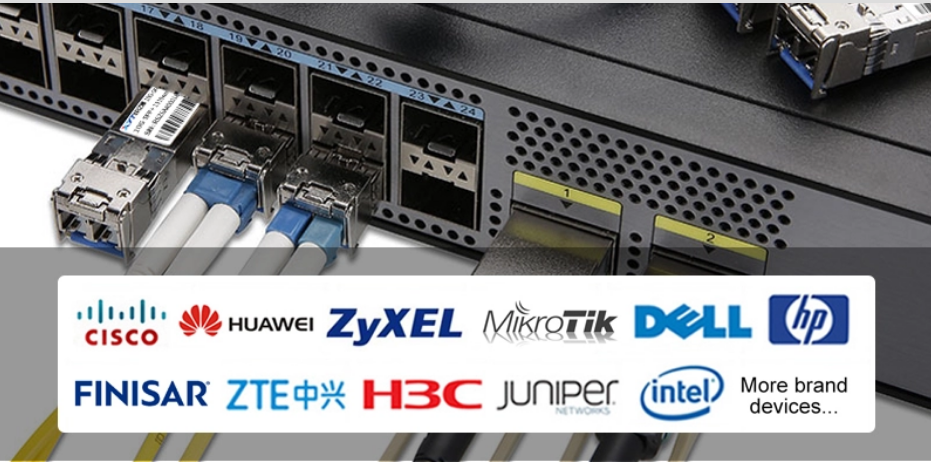

Widely compatibel:

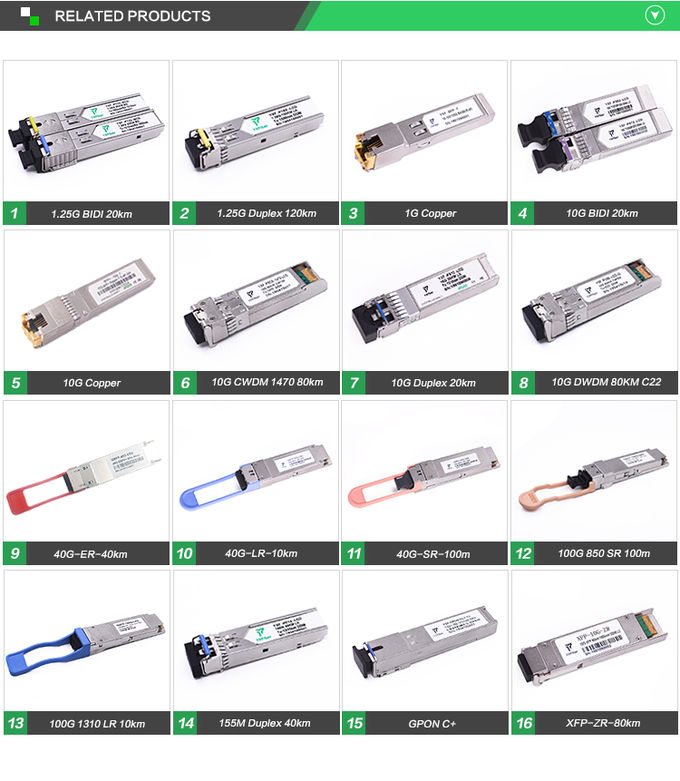

Related products:

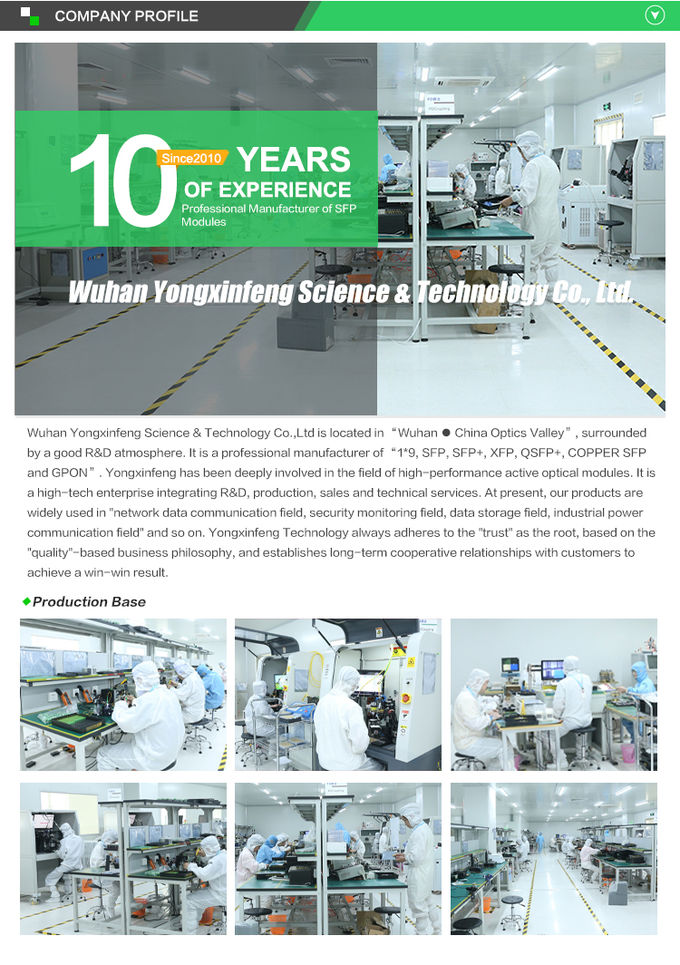

Company profile:

Exhibition and customer visiting

Package and shipping:

FAQ:

Q1. Do you provide samples? Is it free or extra?

      Yes, but we need to charge for samples, we will return sample fee in the later order

Q2. What is your MOQ and the lead time?

       We do not have MOQ, 1sample is available

       Lead time: 1~3 working days for samples, 3~5 days for mass

Q3. What is your terms of payment?

        Pament≤5000USD, 100% in advance

        Payment> 5000USD, 40%T/T in advance, balance before shipment

Q4. How about Precautions?

       Storage in anti-static box

       When used, please ensure that the voltage is normal and stable

Q5. What is your after-sales service?

       All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support

Q6. Could I use our own logo and label?

       Yes, we could provide OEM service and make the products with your own label
