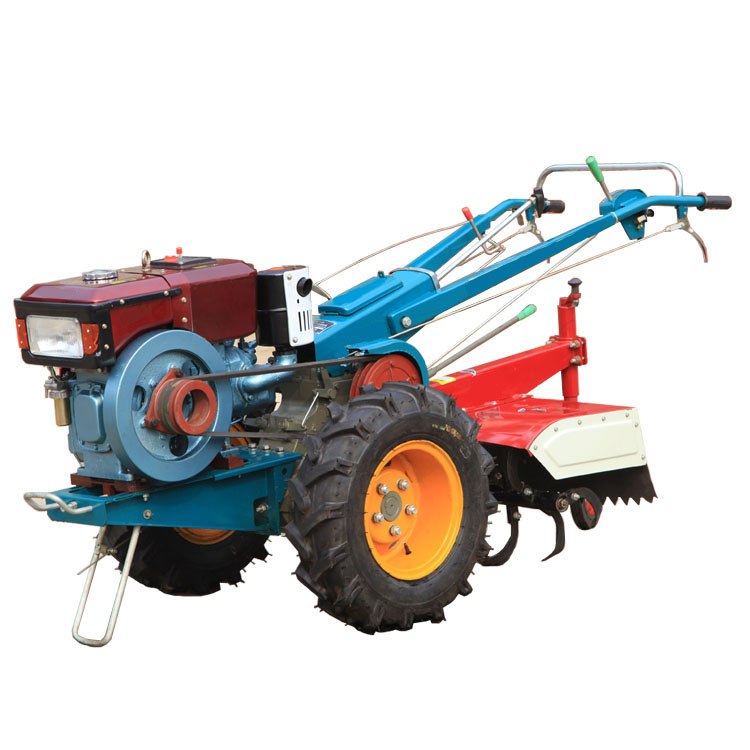

1.Stepless regulation of wheel tread:760-930 mm
2.Two options of rotary tiller:1GS9L-90、1GS9L-100
3.Multiple working land types:muddy,mountainous land,plain,terrace field
4.Match with all kinds of farm implements:plough, mower,trailer,sprayer, reaper machine, seeder machine etc.
| Model | QLN-101C | QLN-111 | QLN-121 | QLN-151-1 | QLN-181 | |
| Overall Dimensions(L×W×H)(mm) | 2210*920*1130 | 2260*930*1120 | 2360*1100*1090 | 2420*1600*1230 | 490*1600*1265 | |
| Wheel Tread(mm) | 756、704、656 | 735~765 | 760~930 | 760~1410 | 780~1420 | |
| Min. Ground Clearance(mm) | 205 | 205 | 230 | 260 | 241 | |
| Min. use weight(kg) | 285 | 300 | 336 | 405 | 465 | |
| Gear | F6+R2 | |||||
Speed(km/h) | Forward | 1.9、2.72、4.55 7.25、10.37、 17.33 | 2.2、3.15、5.62、 8.37、11.99、21.4 | 2.53、4.49、7.54;9.36、16.63、27.89 | 2.6、4.63、7.78 ; 9.65、17.14、 28.76 | 2.58、3.95、6.17、 7.71、11.81、18.49 |
| Reverse | 1.54; 5.86 | 1.78、6.77 | 1.99; 7.39 | 2.06; 7.6 | 1.94、5.81 | |
Engine Brand | Brand | Qianli Niu | Changzhou/ Changfa | |||
Type | diesel Single cylinder; horizontal; 4 stroke; water cooled | |||||
Rated Power(km/hp) | 7.35/10HP | 8.08/11HP | 8.82/12HP | 11/15HP | 13.2/18HP | |
Rated Speed(r/min) | 2300 | 2200 | 2400 | 2200 | 2200 | |
Bore × Stroke (mm) | 90×90 | 95×100 | 95×98 | 100×115 | 110×115 | |
| Specific Fuel Consumption(g/kw*h) | ≤265.2 | ≤245 | ≤246.2 | ≤269.6 | ≤269.6 | |
| Tyre | 6.00-12 | 6.00-12 | 6.00-14 | 6.00-14 | 6.00-16 | |
1. when loading tractor ,we will delivery some normal spare part and tools for free together with tractor , including tool box .
2.When the tractor have problem in warranty ,please take picture as evidence. After make sure (the problem must not be caused by man made destructive factors), we will send the spare parts for free at once.
3.After the warranty ,the spare parts coast is paid by customer.
Warranty
12 months is from the date of commissioning, or at the latest, 12 months from delivery.
