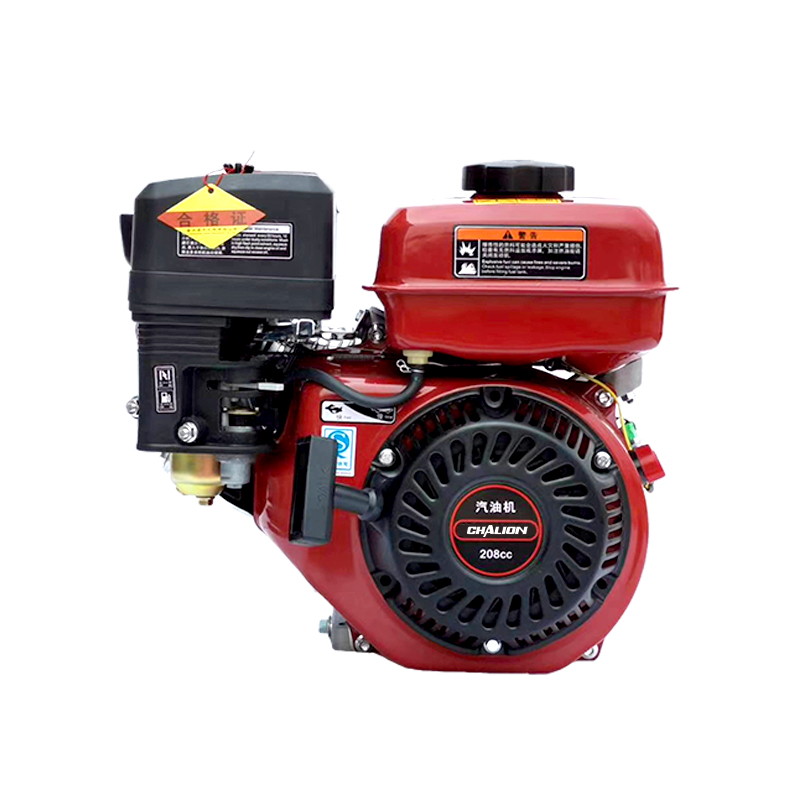

1. GM170F: Using Honda exterior design, economical and durable, easy to start.
2. GM170F-D: New Independent design, using engineering strengthened use structure, aluminum alloy cylinder head cover, all-steel camshaft, the used life of the whole machine is stronger and longer.

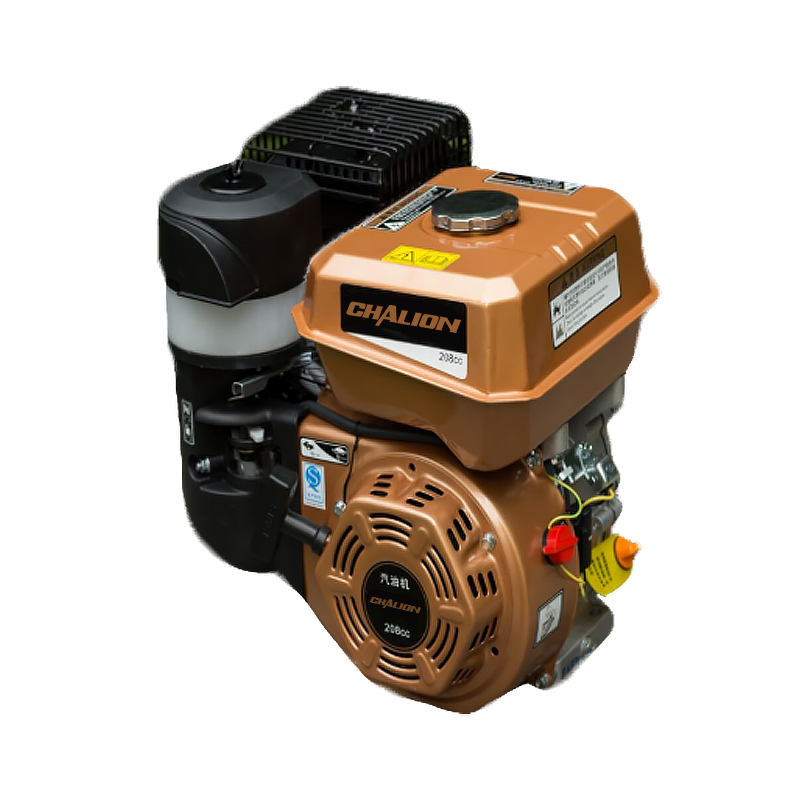

3. GM170F-K: Independent design, closed rotary air intake, muffler anti-scalding device, large oil tank structure.
Product parameter:
Model | GM170F | GM170F-D | GM170F-K |
Engine type | singe cylinder、four stroke、Air cooling, OHV,25° | ||
Bore*Stroke（mm） | 70×54 | ||
Displacement（ml） | 208 | ||
Compression | 8.5:1 | ||
Max power（kW）/（r/min） | 4.2/3600 | ||
Rated power（kW）/（r/min） | 3.8/3600 | ||
Max Torque（N.m）/（r/min） | 13.2/2500 | ||
Ignition system | Contactless Transistorized Ignition | ||
Start system | Hand / Electric | ||
Fuel Tank（L） | 3.6 | 5 | |
Air filter | Semi-dry/foam/Oil bath | Oil bath | |
oil tank（L） | 0.6 | ||
Oil consumption rate（g/kW.h） | ≤395 | ||
Dimension (mm) | 315×365×335 | ||
Net/Gross Weight（kg） | 15/17 | ||
Certificates:
1. when loading tractor ,we will delivery some normal spare part and tools for free together with tractor , including tool box.
2.When the tractor have problem in warranty ,please take picture as evidence. After make sure (the problem must not be caused by man made destructive factors), we will send the spare parts for free at once.
3.After the warranty ,the spare parts coast is paid by customer.
Warranty
12 months is from the date of commissioning, or at the latest, 12 months from delivery.
