seam lock machine

Manual Decoiler

1: Max width of raw material :700mm

2: Capacity:3000kgs

3: Inner diameter of coil: 508±30mm

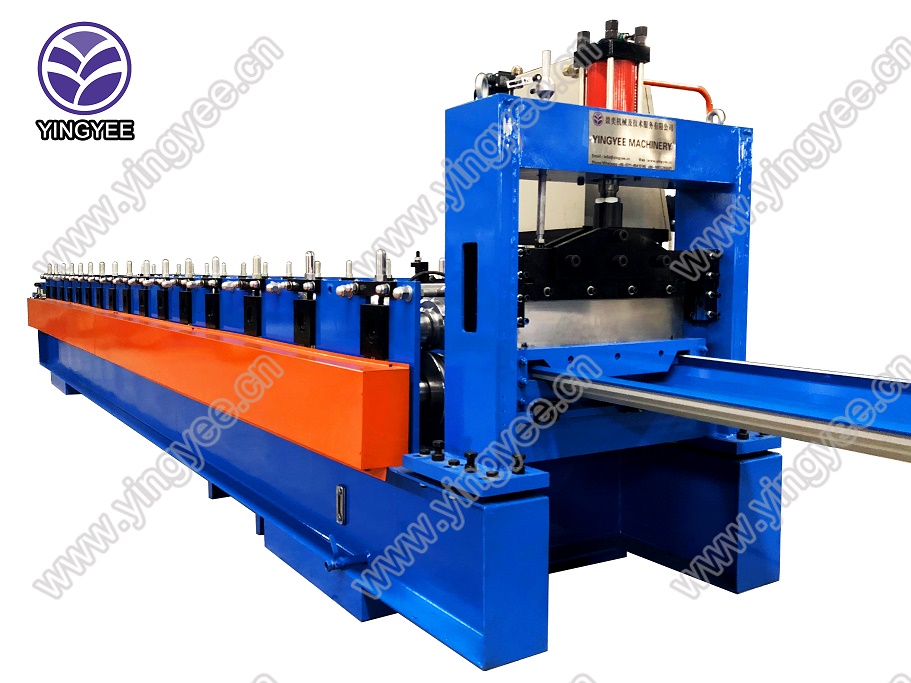

roll forming machine

• 1. Material:0.5-1.0mm PPGI

• 2. Differet side min width size 200mm, max600mm.

• 3. Material input size:according to the drawing，suggest610mm

4. Two Main motor power station: 7.5kw  Frequency speed control

3. Forming speed about:16 m/min

4. Quantity of rollers:   16 rollers

6. Shaft Material and diameter:  45# forge steel Φ75mm.

7.Material Of The Stations: 18mm A3 steel

8.Tolerance: 10m+-1.5mm

9.Way Of Drive: Chain

10.Material of forming rollers: Gcr15, hard chrome coated

11.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

12: Voltage: 380V/ 3phase/ 50 Hz(according to customer choice)

13.Machine weight :Around 9 tons

Cutting

(hydraulic guide)

1.Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.

2.Material of blade: GCR12with heat treatment

3.Length measuring: Automatic length measuring

4.Tolerance of length: 10+/- 1.5mm

5.the cutting part include three part blade.

6.hydraulic power:4kw. Max 10Mpa.

PLC control system

1.Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (or customized )

2.Automatic length measurement:

3.Automatic quantity measurement

4.Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

5.Length inaccuracy can be amended easily

6.Control panel: Button-type switch and touch screen

7.PLC is Delta, the touch screen is Winview, the inverter is Schneider, the encoder is Omron

Color

Dark Blue(or any customized color before purchase )

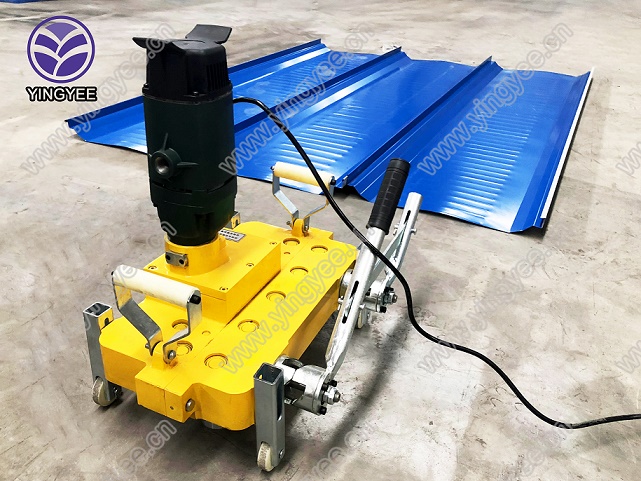

Electronic seam lock machine

Include seam lock machine with good quality 2 set.

Manual seamer

2 sets
