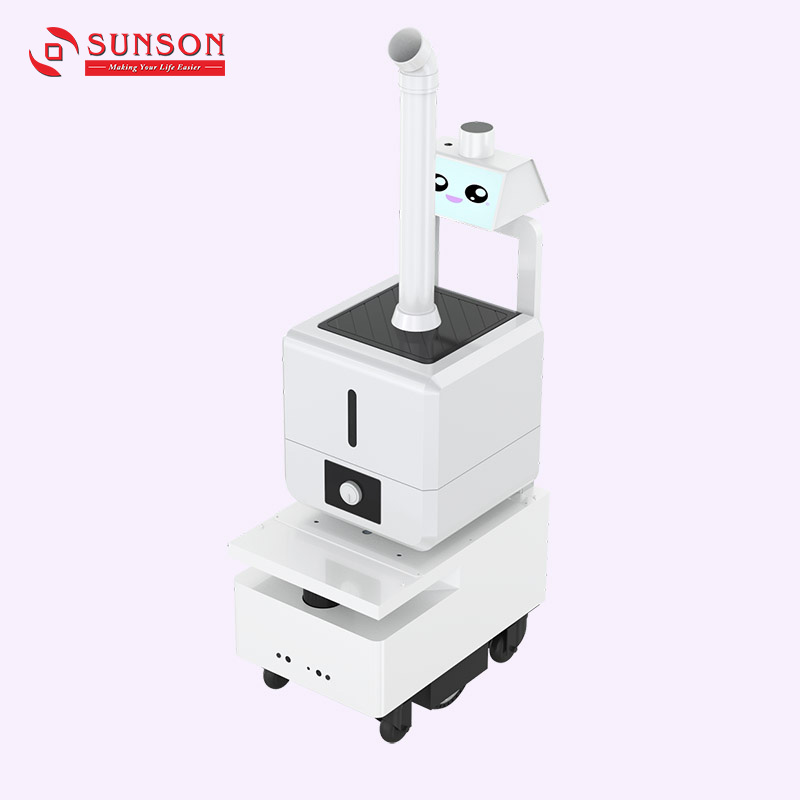

Automatic Navigation Disinfection Spray Robot
SUNSON Automatic Navigation Disinfection Spray Robot is hot sale anti-pandemic equipment invented to provide virus-free and safe indoor areas for productions, transportations and hospitals. With built-in stable and reliable automatic positioning and route planning system, it can navigate itself accurately throughout the complete disinfection process. The large capacity and durable batteries can afford comprehensive working and make a disinfection area of max 5000 square meters at one charge during 6 hours’ continuous running.
Main Features
1) Autonomous path planning, customized disinfection route
2) Multimode indoor auto-pilot technology, V-SLAM + laser SLAM flexible positioning, stable navigation.
3) Super battery life, good for 3-4 hours continuous running.
4) Globally unique remote automatic and convenient deployment
5) Automatic return for recharging when battery is low.
6) Take the lift independently (optional), jointly work with the lift control system, carry out disinfection jobs across floors.
Specification
Operating system, processor, memory features | |
Operating system | Android（5.1） |
language support | Chinese / English |
Processor type | RK3128 |
Built-in clock | RTC |
LPDDDR3 | 1G |
NAND FLASH | 8GB |
Power on button | Yes |
Scram button | Scram button |
Display | 7 inch, IPS screen（16:9）1024X600 |
7-Inch touch screen | 1024x600 |
External I/O port | 1 USB 2.0 (MICROUSB），RJ45internet access |
Speaker | 4Ω/3W Monophonic speaker |
Wireless technologyAP6255 | Support dual-band 2.4 & 5G, WIFI&BT4.1 802.11b/g/n WLAN(Wireless Local Area Network), 11ac 5.15GHz-5.825GHz |
ROS Navigation Specification | |
Operating system | LINUX |
Processor type | Computer main board i5 ITX-H45-I526LVER:1.1A(4300U) |
NAND FLASH | 32G |
Motor drive | 5.5 "wheel hub motor |
Lidar | 25m TOF lidar |
Gyroscope | Yes |
Single-wire lidar | The working area of the laser with a wavelength of 905nm is 270 degrees |
4G router switches to 2.4G WIFI | 4GCPE-M6 |
512AN HMW module Intel WIFI | Support dual-band2.4&5G WIFI&BT4.1 802.11b/g/n WLAN(Wireless Local Area Network), 11ac 5.15GHz-5.825GHz |
Disinfection Specification of Fog Machine | |
The mist mechanism | Fogging machine: HQ-JS822/135W/ atomization capacity: 3000ML/H/ water tank capacity: 16L |
Battery type | 18650 battery pack 10S8P capacity 20800 mAh/37V |
Battery capacity | 3 to 4 hours |
Power adapter | Input: AC100-240V, 50-60Hz, output: DC42V/ 3A |
Product weight | 42 kg with package |
Color | White |
Main Advantages
1) Reduce personnel contact, reduce the risk of cross-infection
2) High disinfection efficiency, safer method
3) Low costs for reliable services
4) Easy installation and simple deployment
5) User-friendly operation, one-click start disinfection task.
6) Support disinfection agents: sodium hypochlorite, hydrogen peroxide, Peracetic acid, etc.
Application Scenarios
It can be widely applied to the public places like,hospital halls, hotel lobbies, conference halls, classrooms, communication hubs, etc.
