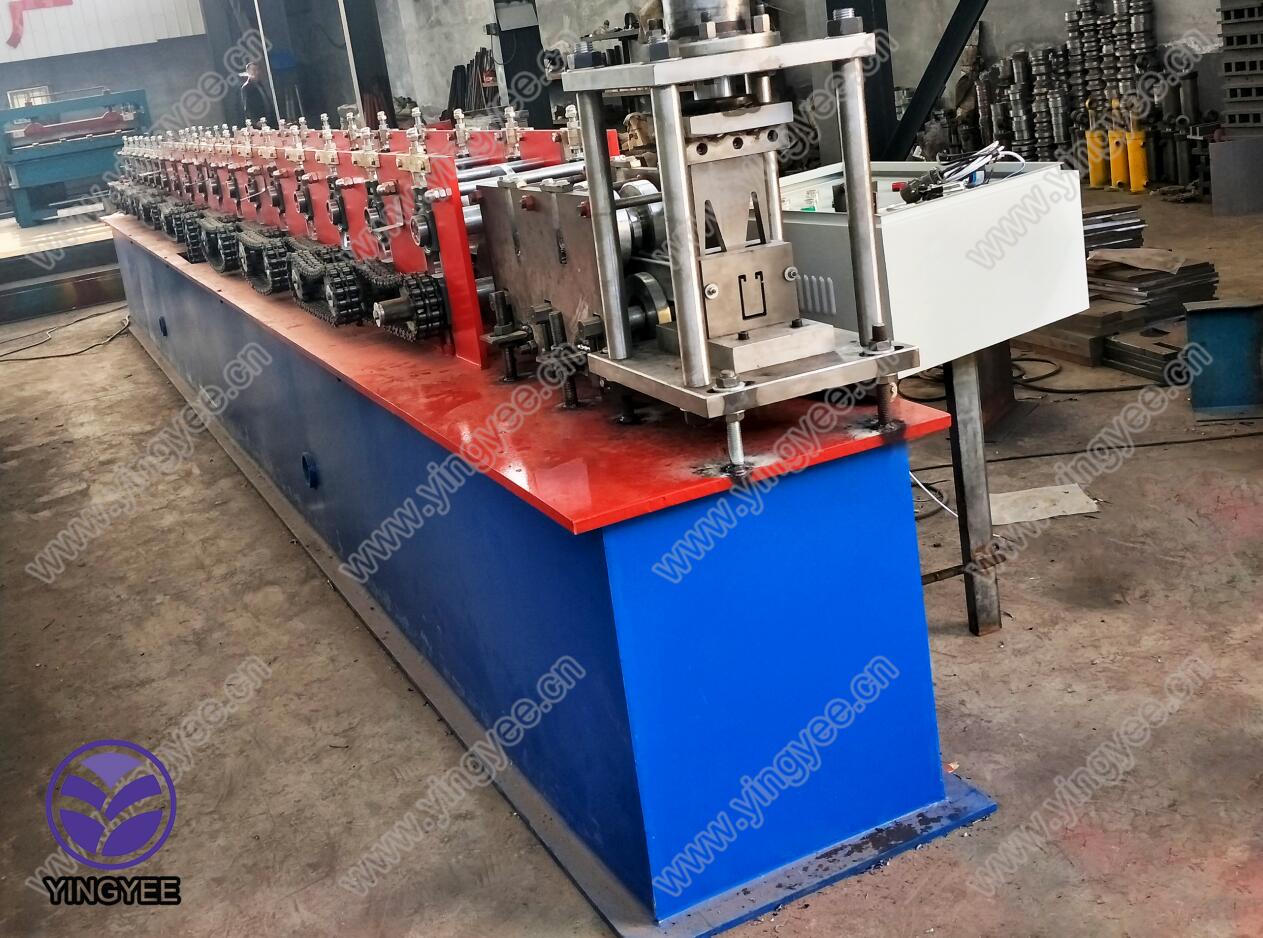

U shape door frame machine
L/CT/T
Shop Shutter Door Rolling Machine
For the Shutter door roll forming machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.2mm, the shape will be design by your demand.
For all the Shutter door roll forming machine , it has many parts:
1. Decoiler the coil.
2. Feeder to the punching holes machine(it can make the shutter door slide cover with holes).
3. Roll forming part, for our mahcine, the forming speed will be 0-30m/min, it is asjustable.Generally we will make the Shutter door roll forming machine with gear drive, it will give machie a strong power to move.

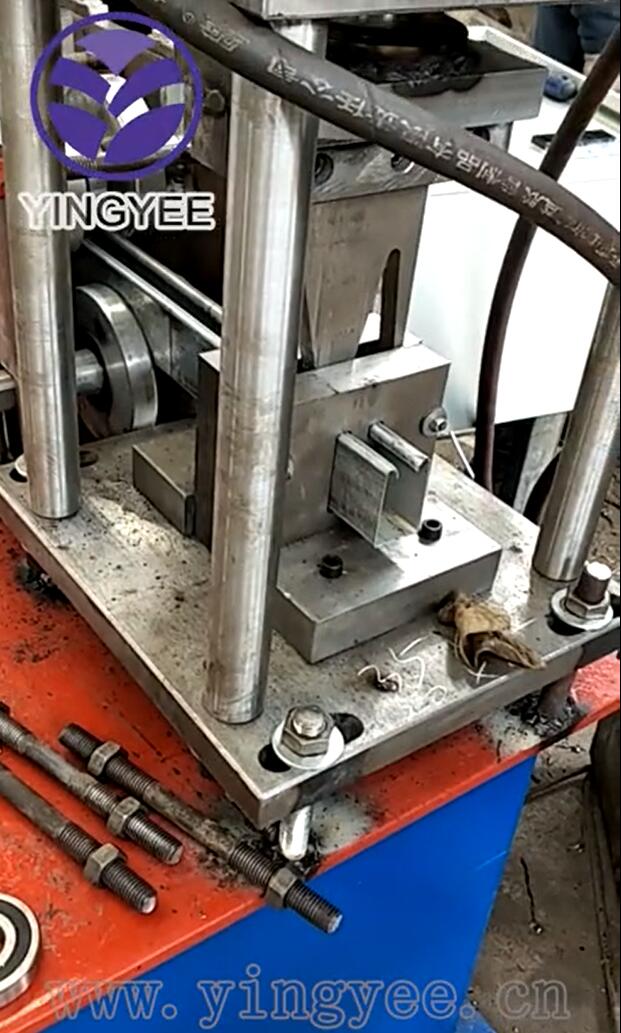

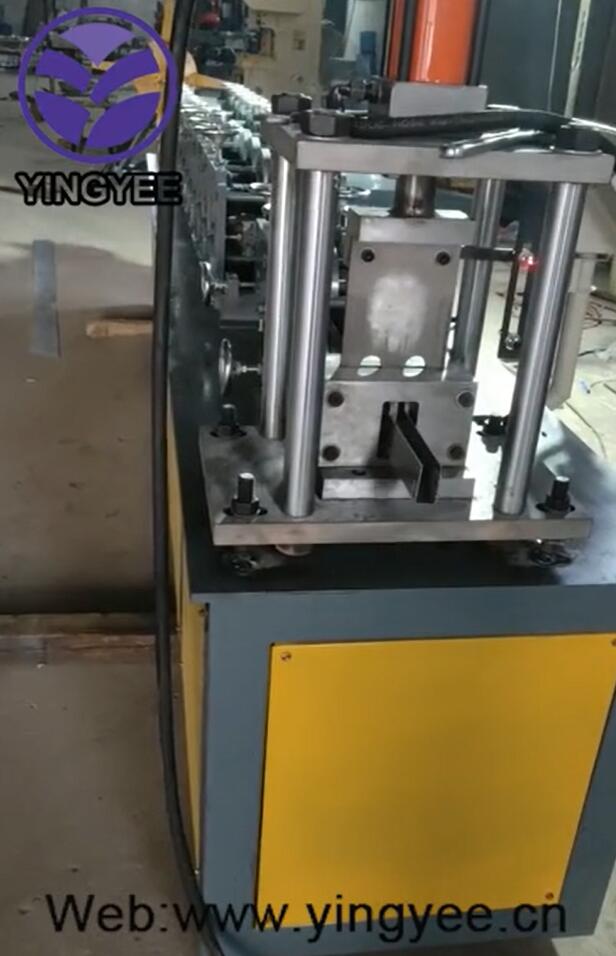

4. Punching the lock holes. This part will together with cutting blade. When it cutting, the machine will punching the holes together.

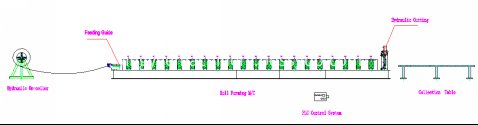

Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |
| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 2 tons |
| Size of the machine | L*W*H 6*0.8*1m |
