Product Description
Roller Shutter Roll Forming Machine
The iron rolling shutter forming machine is totally automatically controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.

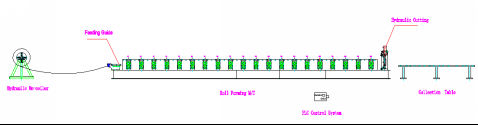

Working Flow:
Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |
| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 1.5tons |
| Size of the machine | L*W*H 5*1*1.5m |
