glazed tile machineroofing sheet forming machineroofing machine
L/CT/T

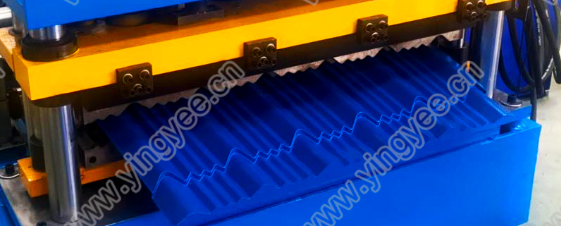

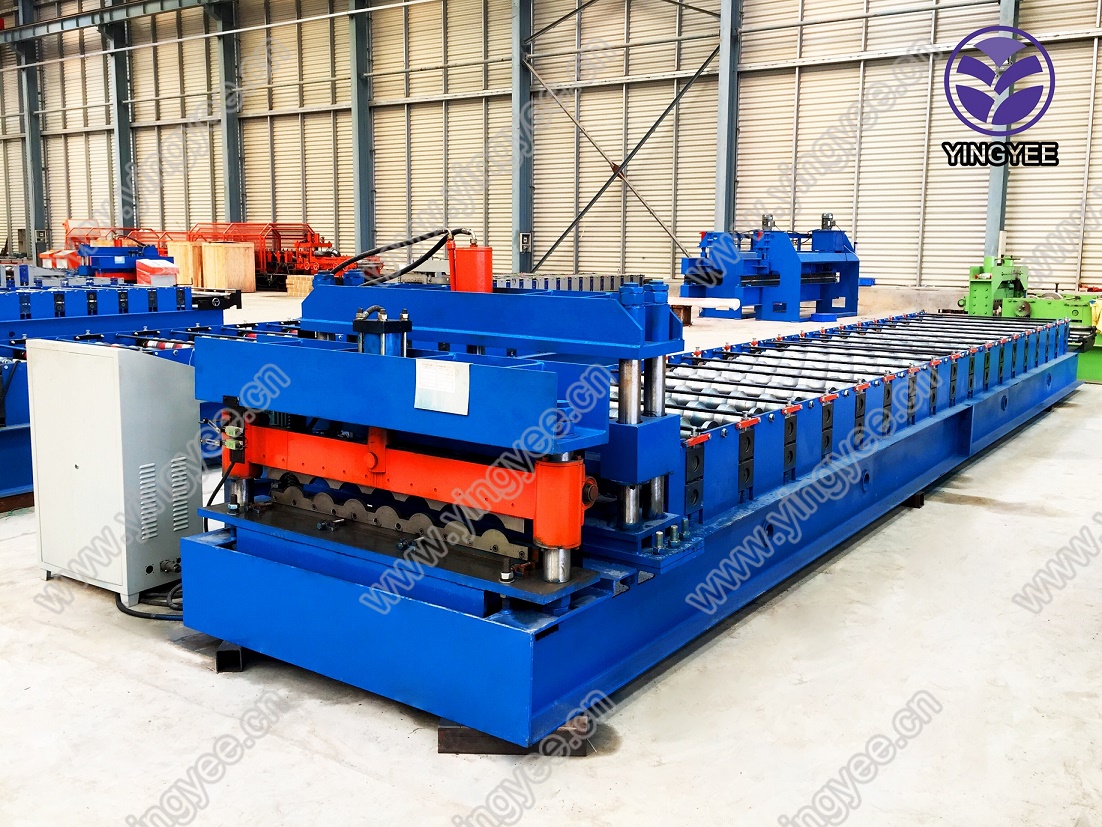

Glazed roof sheet roll forming machine
1. Material thickness range:0.2--0.8mm
2. Main motor power: 5.5 kw
3. Hydraulic station: 4 kw
4. Speed: 3m/min（include punching and cutting）
5. Quantity of rollers:14
6. Material of rollers: 45# with chromed
7. Shaft Material and diameter: ￠75 mm, material is 45# forge steel
8. The body of machine: 350H
9. Tolerance: 10m+-1.5mm
10. Way Of Drive: Chain / gearbox
11. Control system: PLC
12. Material of cutter blade: Cr12 mould steel with quenched treatment 58-62℃
13. Voltage: 380V/ 3phase/ 50 Hz
14.Machine size: length: 8-9m
15 Weight :10 ton/
