PC honeycomb sandwich panel

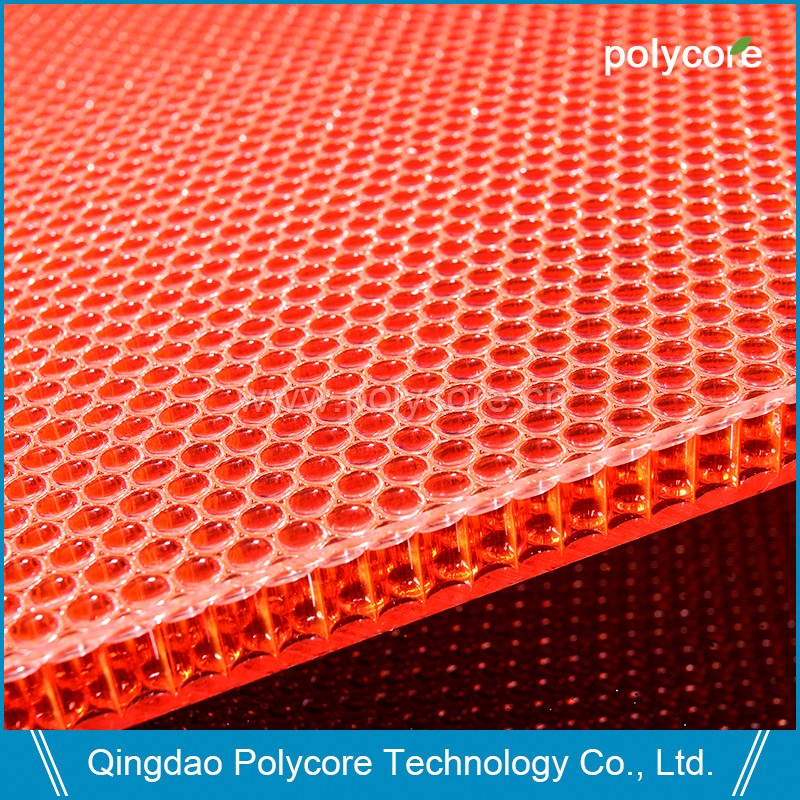

Qingdao Polycore Technology Co.,ltd PC honeycomb composite panel adopted PC honeycomb as core material, polyester material as skin panel to laminated together to make out light weight,stiffness strength,waterproof,fireproof PC honeycomb sandwich panel as decorative panel in many business projects.

Polycore PC honeycomb composite panel surface panel can be selected thermoplastic material ,such as polycarbonate, acrylic, polyester,thickness, size and color according to clients request.

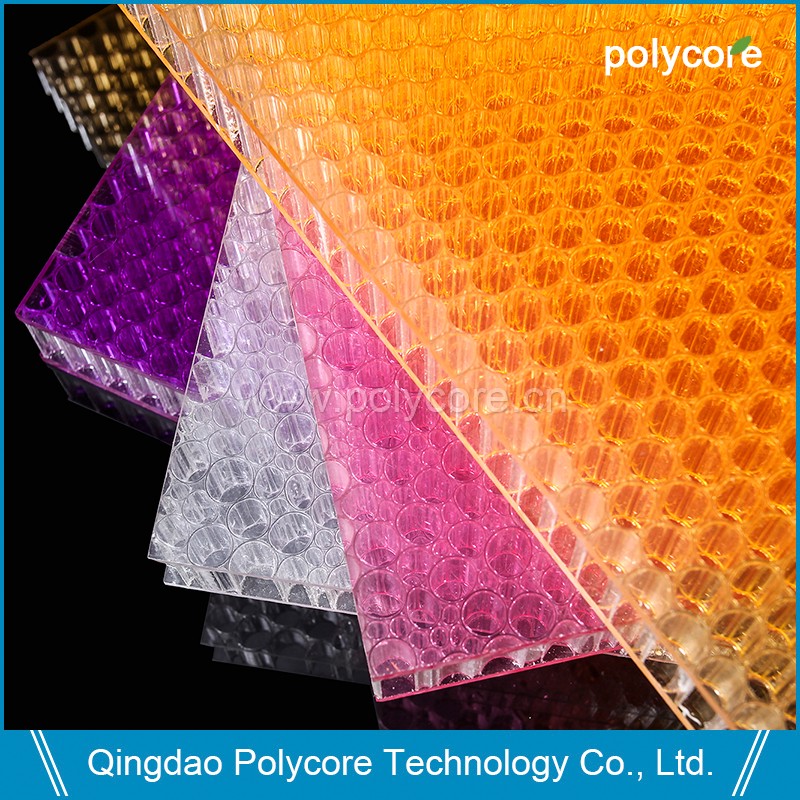

Polycore PC honeycomb composite panel core material can be transparent or colorful PC honeycomb , honeycomb core diameter can be 3.5mm,6.0mm or 8.0mm or irregular diameter mixture.

Polycore PC honeycomb composite panel Properties:

Translucent options

Excellent light transmission

Excellent stiffness with light weight

B2 fire retardant honeycomb core

Consistance with varies material

No sun focusing

Thermal insulation, sound dampen

Corrosion resistance

Rub resistance

Fireproof and waterproof

Radiation-proof.

Environmental protection.

Clean clear

Not deform, Not fade

Impact resistance

No water absorption

Stable in large temperature range

Polycore unique bonding technology enables us to combine a rigid translucent honeycomb core with transparent thermoplastic top sheets resulting in a panel with exceptional optical features.

 Polycore PC honeycomb composite panel- Dripan apply into exterior decoration , interior decoration and special project, such as stands, fairs, fashion show, convert, exhibitions, TV Sets, theater, set design, hotel ,KTV, restaurant, Disco, SPA, Wellness, GYM, bar, chamber, club, panel wall, screen, partition, countertops, ceiling, lounge bar , office, shop fittings, private house, door and so on. It's one kind of newest advertisement and decoration panel.

Polycore PC honeycomb composite panel  standard size is 1220*2440mm,thickness from 10mm to 60mm.Max size within 1220*3000mm.

Polycore PC honeycomb composite panel when Surface skin select PC sheet usually thickness can be 1.0mm,1.5mm,2.0mm, or 2.5mm. Most popular Color is transparent.

Polycore PC honeycomb composite panel when  Surface skin select acrylic sheet usually thickness can be 2.0mm, 3.0mm. Color can be selected from varies colors popular in market.

Polycore PC honeycomb composite panel when surface skin select PE sheet usually thickness can be 1.5mm,2.0mm, or 2.5mm.

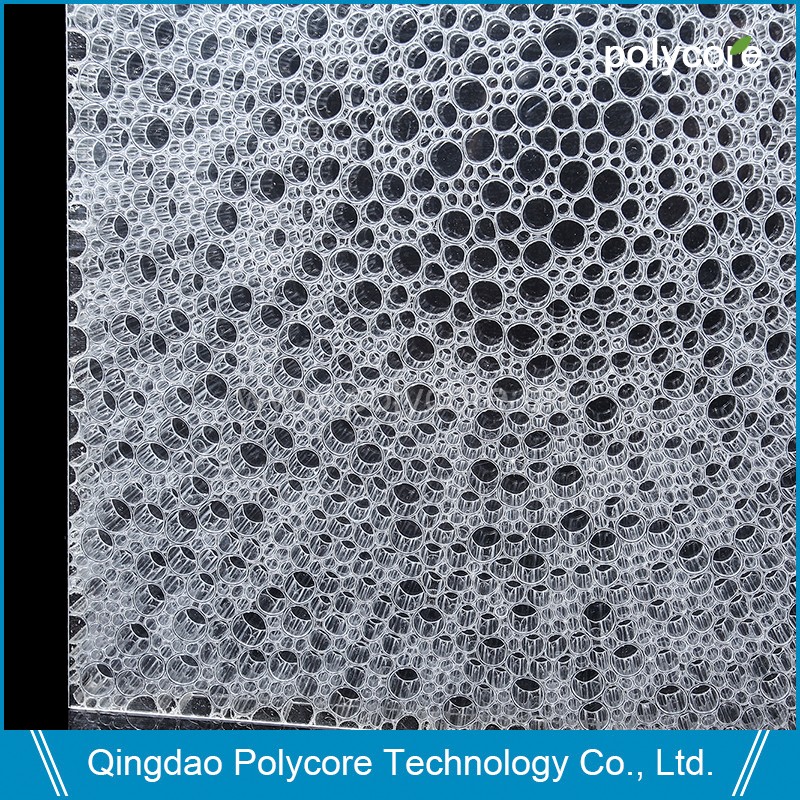

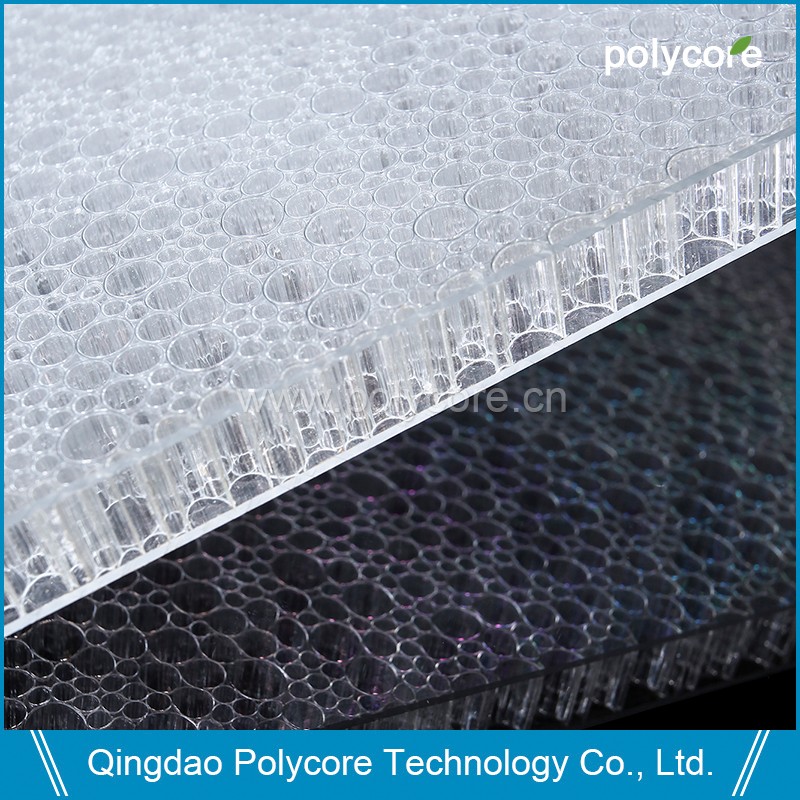

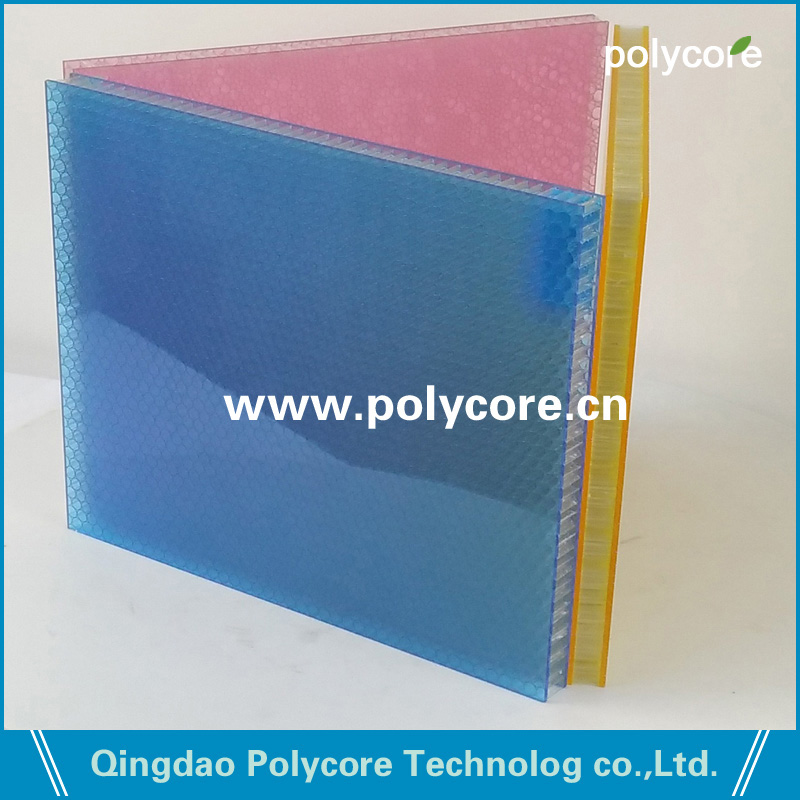

There are two models now in our Polycore PC honeycomb composite panel system,one is OPTpan,which select PC or Acrylic sheet as skin panel laminate on PC honeycomb core to make out OPTpan. If select both sides transparent skin panel,not only light transmission but also visiable on both sides of panel.

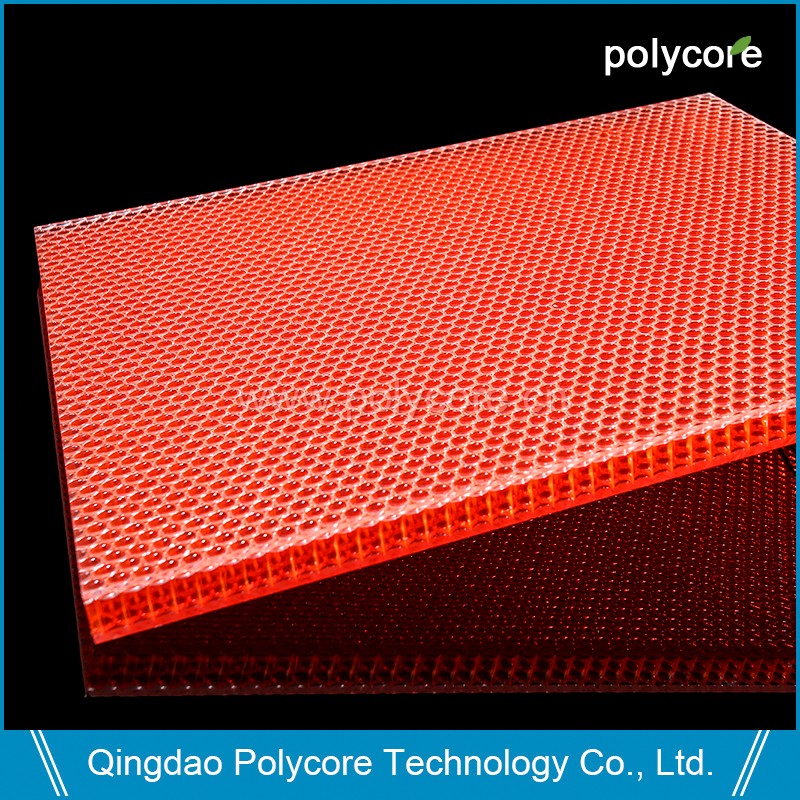

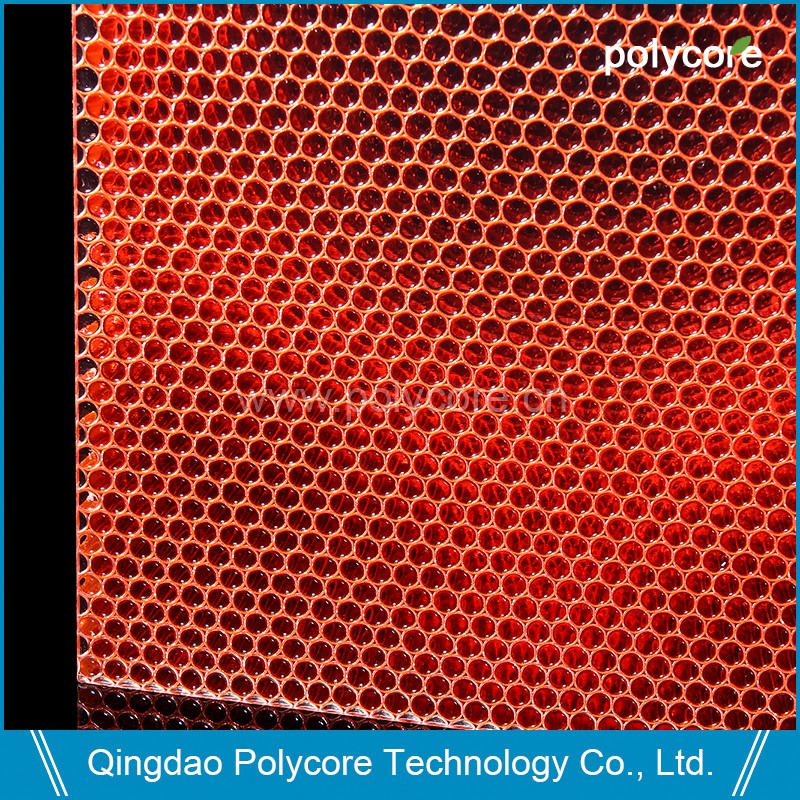

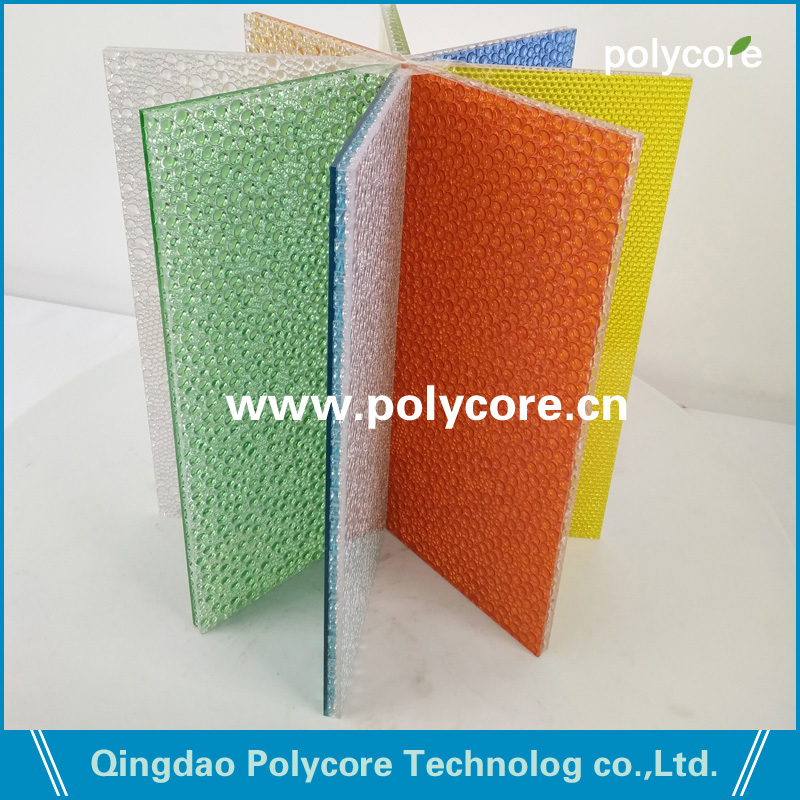

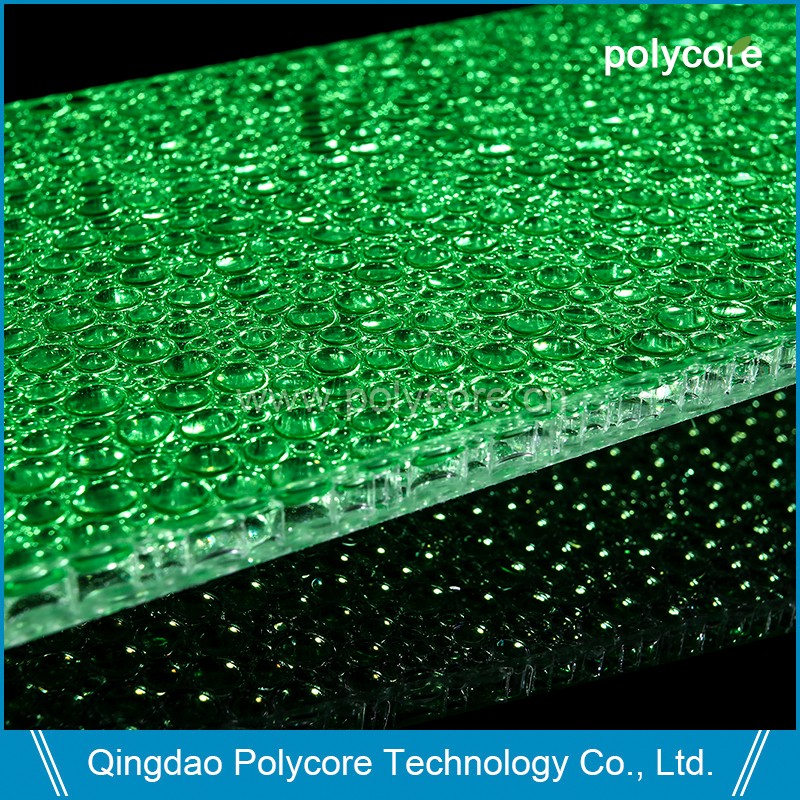

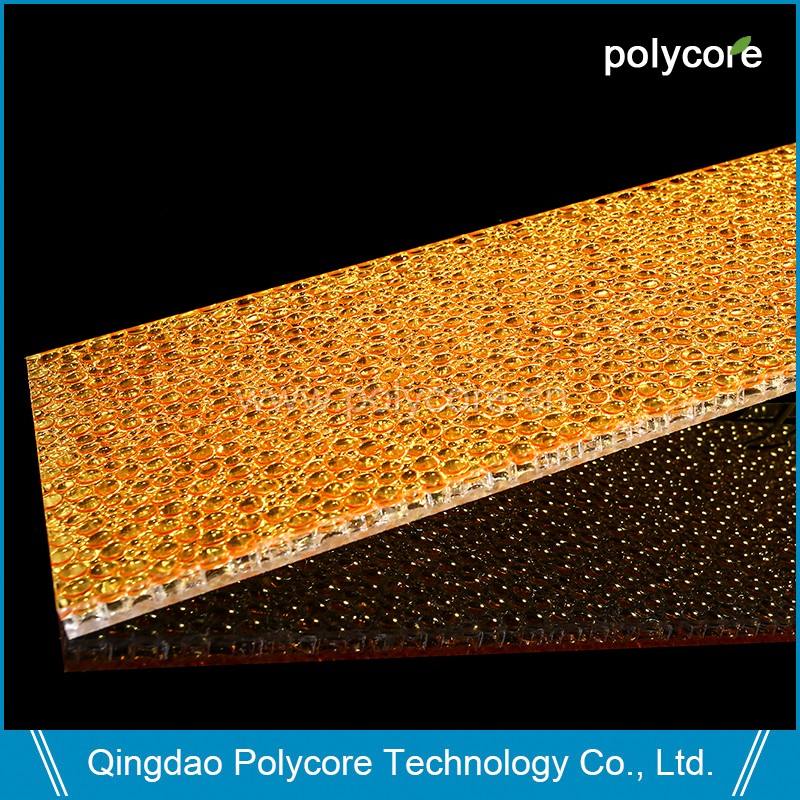

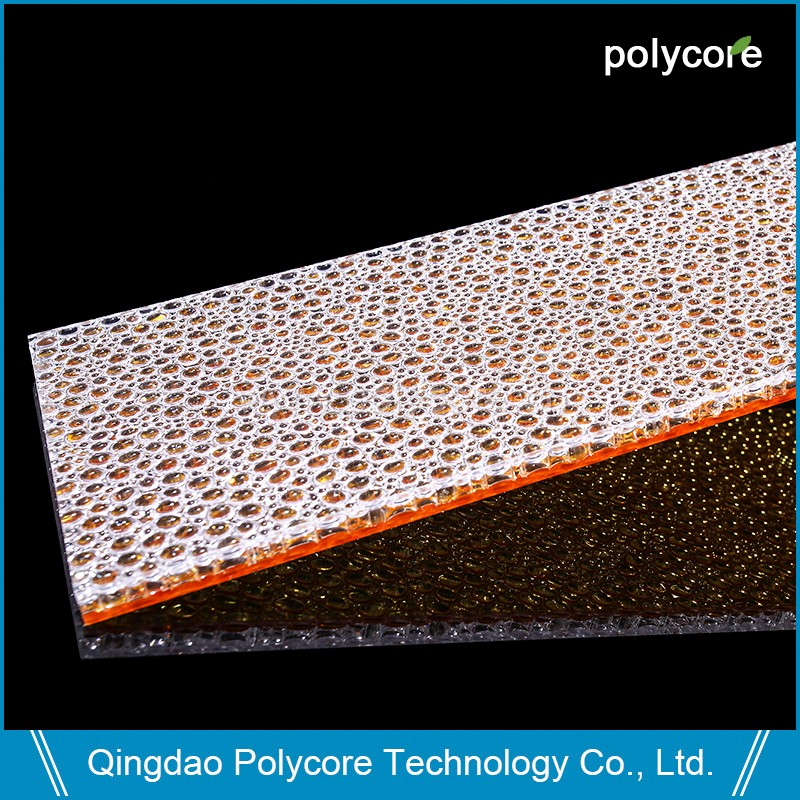

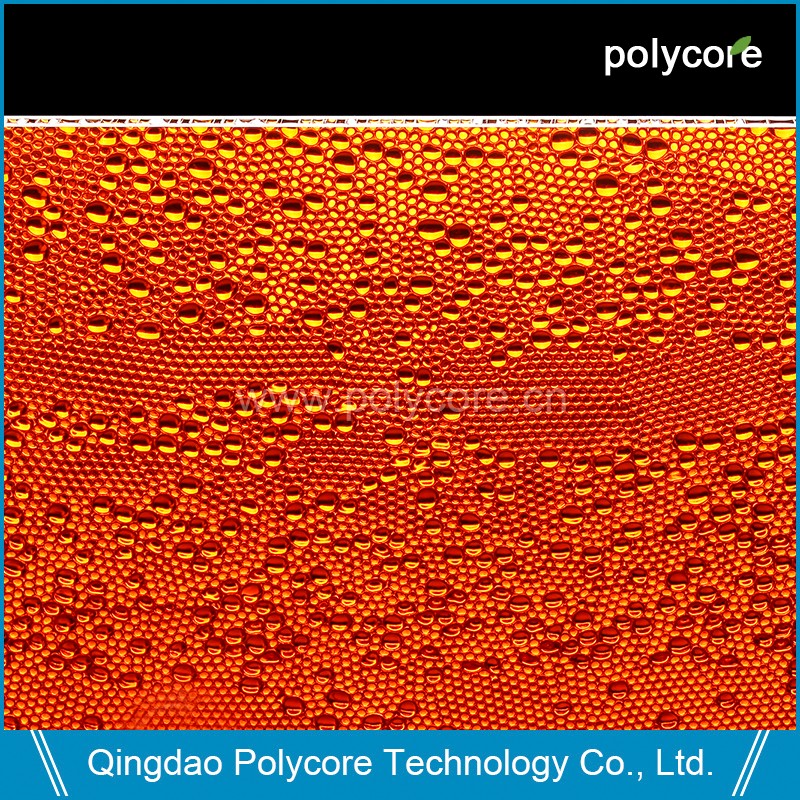

The other one is DRIpan,which select PE or Acrylic sheet as skin panel to melting partly into PC honeycomb core to make out DRIpan.So by DRIpan,even select transparent skin sheet as panel, there is only light transmission but unvisiable to both sides of panel.Partly melting core looks like tear drip on the panel. Dripan is more better in integration than Optpan.

Product performance:

    UV resistance, anti-fire (with the Italian level 1 and German level B1 standard), high compressive strength of the non-slip flooring, outdoor advertising boards with water-resistant and no yellowing and others special products satisfy the user with a wide range of applications

Application:

    Door first, walls, screens, partitions, ceiling, sliding doors, lighting board, table, floor, front desk, shelving, technology ceiling, high-profile floors, displays and lighting systems and so on.

Application of places:

    Can be widely used in hotel, KTV, business space, bars, clubs, office, display and furniture

Product size : 1200x2440mm/ 1200x3000mm

Thickness: 8mm, 10mm, 12mm, 16mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm
