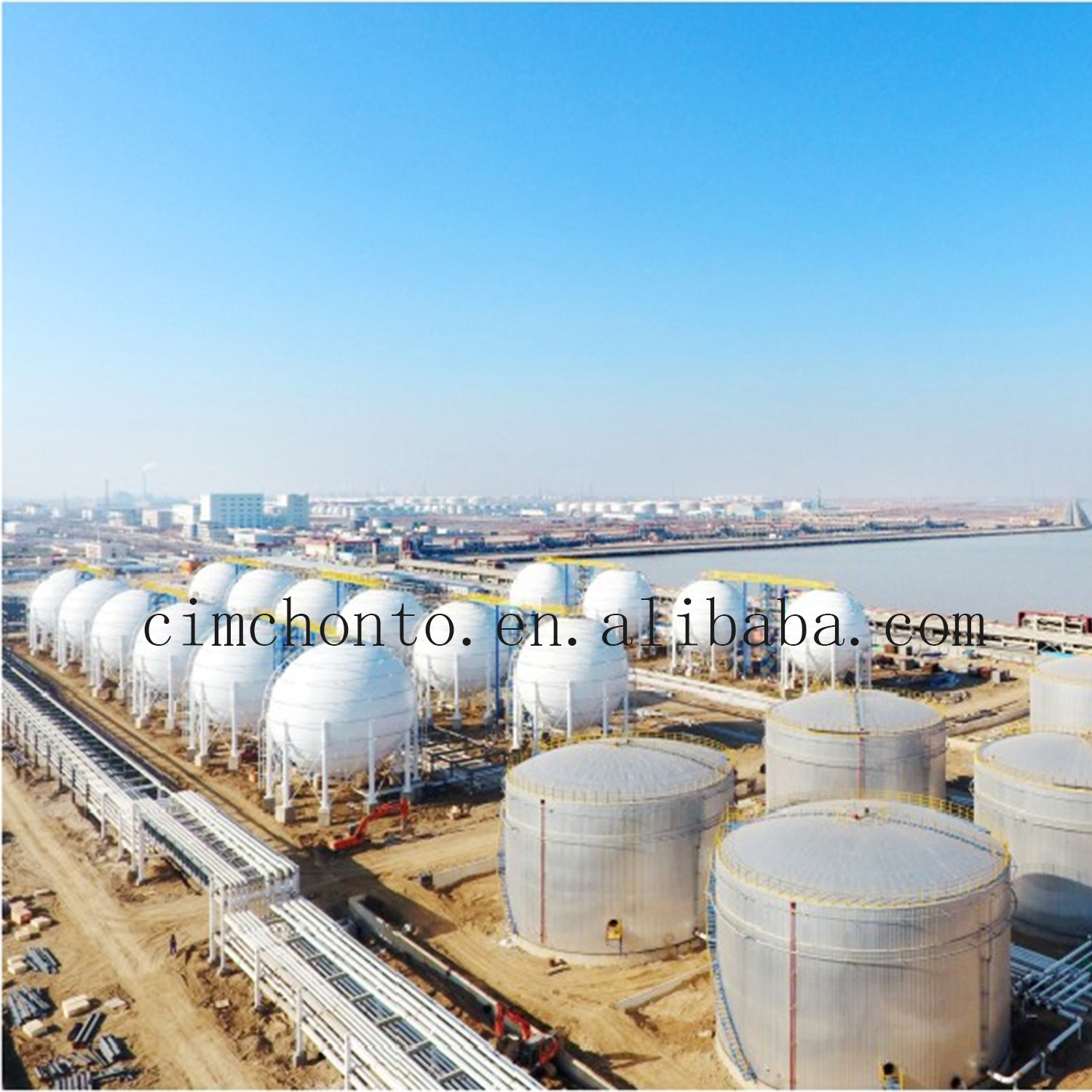

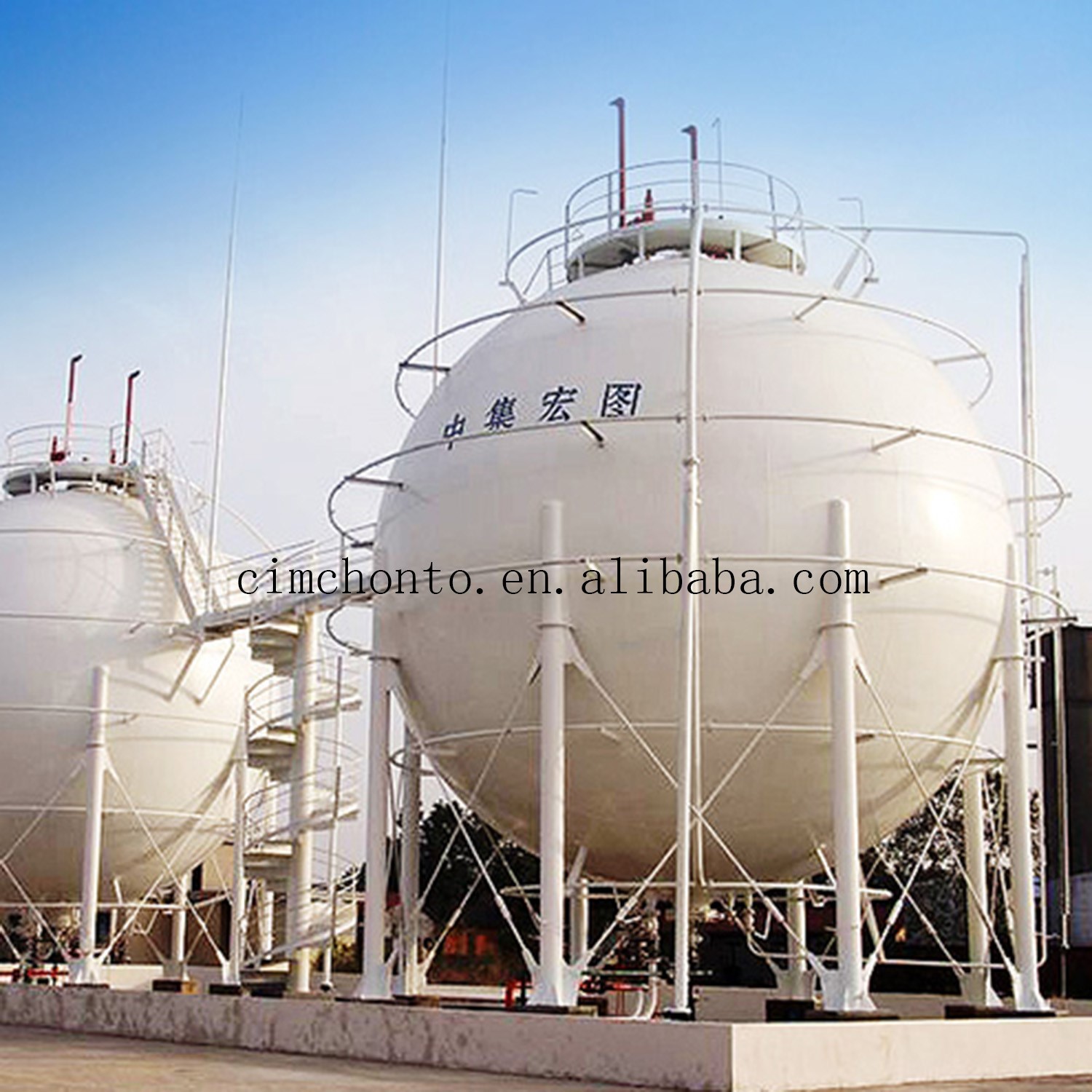

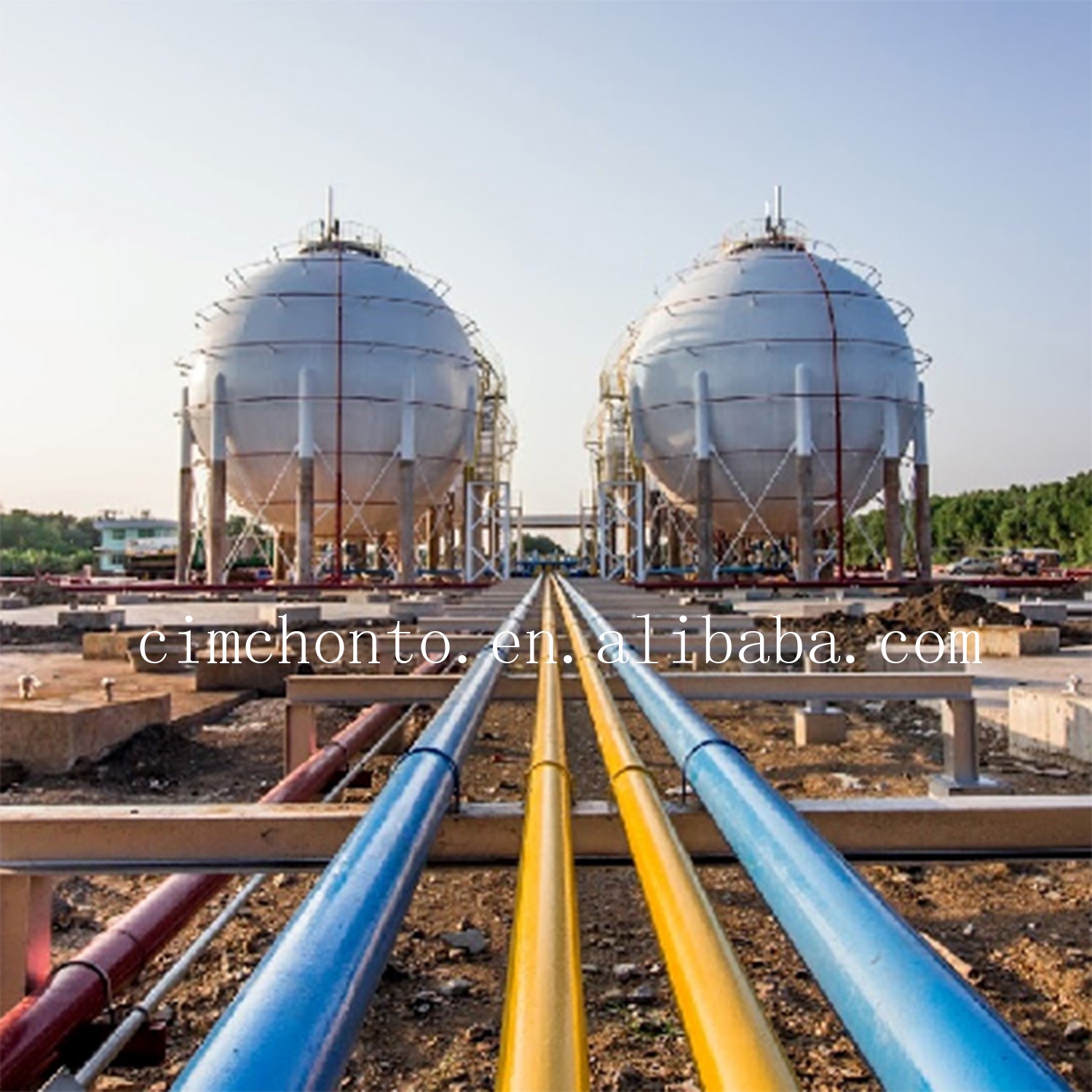

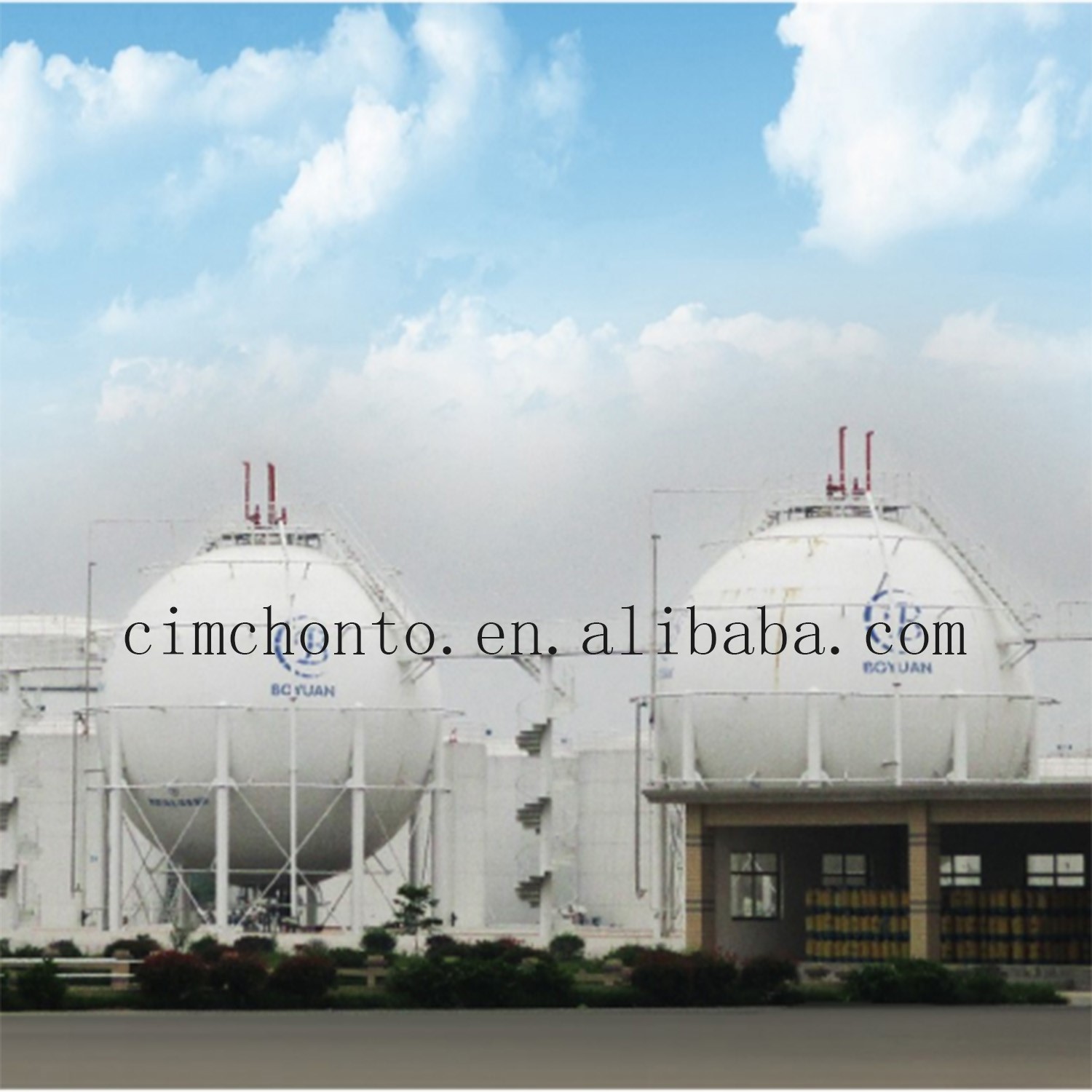

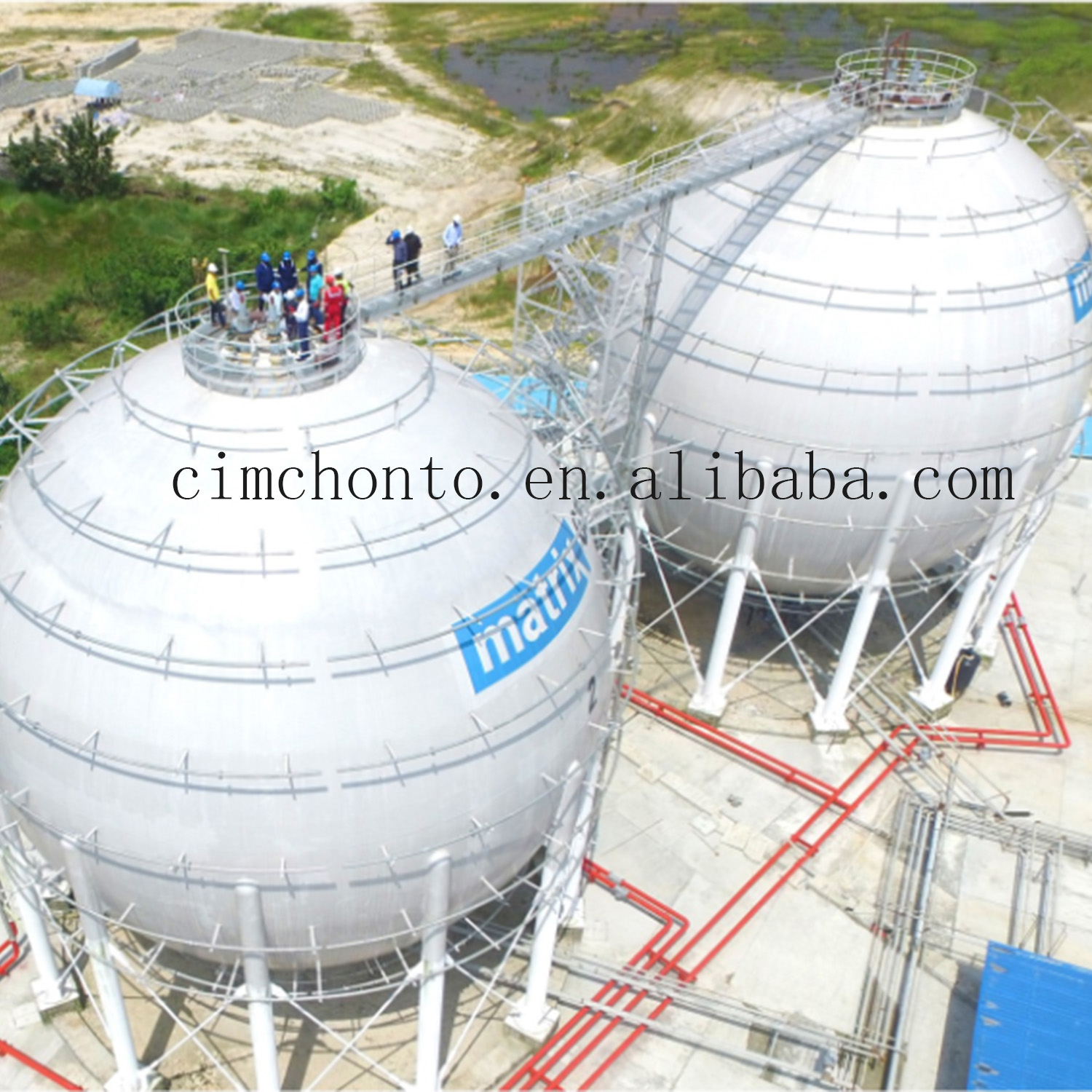

HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc., and owns relevant project references.
Design Code: ASME BPVC VIII-1/VIII-2, GB/T 12337, JB/T 4732 Vessel Capacity: 50m3~10000m3 Liquid Gas Spherical Tank, 200m3~20000m3 Gas Spherical Tank. Vessel Material: SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc. | ||||||
Design Standard | ASME VIII-2 | |||||
Total Capacity m3 | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 |
Medium | LPG | LPG | LPG | LPG | LPG | LPG |
*Payload KG | 750 | 1000 | 1500 | 2500 | 3000 | 4000 |
Shell Material | SA516M | SA537 CL.1 | SA537 CL.1 | SA537 CL.2 | SA537 CL.2 | SA537 CL.2 |
Filling Ratio | 0.85 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
Tank Net Weight KG | 258610 | 288617 | 431223 | 636868 | 732400 | 893620 |
Design Pressure MPa | 1.77 | 1.77 | 1.77 | 1.8 | 1.77 | 1.42 |
Working Pressure MPa | 1.57 | 1.4 | 1.57 | 1.7 | 1.57 | 1.2 |
MAWP MPa | 1.77 | 1.77 | 1.77 | 1.8 | 1.77 | 1.42 |
Design Temperature ℃ | -20/50 | -20/50 | -20/50 | -40/50 | 50 | -30/50 |
Working Temperature ℃ | -18/40 | 35 | -15~40 | -35~40 | 40 | -15/40 |
Corrosion Allowance MM | 1.0 | 1.5 | 1.5 | 1.5 | 1.0 | 2.0 |
NDT | YES | YES | YES | YES | YES | YES |
Hydraulic Test Pressure MPa | 2.53 | 2.54 | 2.54 | 2.58 | 2.54 | 2.04 |
Air Tightness Test Pressure MPa | 1.77 | 1.77 | 1.77 | 1.8 | 1.77 | 1.42 |
PWHT | YES | YES | YES | YES | YES | YES |
Wind Pressure Pa | 1035 | 1500 | 1500 | 2000 | 1500 | 3200 |
Snow Pressure Pa | -- | -- | -- | 300 | -- | -- |
Seismic Intensity | 7 Degree | 7 Degree | 7 Degree | 8 Degree | 8 Degree | 8 Degree |
Field Soil Category | II | II | II | II | II | II |
*Please note that different medium component will cause different density and different payload. **Please contact for more different kinds of capacity and standard tanks. | ||||||
Design Standard | ASME VIII-1 | ASME VIII-2 | ||
Total Capacity m3 | 600 | 974 | 2000 | 2000 |
Medium | C4 | Isobutane | Ethylene | Ethane |
*Payload KG | 278400 | 1809 | 1012600 | 747000 |
Filling Ratio | 0.8 | 0.9 | 0.83 | 0.83 |
Material | SA537 CL.2 | SA516M GR485 | SA203 GR.F | SA203 GR.F |
Net Weight KG | 69628 | 109500 | 374367 | 399963 |
Design Pressure MPa | 0.7/-0.03 | 0.79 | 1.98 | 2.15 |
Working Pressure MPa | 0.47 | 0.6 | 1.65 | 1.775 |
Design Temperature ℃ | -39/65 | -20/50 | 120 | 120 |
Working Temperature ℃ | 42.5 | 40 | -50~-10 | -50~-10 |
Corrosion Allowance MM | 2.5 | 1.5 | 4.0 | 4.0 |
Wind Pressure Pa | 600 | 800 | 300 | 300 |
Snow Pressure Pa | 400 | 0 | 1800 | 1800 |
Seismic Intensity | 7 Degree | 8 Degree | 6 Degree | 6 Degree |
Field Soil Category | II | II | II | II |
*Please note that different medium component will cause different density and different payload. **Please contact for more different kinds of capacity and medium tanks. | ||||
