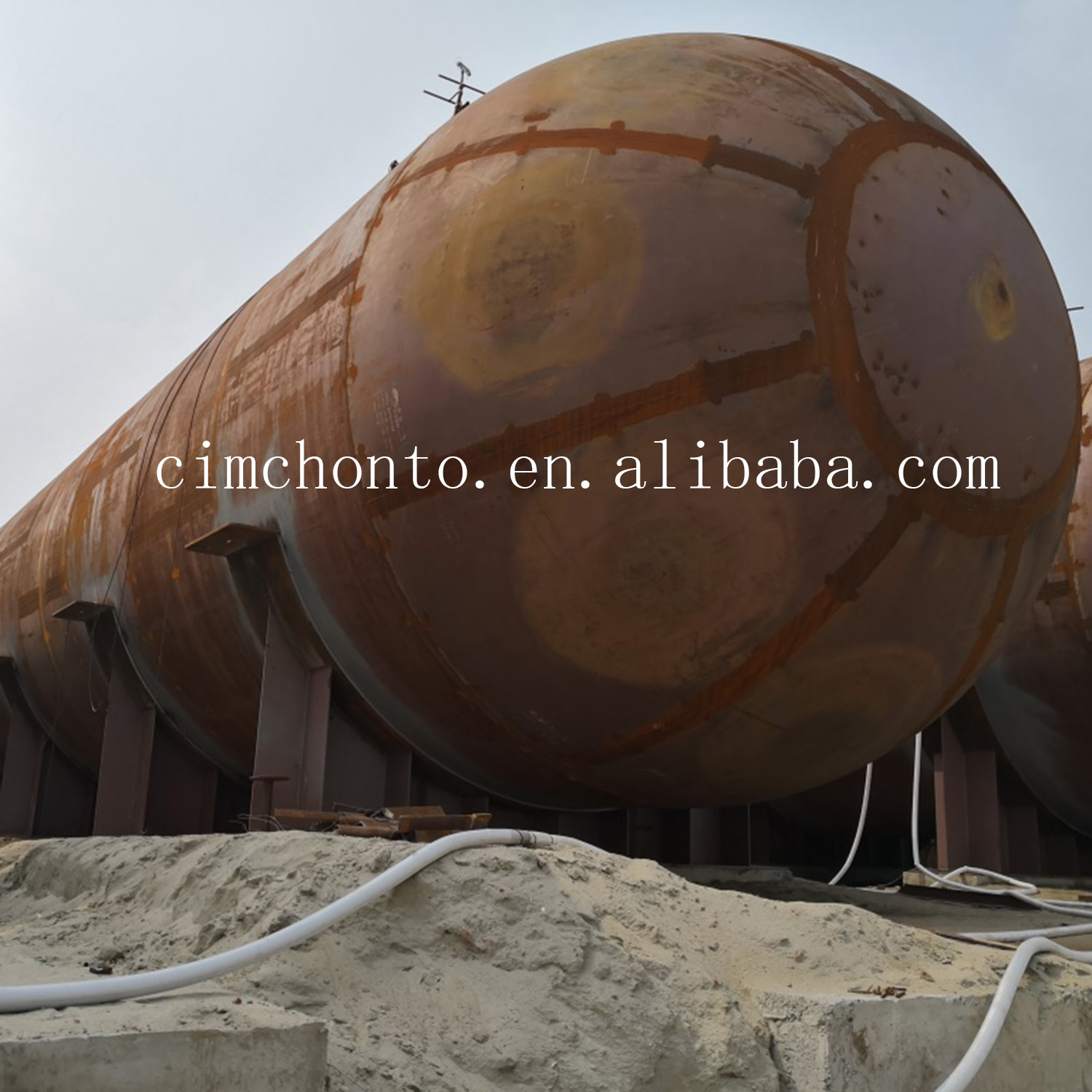

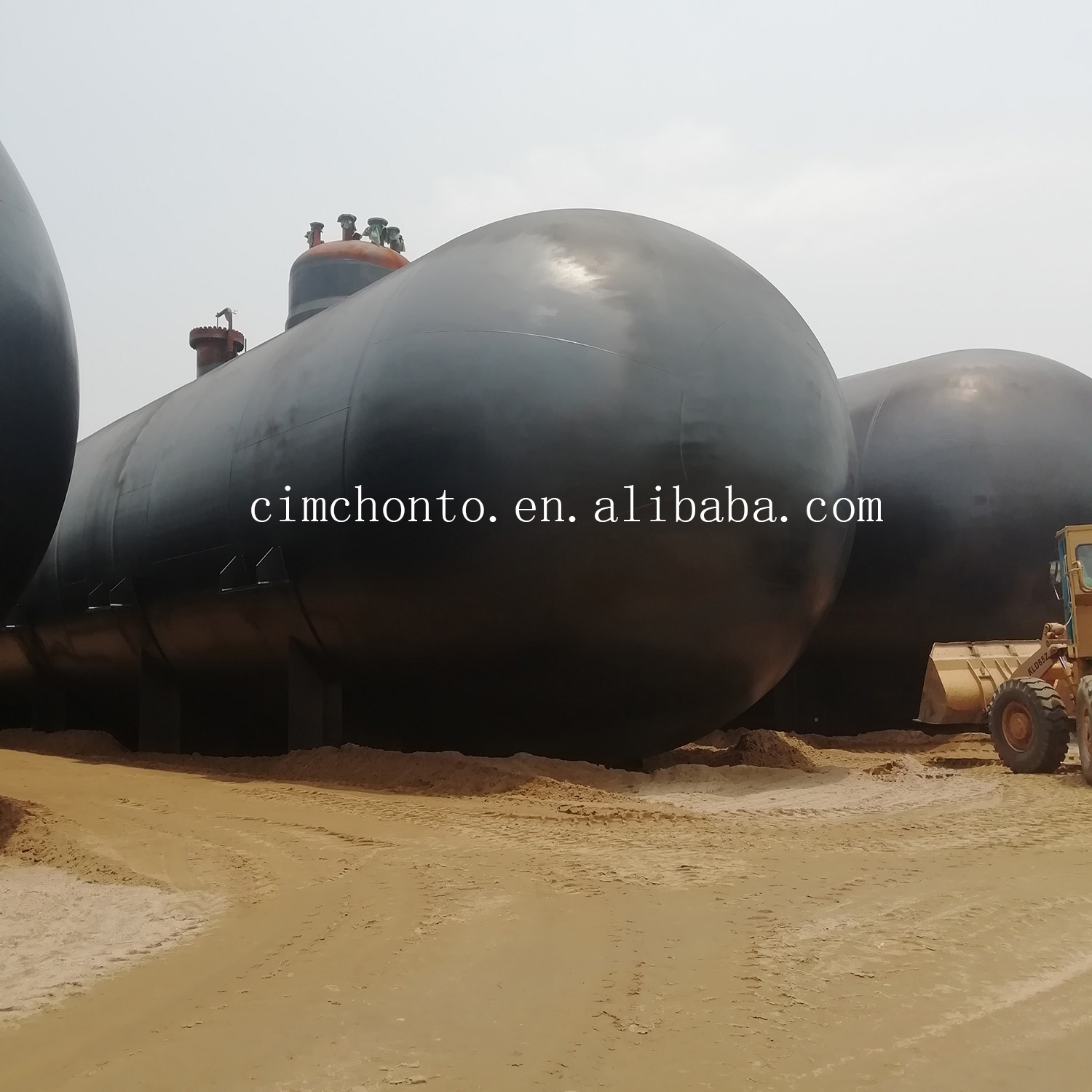

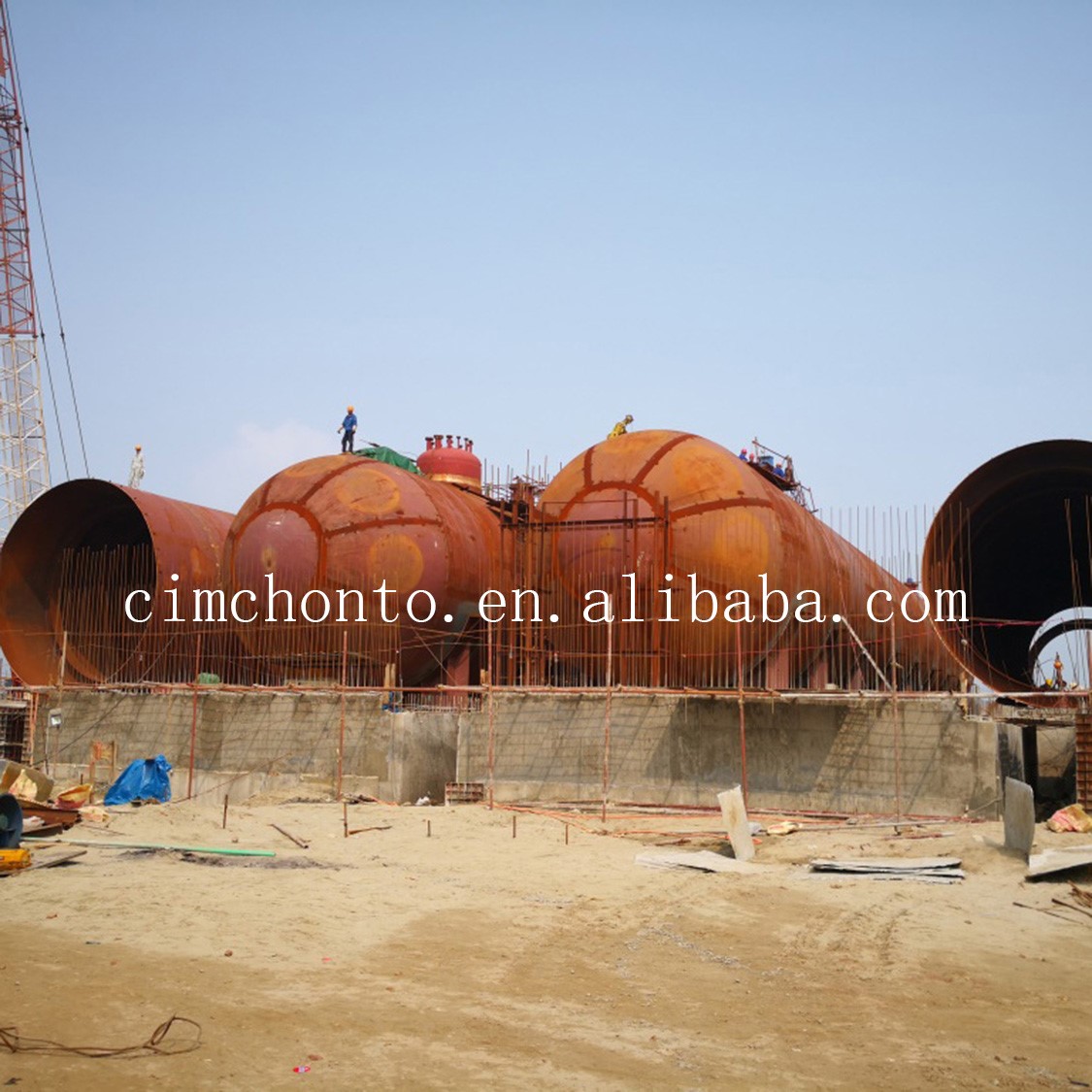

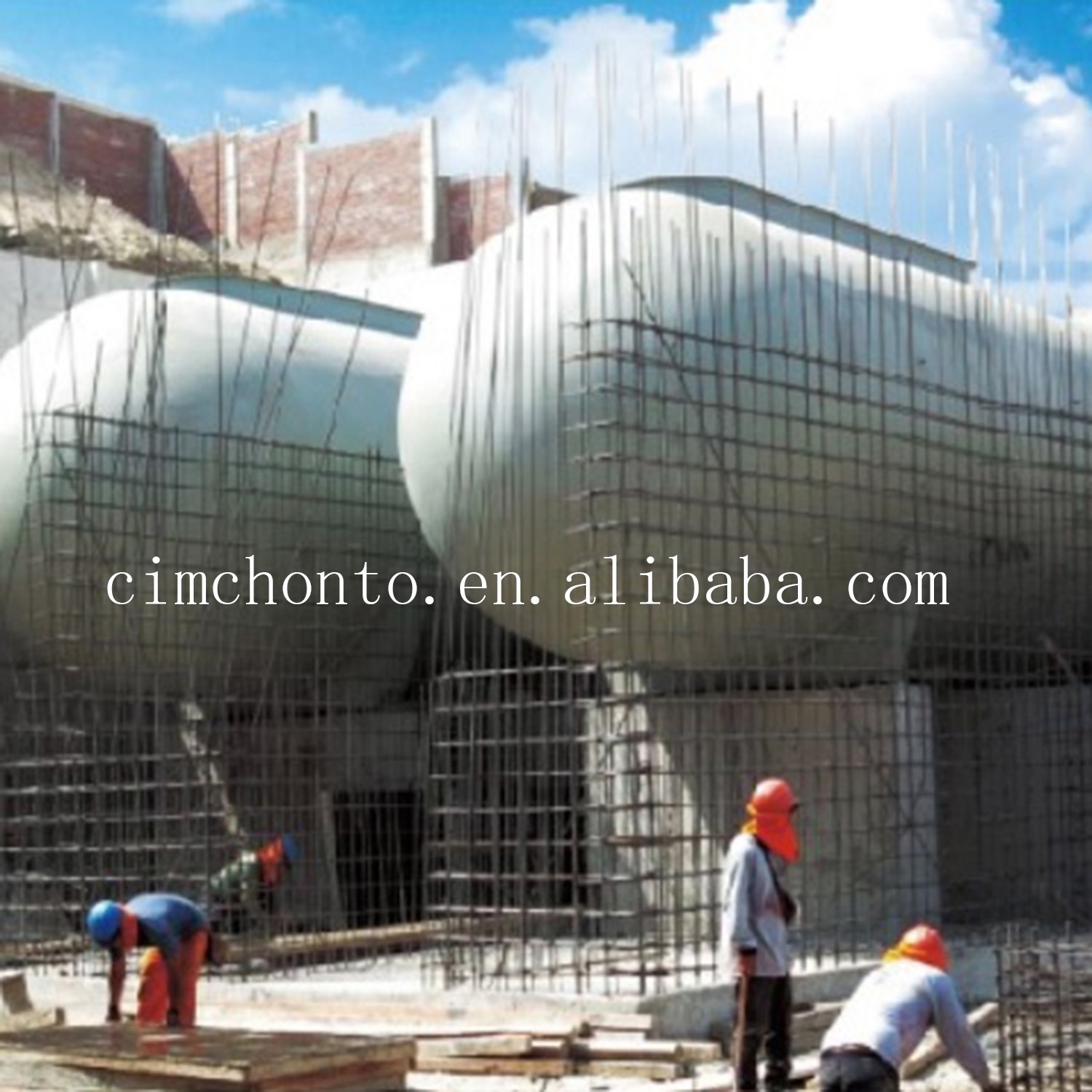

Hongtu has the design and fabrication capability of large size mounded tank without saddles and medium,small size mounded tanks with saddles.
ASME LPG MOUNDED TANK | |||||
Volume | 1000m3 | 2070m3 | 3500m3 | ||
Shell and Head Material | SA-537 CL.1(Normalized) | SA-537 CL.1(Normalized) | SA-537 CL1+S5 | ||
Empty Tank Weight | 172610KG | 330000KG | 629300KG | ||
Filling Rate | 0.85 | 0.85 | 0.85 | ||
I.D* H*L (mm) | φ6500*7418*32368mm | φ6900*X*57896mm | φ8000 | ||
Thickness（mm） | Shell 34mm/Head 20mm | Shell 28mm/Head 20mm | Shell 36mm/Head 24mm | ||
Medium | LPG | LPG | LPG | ||
Specific Gravity | 0.54@15℃ | 0.495@15℃ | / | ||
Design Standard | ASME Ⅷ DIV.2 2017 | ASME Ⅷ DIV.2 2015 | ASME Ⅷ DIV.2 2017 | ||
Design Pressure | 1.8Mpa | 1.43/-0.05Mpa | 1.42Mpa | ||
Working Pressure | / | 1.18Mpa | / | ||
Hydrotest Pressure(At Top) | 2.5Mpa | 2.05Mpa | 2.03Mpa | ||
MDMT AT MAWP | -15℃ at 1.8Mpa | -6℃ at 1.43Mpa | / | ||
Design Temp | 50℃ | 55℃ | 55℃ | ||
Working Temp | / | / | / | ||
Corrosion Allowance | Inner 3mm/Outside 2mm | Inner 1mm/Outside 0mm | 3mm | ||
Wind Load | Not Considered | Not Considered | Not Considered | ||
Seismic Load | Not Considered | Not Considered | Not Considered | ||
PWHT/HT | YES | NO | YES | ||
