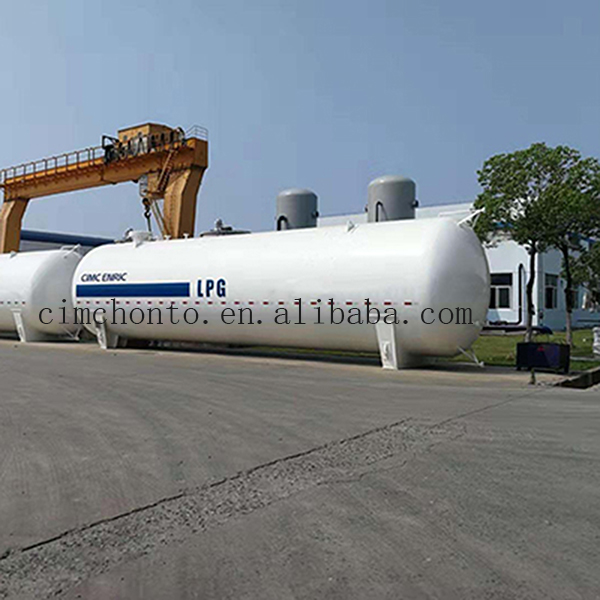

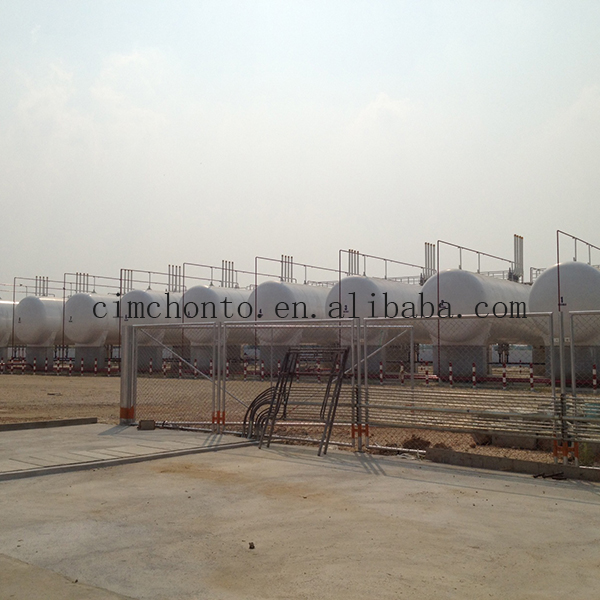

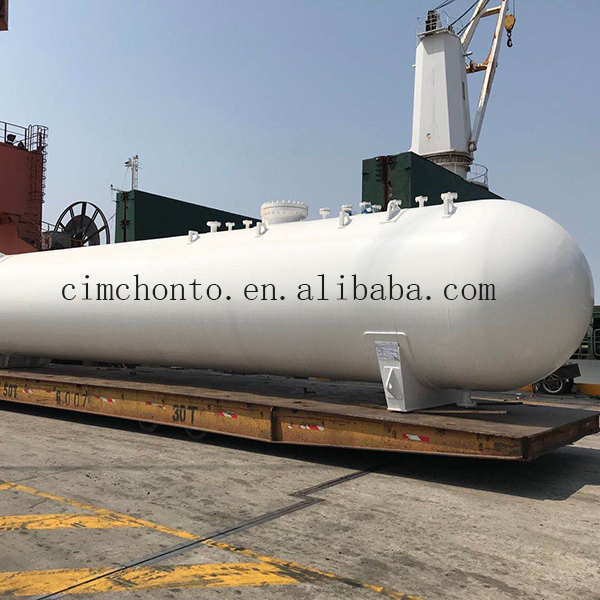

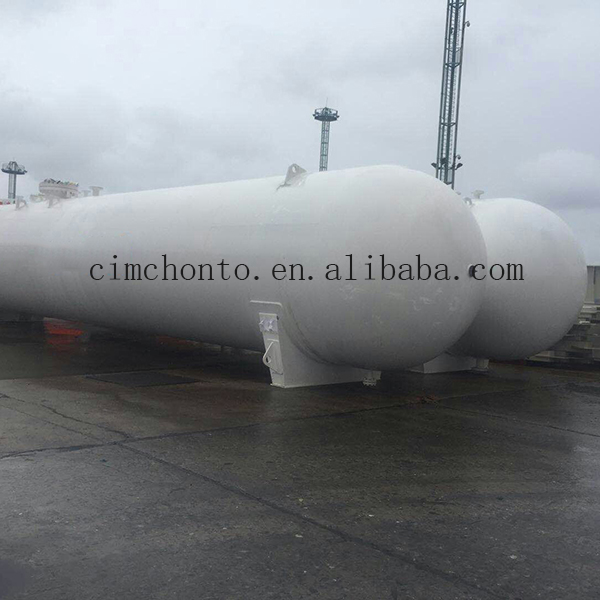

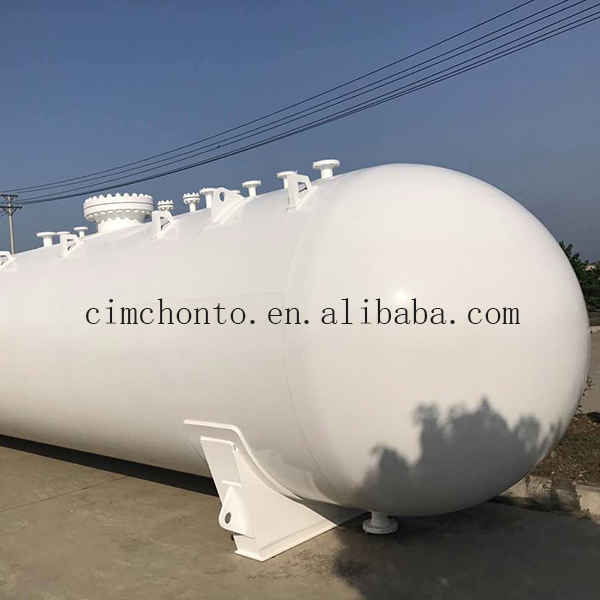

HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground tanks and mounded tanks etc. All kinds of tanks could be customized according to the customers' requirements.
Design Standard:
ASME BPVC Ⅷ-1 2017 ; NB/T47042-2014 GB/T150-2011 TSG 21-2016
I. Chinese GB Standard | |||||||
Water Capacity | Inner Diameter | Overall Length | Height | Weight | Payload （90% Filling Ratio） | Thickness | |
Shell | Heads | ||||||
10m3 | 1600mm | 5300mm | 2370mm | 3400kg | 4035kg | 8.53mm | 8.51mm |
12m3 | 1600mm | 6300mm | 2370mm | 3800kg | 4850kg | ||
20m3 | 2200mm | 5680mm | 2970mm | 5150kg | 8070kg | 11.35mm | 11.33mm |
25m3 | 2200mm | 7000mm | 2970mm | 6000kg | 10090kg | ||
32m3 | 2200mm | 8850mm | 2970mm | 7200kg | 12920kg | ||
40m3 | 2470mm | 8843mm | 3240mm | 8780kg | 16410kg | 12.62mm | 12.59mm |
50m3 | 2470mm | 10903mm | 3240mm | 10420kg | 20180kg | ||
63m3 | 2470mm | 13623mm | 3240mm | 12600kg | 25420kg | ||
80m3 | 3100mm | 11170mm | 3800mm | 16700kg | 32280kg | 15.58mm | 15.87mm |
100m3 | 3100mm | 13850mm | 3800mm | 20000kg | 40350kg | ||
150m3 | 3400mm | 17140mm | 4104mm | 29800kg | 60500kg | 17.35mm | 17.31mm |
200m3 | 3800mm | 18324mm | 4560mm | 40100kg | 80700kg | 19.27mm | 19.22mm |
Main Material | Q345R | Design Pressure | 1.61MPa |
Hydraulic Test Pressure | 2.22MPa | Working Pressure | ≤1.61MPa |
Corrosion Allowance | 1.0mm | Design Temperature | -20/50℃ |
Life Expectancy | 20 years | Working Temperature | -20/50℃ |
Notes: Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design. | |||
II. ASME Standard | |||||||
Water Capacity | Inner Diameter | Overall Length | Height | Weight | Payload （85% Filling Ratio） | Thickness | |
Shell | Heads | ||||||
10m3 | 1600mm | 5308mm | 2440mm | 3850kg | 4630kg | 11.09mm | 11.02mm |
12m3 | 1600mm | 6308mm | 2440mm | 4340kg | 5560kg | ||
20m3 | 2200mm | 5690mm | 3050mm | 6920kg | 9260kg | 14.86mm | 14.78mm |
25m3 | 2200mm | 7010mm | 3050mm | 8100kg | 11580kg | ||
32m3 | 2200mm | 8860mm | 3050mm | 9750kg | 14820kg | ||
40m3 | 2470mm | 8851mm | 3320mm | 11930kg | 18530kg | 16.56mm | 16.47mm |
50m3 | 2470mm | 10911mm | 3320mm | 15420kg | 25470kg | ||
60m3 | 2470mm | 13001mm | 3320mm | 16600kg | 27790kg | ||
80m3 | 3100mm | 11178mm | 3960mm | 22820kg | 37060kg | 20.53mm | 20.41mm |
100m3 | 3100mm | 13858mm | 3960mm | 27430kg | 46320kg | ||
Main Material | SA-516 Gr.70 | Design Pressure | 1.724MPa |
Hydraulic Test Pressure | 2.25MPa | Working Pressure | ≤1.724MPa |
Corrosion Allowance | 1.0mm | Design Temperature | 50℃ |
Specific Gravity | 0.545@15℃ | Working Temperature | -20/50℃ |
Notes: Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design. | |||
Chinese GB Standard Under Ground LPG Storage Tank | |||||||
Water Capacity | Inner Diameter | Overall Length | Height | Weight | Payload（90% Filling Ratio） | Thickness | |
Shell | Heads | ||||||
7m3 | 1200mm | 6560mm | 2430mm | 3100kg | 2820kg | 7.5mm | 6.64mm |
10m3 | 1600mm | 5300mm | 2870mm | 3800kg | 4035kg | 8.53mm | 8.51mm |
20m3 | 2000mm | 6800mm | 3290mm | 5900kg | 8070kg | 10.41mm | 10.39mm |
25m3 | 2200mm | 7000mm | 3484mm | 6300kg | 10090kg | 11.36mm | 11.33mm |
50m3 | 2470mm | 10903mm | 3756mm | 11220 | 20180kg | 12.62mm | 12.59mm |
Main Material | Q345R | Design Pressure | 1.61MPa |
Hydraulic Test Pressure | 2.22MPa | Working Pressure | ≤1.61MPa |
Corrosion Allowance | 1.0mm | Design Temperature | -20/50℃ |
Life Expectancy | 20 years | Working Temperature | -20/50℃ |
Notes: Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design. | |||
ASME Standard | |||||||||
Water Capacity | Inner Diameter | Overall Length | Height | Weight | Payload （90% Filling Ratio） | Material | Design Pressure | Thickness | |
Shell | Heads | ||||||||
22m3 | 2000mm | 7420mm | 2774mm | 6200kg | 8876kg | Q345R | 1.61MPa | 11.56mm | 10.47mm |
98.5m3 | 3500mm | 11588mm | 3548mm | 25100kg | 47073kg | SA-516 GR.70 | 1.724MPa | 23.05mm | 13.21mm |
124m3 | 3450mm | 14410mm | 5140mm | 26500kg | 60890kg | 1.38MPa | 18.98mm | 10.28mm | |
Notes: Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design. | |||||||||
