LPG Bobtail Tank Truck- Product Details

LPG Bobtail Tank Truck

ID:20101723790

Oil & Gas Oil and gas transportation

FOB Price:US$ 80000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

lpg trucks for salemobile lpg filling trucklpg tanker trucklpg tank trucklpg tankerlpg road tankerlpg tanker for salelpg transport tankerlpg bobtail trucks for salelpg gas tanker

Payment Method:

L/CT/T

Product Category

Oil & Gas > Oil and gas transportation

Trademark

HONTO

Product Package

Specification

Place of Origin

China

Port

Shanghai

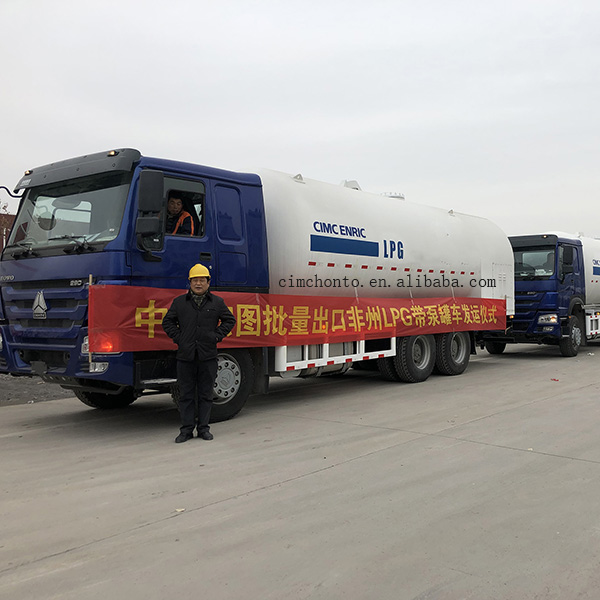

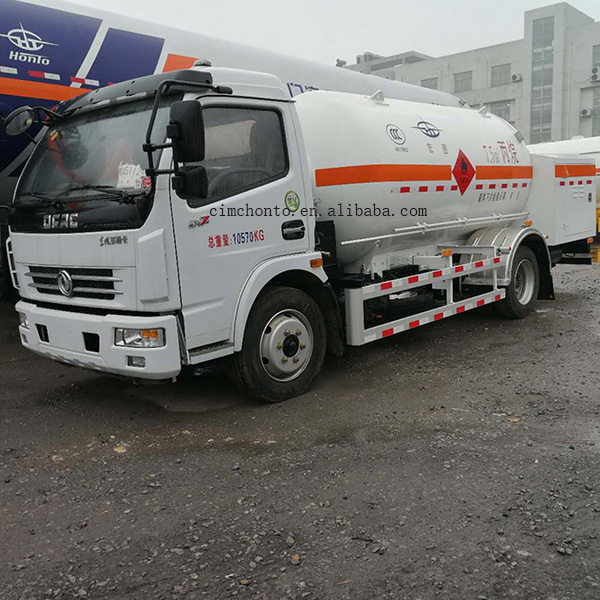

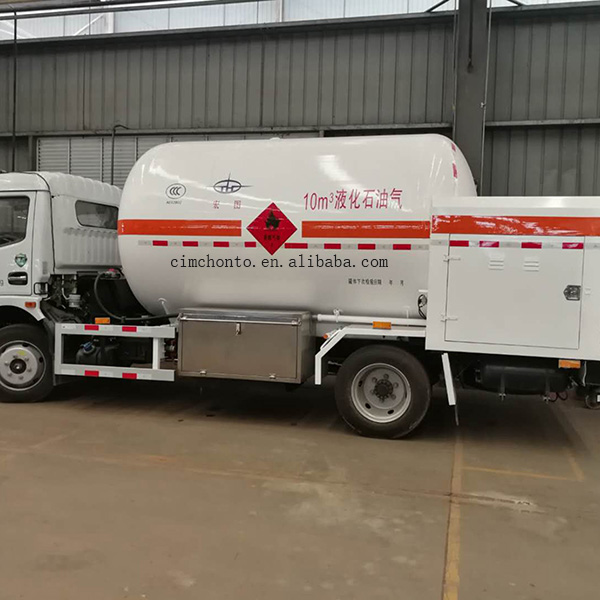

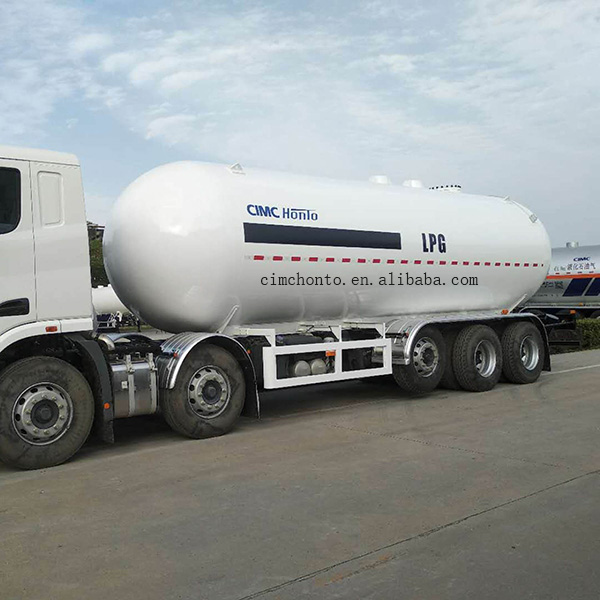

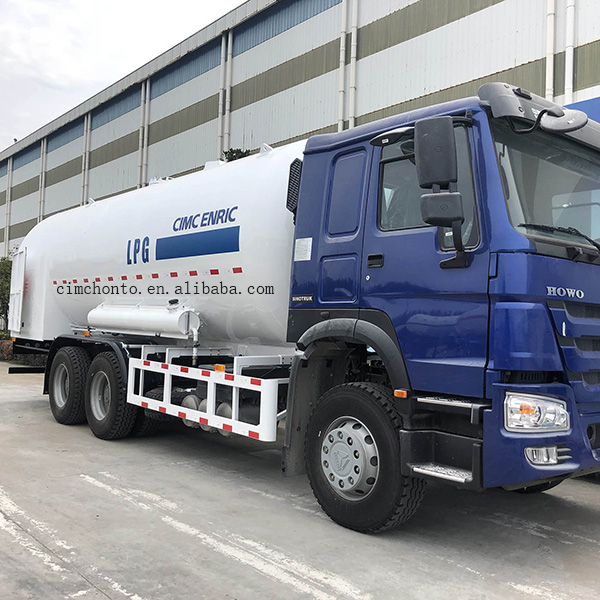

HONGTU is qualified to design and manufacture bobtail tankers with pumps and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the bobtail tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.

Technical Specification

Design Code: ASME BPVC VIII-1/VIII-2, EN 12493, GB/T19905, JB4732

Vessel Capacity: 5m3~40m3

Material: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.

The information of CIMC HONTO LPG bobtail tank truck listed in below tables are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.

I. ASME Code
Volume	5m3	10m3	17.04m3	21.6m3	22m3	23.3m3
*Max. Payload	2300kg (2.5 t)	4600kg (5 t)	7890kg (8.52 t)	10000kg (10.8 t)	10000kg (11 t)	11110kg (11.65 t)
Kerb Weight	-	-	-	15560kg	15170kg	14800kg
Gross Vehicle Weight	-	-	-	25560kg	25300kg	26040kg
Outline Dimension	L:7482mm W:2400mm H:2640mm	L:8387mm W:2400mm H:2690mm	-	L:9945mm W:2500mm H:3550mm	L:10130mm W:2500mm H:3550mm	L:10340mm W:2490mm H:3650mm
Design Pressure	1.724MPa	1.724MPa	1.724MPa	1.724MPa	1.724MPa	1.724MPa
Design Temperature	50℃	50℃	50℃	-20/50℃	50℃	-23.3/51.7℃
Corrosion Allowance	1 mm	1 mm	1 mm	1 mm	1 mm	0
Material of Shell	SA-516	SA-516	SA-612	SA-612	SA-612	SA-612
Material of Head	SA-516	SA-516	SA-612	SA-612	SA-612	SA-612
Thickness of Shell	10mm	12mm	11.66mm	12.5mm	12.19mm	12.5mm
Thickness of Head	10mm	12mm	11.87mm	8mm	7mm	8mm
Test Pressure (Hydraulic Horizontal)	2.25MPa	2.25MPa	2.25MPa	2.25MPa	2.25MPa	2.25MPa
Air Test Pressure	1.724MPa	1.724MPa	1.724MPa	1.724MPa	1.724MPa	1.724MPa
Please note that different medium component will cause different density and different payload. *Please contact for more different kinds of capacity and standard tanks.

II. Chinese GB Standard
Capacity	10m3	13.58m3	20m3	23.81m3	36m3
*Max. Payload	4200kg (5 t)	5700kg (6.79 t)	8400kg (10 t)	10000kg (11.905 t)	15120kg (18 t)
Kerb Weight	10800kg	10170kg	15300kg	15320kg	15750kg
Gross Vehicle Weight	15130kg	1600kg	23700kg	25450kg	31000kg
Outline Dimension	L:8830mm W:2490mm H:3050mm	L:8140mm W:2450mm H:3450mm	L:11800mm W:2495mm H:3937mm	L:10040mm W:2490mm H:3580mm	L:11980mm W:2500mm H:3770mm
Design Pressure	1.61/-0.1 MPa	1.61/-0.1 MPa	1.61/-0.1 MPa	1.61/-0.1 MPa	1.61 MPa
Design Temperature	50℃	50℃	-20/50℃	50℃	-20~50℃
Corrosion Allowance	1 mm	1 mm	1 mm	1 mm	1 mm
Material of Shell	Q345R	Q345R	Q345R	Q345R	Q420R (WH590D)
Material of Head	Q345R	Q345R	Q345R	Q345R	Q345R(N)
Thickness of Shell	9mm	10.5mm	9.5mm	12mm	9.8mm
Thickness of Head	10mm	11mm	10mm	13mm	8mm
Hydraulic Test Pressure	2.10MPa	2.10MPa	2.10MPa	2.10MPa	-
Pressure of Leak Test	1.61MPa	1.61MPa	1.61MPa	1.61MPa	-
Please note that different medium component will cause different density and different payload. *Please contact for more different kinds of capacity and standard tanks.
