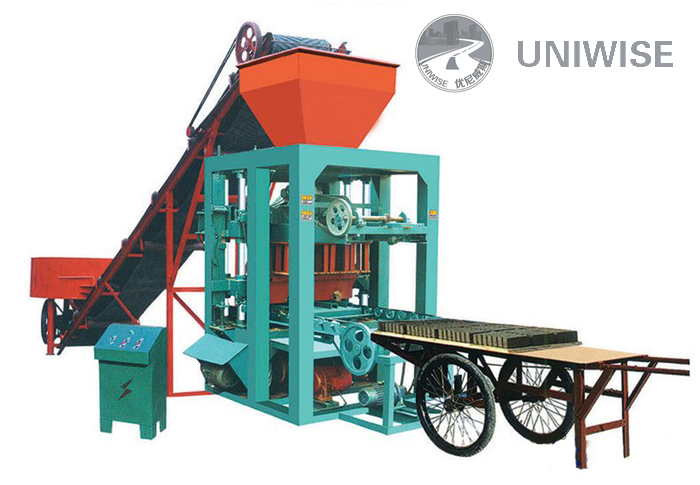

TJ4-26B block forming machine is my company from Taiwan earthquake European advanced production technology, to realize the super strong vibration effect with less power, so that the material can effectively fill dense flow, and the upper mould vibration pressure, so that block production of uniform density, high strength, its performance can be comparable with the large equipment. Patent rack special push die design, greatly save manpower and improve production efficiency.

Main technical parameters and theoretical output:

Forming blocks      390/190/190 4 block / die
Brick specification     390/120/190 6 block / die
                               240/115/50 24 block / die
Molding cycle      26-30 seconds / time
productivity         3500-3800 blocks / shift
Vibration power      5.9kW
Stripping power      3kW
Transmission power      0.75kW
Host power      10.4kW
