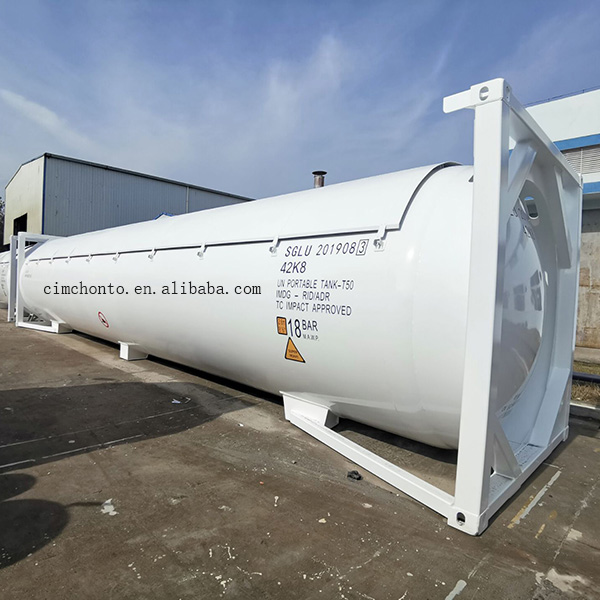

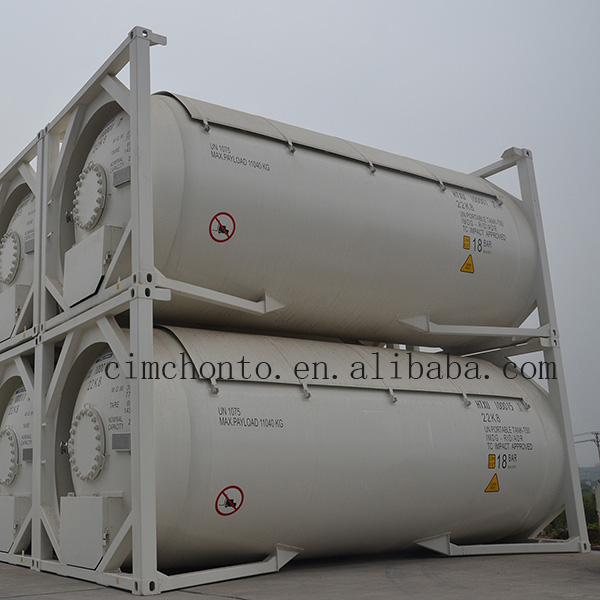

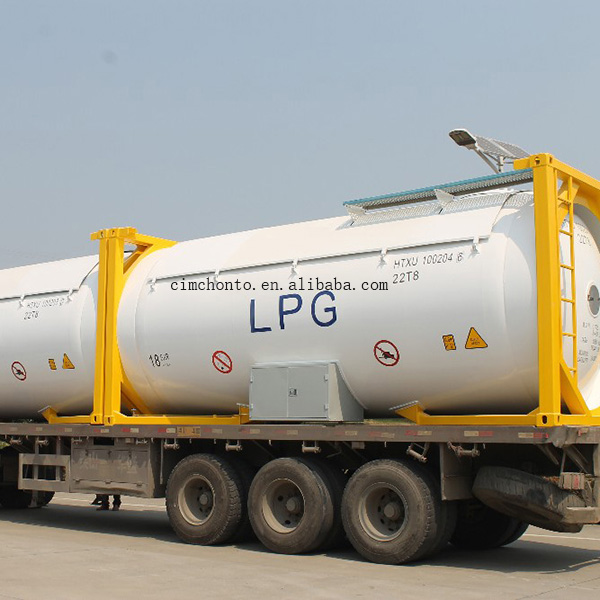

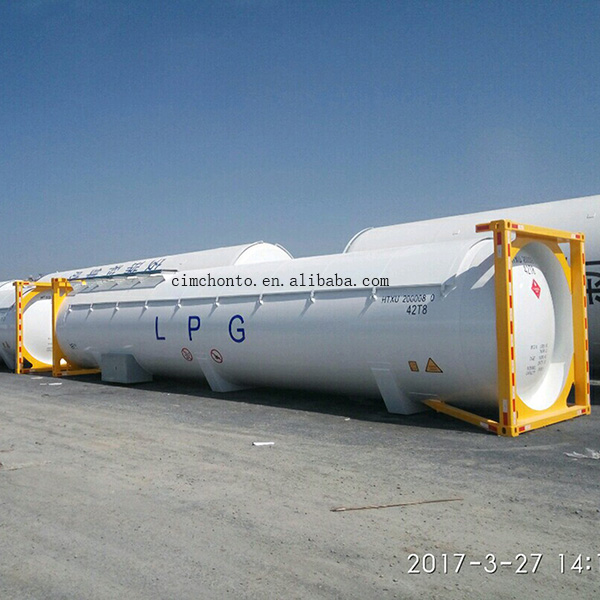

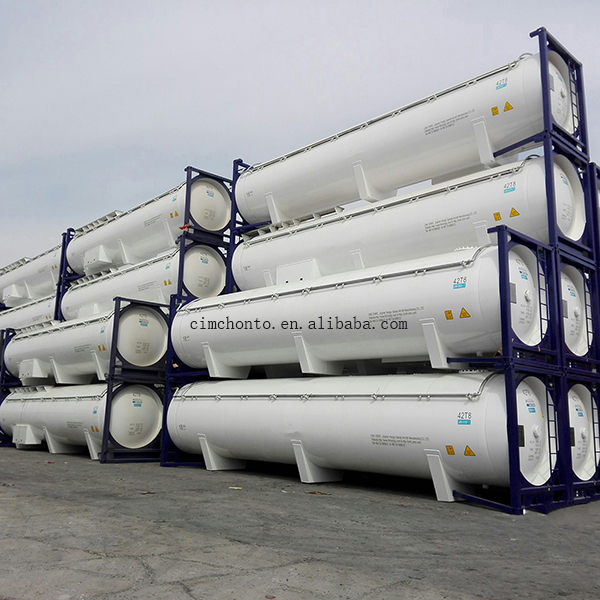

HONGTU has mature capability to design and manufacture tank containers. The tank containers are equipped with FORTVALE loading and
unloading accessories and safety valves; side-mounted floating level meter on the rear head and aluminum sunshield on the top.
With all necessary certificates, HONGTU tank containers meet international road, marine and railway transportation requirements.
Design code: ASME BPVC VIII-1/VIII-2, RID/ADR, IMDG T50, TC, UIC, CSC, TIR, ISO1496/3Vessel capacity: 20ft & 40ft
Materials: SA-612M, SA-516, 16MnDR, WH590E, Q370R, Q420R
Design certificates: BV, TUV, CCS
ASME Standard LPG ISO Tank Container | ||
20ft | 40ft | |
Material | SA-612M | SA-612M |
Design Capacity | 24.7m3 | 51.7m3 |
Medium | LPG | LPG |
Tare Mass | 6500KG | 12300KG |
Max. Gross Mass | 350000KG | 36000KG |
Tank Outline Dimension( ID * H * L) | 6058*2438*2591mm | 12192*2438*2591mm |
Design pressure | 1.8 MPa | 1.8 MPa |
Allowable Working pressure | 1.8MPa | 1.8 MPa |
Working Temperature | -40~50 ℃ | -40~50 ℃ |
Design Temperature | 55 ℃ | 55 ℃ |
Design Service Life | 15 years | 15 years |
Corrosion Allowance | 0mm | 0mm |
Chinese Standard LPG ISO Tank Container | ||
20ft | 40ft | |
Material | 16MnDR | WH590E |
Design Capacity | 25M3 | 51.7m3 |
Medium | LPG | LPG |
Tare Mass | 6500KG | 12300KG |
Max. Gross Mass | 19450KG | 34014KG |
Tank Outline Dimension( ID * H * L) | 6058*2438*2591mm | 12192*2438*2591mm |
Design pressure | 1.8 MPa | 1.8 MPa |
Allowable Working pressure | 1.8 MPa | 1.8 MPa |
Working Temperature | -40~50 ℃ | -40~50 ℃ |
Design Temperature | 55 ℃ | 55 ℃ |
Design Service Life | 15 years | 15 years |
Corrosion Allowance | 1.0mm | 15 years |
