LPG Skid Mounted Station

ID:20101723803

Category: Oil & Gas Oil and Gas Equipment

FOB Price:US$ 25000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

lpg filling skid stationlpg skidlpg gas skid filling stationlpg skid stationlpg skid plantlpg tank skidlpg skid tankskid lpg filling plantlpg skid filling station priceskid lpg filling station

Payment Method:

L/CT/T

Product Category

Oil & Gas > Oil and Gas Equipment

Trademark

HONTO

Product Package

Specification

Place of Origin

China

Port

Shanghai

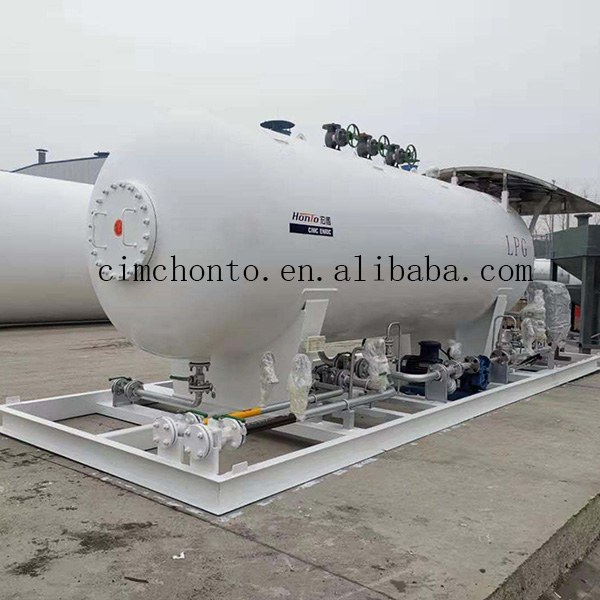

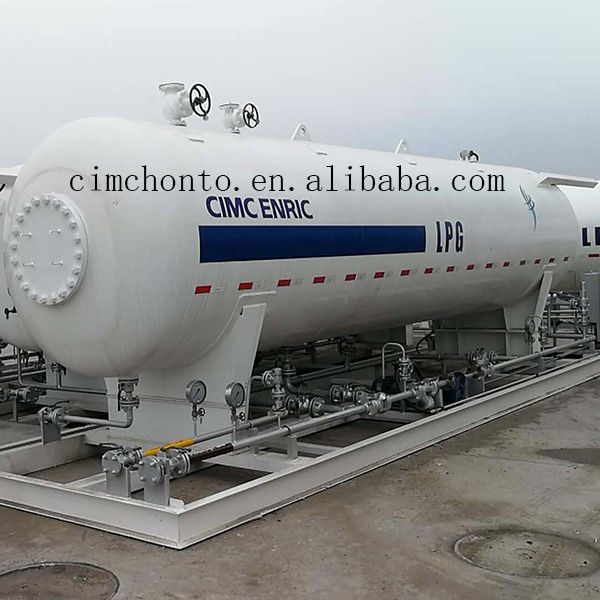

I. Standard Configuration

1. LPG Storage Tank

2. Underframe

3. Pipeline System

4. LPG Filling Pump

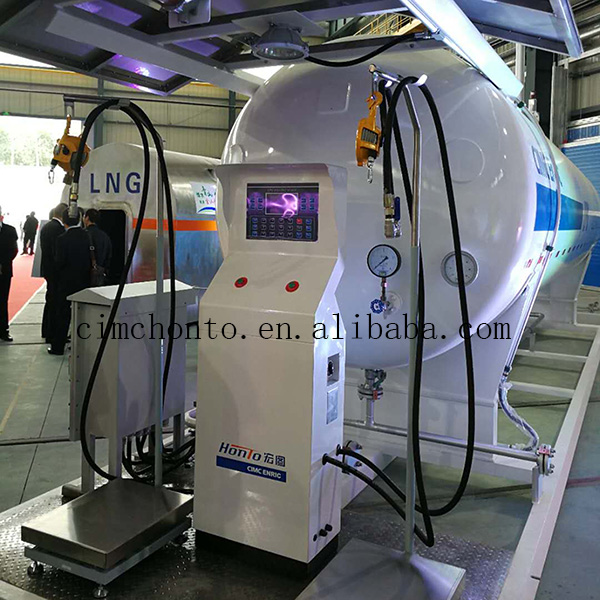

5. LPG Filling Scale or LPG Dispenser

6. Electrical Control System

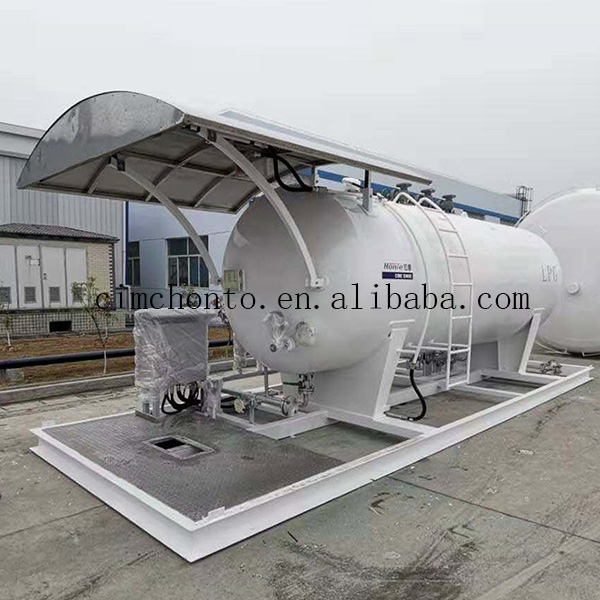

7. Sunshed

Compressor, signal transmitter,etc. can also be provided to realize the functions of loading LPG from the tankers without pump into the LPG filling skid and remotely transmitting signals, etc.

II. Performance Advantages

This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control carbinet. It has the unloading function for LPG tanker with pump, unloading function for LPG storage tank skid with pump, filling function for LPG cylinder in car, bottling function for civil LPG cylinder, loading function for LPG tanker,function of safe reflux, etc.

III. Advantages

1. High integrity, small occupied land area Standard design, seriation is formed

2. Complete functions, meet various customer requirement

3. PLC control, safe and reliable

4. Short installation time, commissioning inside plant

5. Skid design, convenient for transportation

Technical Specification for LPG Filling Skid
TAKN VOLUME(m3）	10m3	12m3	20m3	25m3	32m3	40m3	50m3	63m3
Filling Weight (kg)	4035	4850	8070	10090	12920	16410	20180	25420
Design Pressure （Mpa)	1.61
MAWP(Mpa)	1.77
Design Temperature (℃）	-20℃-50 ℃
Shell /Head Thickness (mm)	10mm/10mm	10mm/10mm	12mm/13mm	12mm/13mm	12mm/13mm	13mm/14mm	13mm/14mm	13mm/ 14mm
Design Standard	Chinese Standard
Tank Material	Q345R
Processing pipe material	20#
Application	1. Scale for bottling cylinder 2. LPG dispenser for fueling car 3. LPG pump or compressor for truck
Accessories	Including pressure gauge, thermometer, float level gauge, ball valves, safety valves, safety return valves, check valves, filter, globe valves, processing pipes, explosion-proof light, alarm and gas leakage detection system, explosion-proof cabinet for lighting and power distribution etc.
Shipment method	Volume above 20m3 will be shipped by bulk vessel , below 20m3 will be shipped by container vessel
