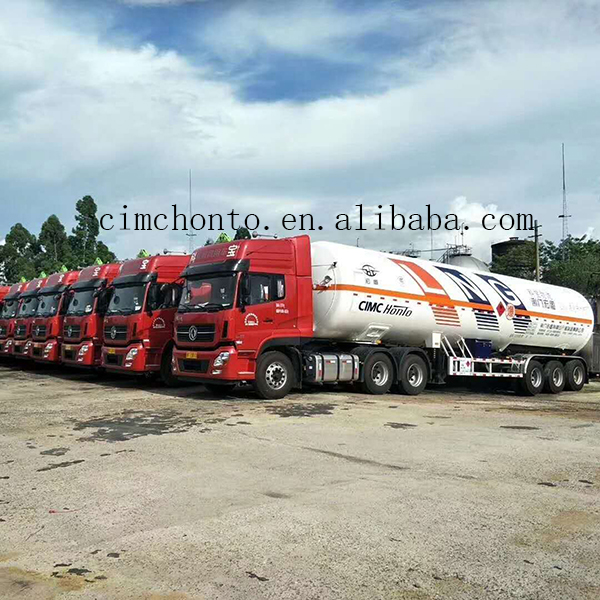

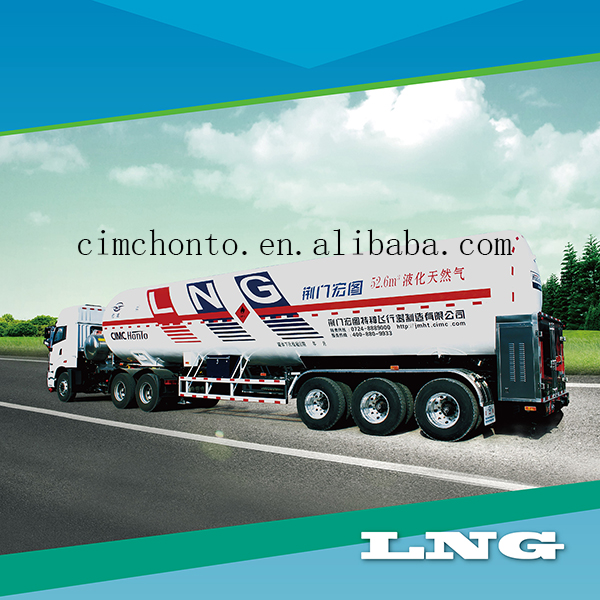

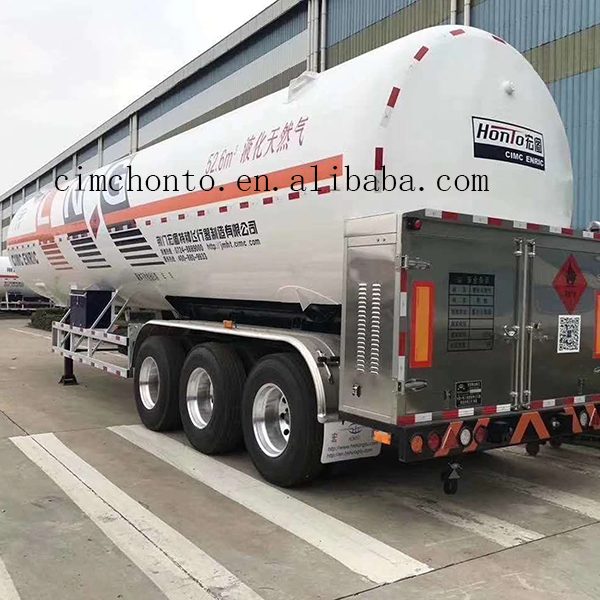

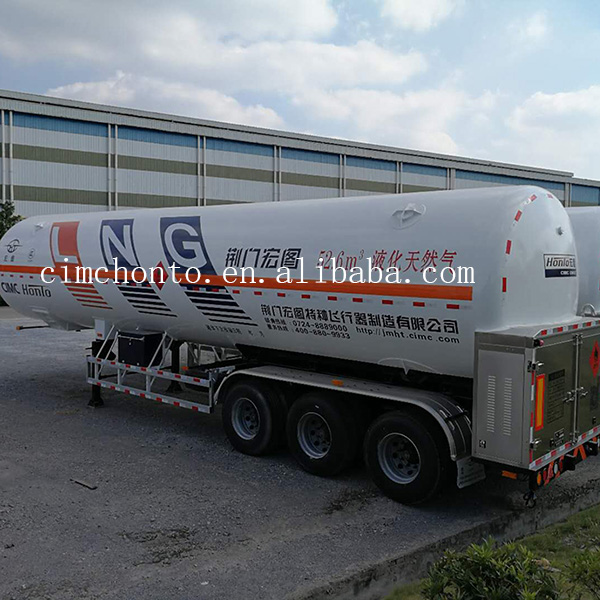

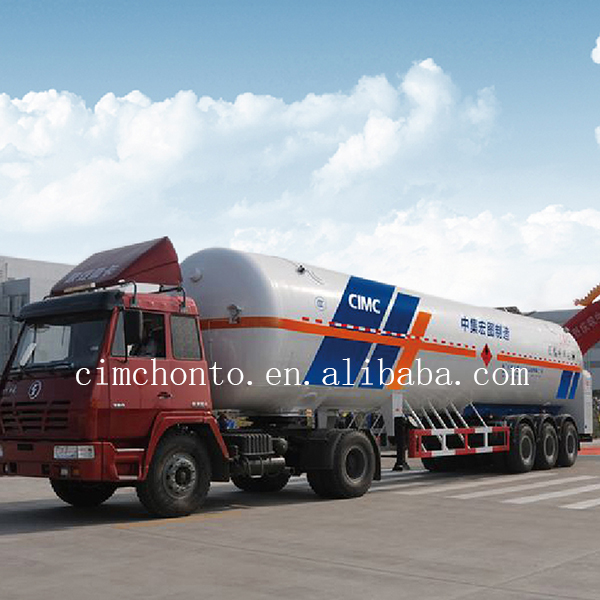

HONGTU has the ability to design and manufacture all kinds of refrigerated liquefied gas tankers with high vacuum multi-layer insulation. The susbstance can be LNG, liquid oxygen, liquid nitrogen, liquid argon, liquid ethylene, liquid ethane, etc.
Chinese GB Standard | ASME CODE | |||
Capacity | 52.6 | 51 | ||
Curb Weight(kg) | 16200 | 15500 | ||
Payload(kg) | 23800 | 22000 | ||
Total Weight(kg) | 40000 | 37500 | ||
Overall Dimension(mm) | 13000×2500×3900 | |||
Inner Tank | Outer Tank | Inner Tank | Outer Tank | |
Design Pressure(MPa) | 0.65 | -0.1 | 0.65 | -0.1 |
Design Temperature(℃) | -196 | 50 | -196 | 50 |
Working Temperature(℃) | -162 | Normal Temperature | -162 | -40~50 |
Working Pressure(MPa) | 0.65 | -0.1 | 0.65 | -0.1 |
Medium | LNG | / | LNG | / |
Corrosion Allowance(mm) | 0 | 0 | ||
Joint Efficiency | 1.0 | 0.85 | ||
Main Material | X5CrNiN19-9/S30408/304 | Q345R | SA-240/S304 | SA516/Q345R |
Insulation Type | High Vacuum Multi-layer Insulation | High Vacuum Multi-layer Insulation | ||
