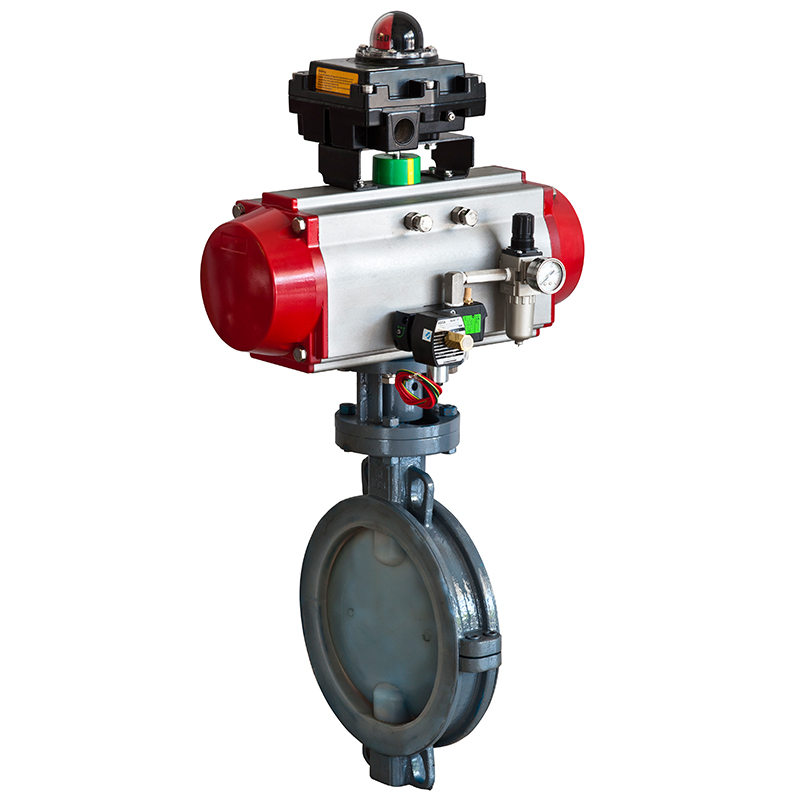

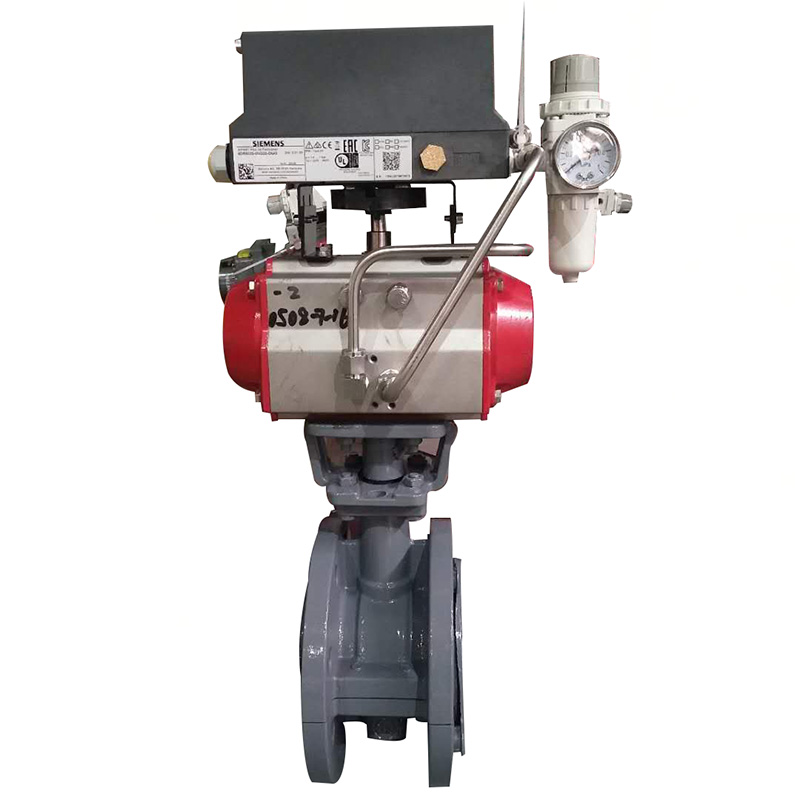

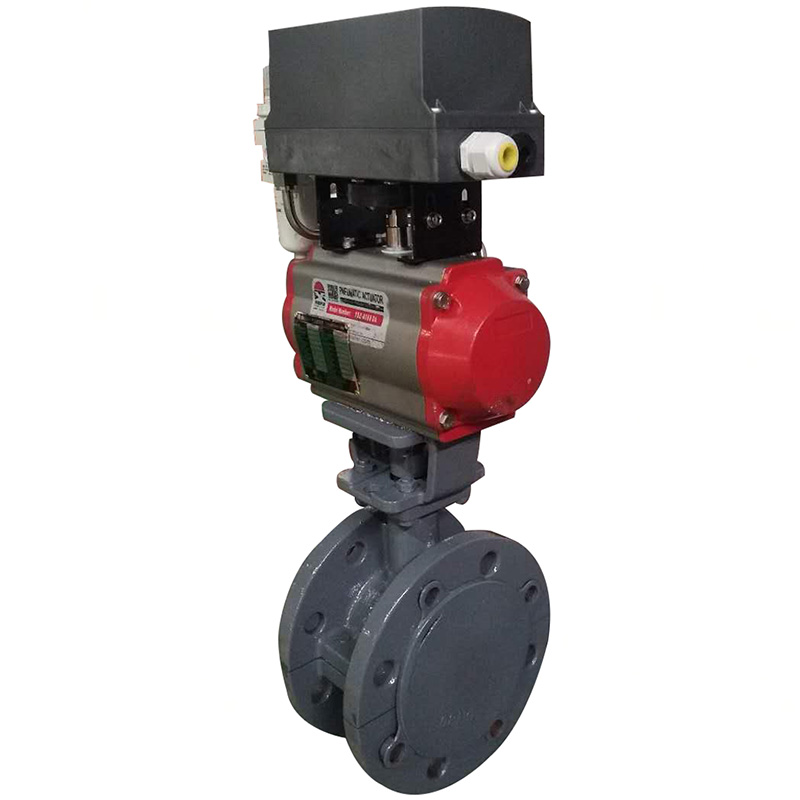

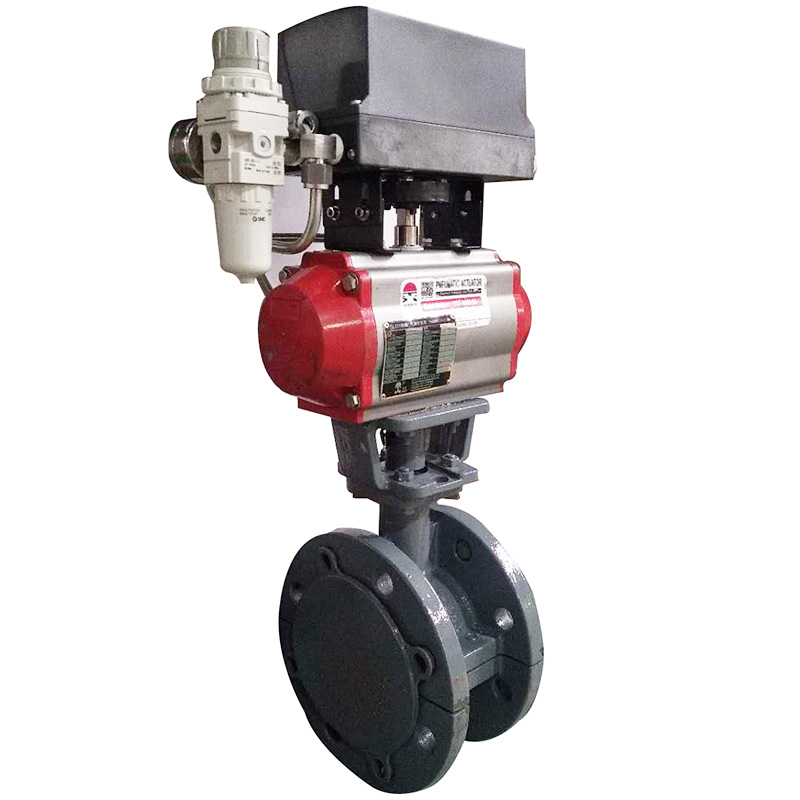

Rubber/Fluorine Lined butterfly valve

General

ZSHWJ/ZDRWJ/ZSHWF/ZDRWF series lined butterfly valve are designed for desulfurization denitration device and slurry piping system, especially for corrosive application, such as sulfuric acid, phosphoric acid, hydrofluoric acid, chlorine, alkali, aqua regia and other strong corrosive media, requiring reliable shut-off performance, good corrosion resistance and long service life.

Characteristics

Rubber lined butterfly valve lined with EPDM  has very strong corrosion resistance and erosion resistance capability with long service life. The disc material is duplex stainless steel, such as 2205, 1.4529 and so on, which have extremely strong resistance to chlorine ion corrosion (resistance to chloride ion 40000ppm), high surface hardness and strong comprehensive mechanical properties, especially for slurry application. Austenitic stainless steel can also be used according to the working condition. The disc and resilient EPDM sealing combination realizes bubble tight sealing. The connection is wafer.

  Fluorine lined butterfly valve lined with PTFE, the elastomer back-up pads behind the liner ensure a tight fit around the disc, for a bubble tight shut-off. With advantages of easy operation, good sealing performance, long service life and quick shut off or control feature. Split body design is not only easy to replace shaft but also easy to adjust sealing performance. The connection is wafer.

Specification

Nominal Diameter:DN80~2400mm(3”~96”)

Nominal Pressure:Class 150

Applicable Temperature:-50~+130℃

Suitable Medium: lime slurry, sea water, oil, alkali, salt and acid etc..

Connection and Standard

Connection: Wafer

Flange Standard:ASME B16.5

Sealing Surface:Raised Face;

Design Standard:API 609;

Inspection Standard:API 598;

* Special connection dimensions can be made according to users’ requirements.
