ZSHZ/ZDRZ Eccentric Rotary Control Valve is a valve core is on the surface of the spherical cap eccentric Angle of schedule control valve, the one-piece, straight type runner body structure, the rotary center of the valve core is not concentric with the axis of rotation, can reduce the seat wear and prolong service life. It has excellent stability, resistance to erosion and corrosion resistant, reliable seal and the advantages of large flow adjustable range. In addition, the series of control valve compact structure, output torque, action quick, steady, long service life and can be widely used in petroleum, chemical industry, coal chemical industry, electric power, metallurgy and other industrial control area and heavy load.
Metal sealing class is IV、V，soft sealing type is Ⅵ，up to null leak；the flow characteristic is approximately linear。
Structure and function principle
The pneumatic eccentric rotating valve consists of body part and pneumatic actuator, which can also add the handwheel mechanism according to the working condition。The structure as follow：

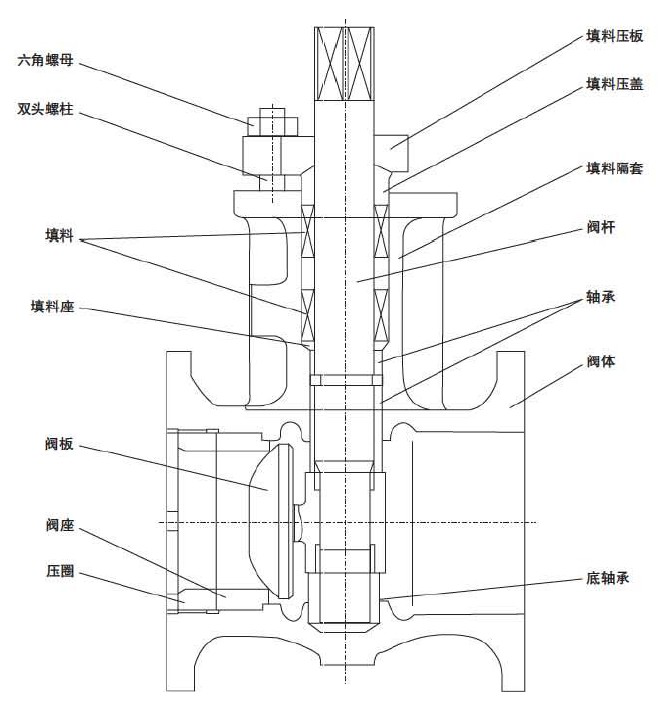

Chart 1、Camflex valve diagram

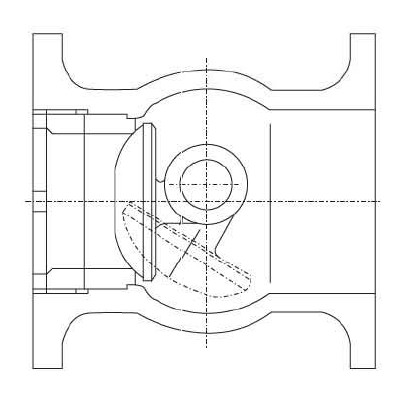

Chart 2、Camflex valve eccentric diagram
Main parts material
Parts name | Material |
Body | WCB、CF8、CF8M |
Plug | 304、316、304或316+HCr、316+STL |
Sealing ring | C-PTFE、304或316+HCr、316+STL |
Stem | 2Cr13、17-4PH |
Seat Ring Retainer | 304、316 |
Shaft | 316+HCr、316+STL |
Packing | PTFE、Flexible graphite |
Yoke | WCB |
Notes：Body、trim material can produce according to customer’s requirements.
Main performance parameters
Nominal diameter(mm) | 25 | 40 | 50 | 80 | 100 | 150 | 200 | 250 | 300 | |
Rated Kv | Whole cavity | 12 | 25 | 43 | 115 | 200 | 430 | 730 | 1100 | 1500 |
60% cavity | 7 | 15 | 26 | 70 | 120 | 260 | 440 | 670 | 900 | |
40% cavity | 4.8 | 10 | 17 | 46 | 80 | 170 | 290 | 450 | 600 | |
Nominal pressure | PN1.6~10.0MPa、Class150~600 | |||||||||
Flow characteristic | Linear | |||||||||
Suitable temperature(℃) | -45~400 | |||||||||
Rated angle(°) | 60 | |||||||||
Sealing type | Soft seal、Hard seal | |||||||||
Range ability | 100:1 | |||||||||
Connect type | Wafer、Flange | |||||||||
Surface coating | If body material is carbon steel ,color is gray（Epoxy） If body material is stainless steel, uncoated | |||||||||
Notes：1、Special requirements can be produced according to customer's specifications；
2、Flange’s standard can according to ANSI、JIS etc.
Actuator
Type | penumatic piston | Electric | |
Model | SR | DA | See each manufacturer sample selection |
Form | Single action | Double action | |
Service | Cutting-off | Cutting-off | |
Port | G1/8”、 G1/4”、 G1/2” | See each manufacturer sample selection | |
Rated angle | 90° | ||
Direct action | Pressure increase valve close | ||
Undirect action | Pressure increase valve open | ||
Ambient temperature | -40~80℃ | ||
Surface coating | Middle silver + both sides of the red | ||
Accessory | Regulator、solenoid valve、limited switch、handwheel、air-valve etc. | ||
Main performance indication
No. | Item | Pneumatic camflex valve | electric camflex valve | |
1 | Basic error＜(%) | ±2.5 | ±2.5 | |
2 | Hysteresis error＜(%) | 2.5 | 2.0 | |
3 | Dead band＜(%) | 2.0 | 3.0 | |
4 | Starting & ending point deviation＜(%) | Starting point | ±2.0 | ±1.5 |
Ending point | ||||
5 | Rated rotation deviation＜(%) | +2.5 | +0.5 | |
6 | Rated flow coefficient deviation＜(%) | +10 | ||
Notes：Those products performance index according to GB/T4213-2008.
Body & Bonnet working temperature · pressure range Unite：kgf/cm2
temperature | PN16 | PN40 | PN64 | |||
WCB | CF8 | WCB | CF8 | WCB | CF8 | |
-196～-20 | — | 16.0 | — | 40.0 | — | 64.0 |
-20～100 | 16.0 | 16.0 | 40.0 | 40.0 | 64.0 | 64.0 |
150 | 16.0 | 16.0 | 40.0 | 40.0 | 64.0 | 64.0 |
200 | 16.0 | 16.0 | 40.0 | 40.0 | 64.0 | 64.0 |
250 | 14.0 | 15.0 | 36.0 | 38.0 | 56.0 | 60.0 |
300 | 12.5 | 14.0 | 32.0 | 36.0 | 50.0 | 56.0 |
350 | 11.0 | 13.2 | 28.0 | 34.0 | 45.0 | 53.0 |
400 | 10.0 | 12.5 | 25.0 | 32.0 | 40.0 | 50.0 |
425 | 9.0 | 12.0 | 22.0 | 30.7 | 36.0 | 48.4 |
450 | 6.7 | 11.5 | 17.0 | 29.5 | 26.5 | 46.8 |
500 | — | 10.5 | — | 26.5 | — | 42.5 |
525 | — | 9.9 | — | 24.6 | — | 39.2 |
560 | — | 9.0 | — | 22.0 | — | 36.0 |
Size

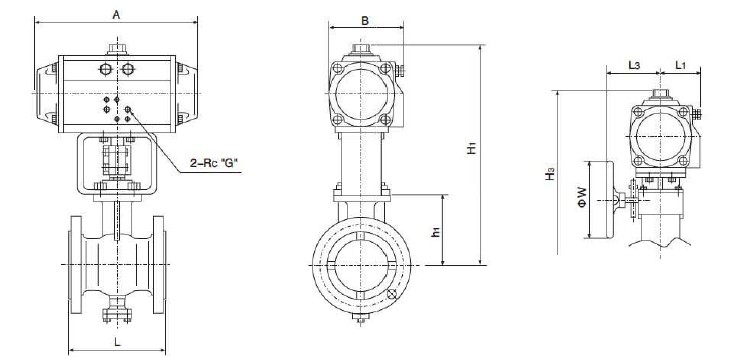

1、ZSHZ pneumatic piston type camflex valve shape dimension
Unite：mm
DN | L | H1 | h1 | H3 | Handwheel hight | D | D0 | n-d |
25 | 102 | 100 | 117 | 115 | 85 | 4-14 | ||
40 | 114 | 110 | 117 | 150 | 110 | 4-18 | ||
50 | 124 | 125 | 117 | 165 | 125 | 4-18 | ||
80 | 165 | 145 | 118 | 200 | 160 | 8-18 | ||
100 | 194 | 180 | 118 | 220 | 180 | 8-18 | ||
150 | 229 | 270 | 148 | 285 | 240 | 8-22 | ||
200 | 243 | 290 | 150 | 340 | 295 | 12-22 | ||
250 | 297 | 330 | 150 | 405 | 355 | 12-26 | ||
300 | 338 | 360 | 150 | 460 | 410 | 12-26 |
Notes：1、PN1.6MPa dimensions are used in the table
2、H1 and H3 are different in size according to pressure and actuator；
ZMAZ pneumatic diaphragm camflex valve shape dimension
Unite：mm
DN | L | H1 | h1 | H3 | Handwheel hight | D | D0 | n-d |
25 | 102 | 100 | 117 | 115 | 85 | 4-14 | ||
40 | 114 | 110 | 117 | 150 | 110 | 4-18 | ||
50 | 124 | 125 | 117 | 165 | 125 | 4-18 | ||
80 | 165 | 145 | 118 | 200 | 160 | 8-18 | ||
100 | 194 | 180 | 118 | 220 | 180 | 8-18 | ||
150 | 229 | 270 | 148 | 285 | 240 | 8-22 | ||
200 | 243 | 290 | 150 | 340 | 295 | 12-22 | ||
250 | 297 | 330 | 150 | 405 | 355 | 12-26 | ||
300 | 338 | 360 | 150 | 460 | 410 | 12-26 |
Notes：1、PN1.6MPa dimensions are used in the table；
2、H1 and H3 are different in size according to pressure and actuator；
3、ΦA、B and B1 are different in size according to pressure and actuator。
Connection dimensions and standards
·Connect type：Wafer、Flange
·Manufacturing standard：GB/T12221-2005、ANSI B16.10
·Flange standard： HG/T20592-2009、ANSI B16.5
·The size of the connection can be made according to the user's requirements。
