General

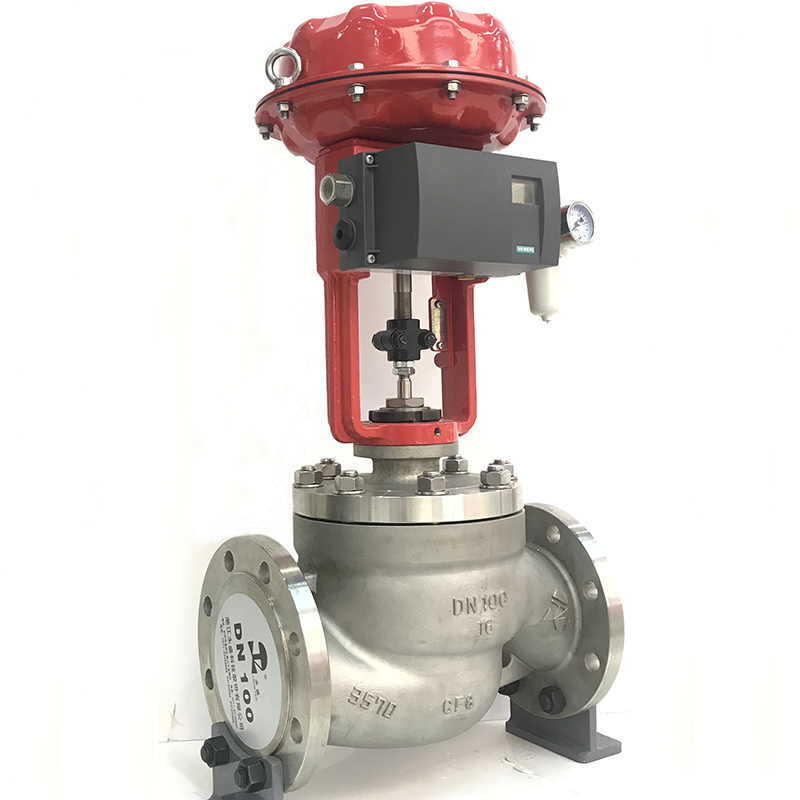

YSIQ(D)10 Series of Intelligent Single-Seat Control Valve use modular design, with advantages of impact structure and wide varieties. The varieties combination of the trim components, make it applicable for high pressure difference, high precision and low noise conditions to meet the different usage for customers’ requirements. The modular design, double-sides valve seat and compressing tightly connection, all greatly enhance valve sealing grade and its service life, which make it easy to repair and greatly increase its general performance.

Working principle:

 The equipped smart positioner will convert to valve required settings when receive normal signal of electricity or signal of computer. Then the pneumatic actuator linear displacement will change to angular displacement by valve special connections, and tested by position transducer then feedback to microprocessor.

    The microprocessor will compare the actual valve feedback with original settings and tested if there is any deviation. It will output pulse width modulation command(PWM) to piezoelectric valve according to the the size and direction of deviation. The piezoelectric valve will regulate the input or exhaust gas under the control command.

Control Mode

    Control mode apply PWM (Puise Width Modulation) to drive:

     Full speed: when control deviation is big, positioner output link signal.

     Mid-speed: when control deviation is normal, output impulse signal.

     Slow speed: when control deviation is small, output smaller impulse signal.

     Keep orientation: when control deviation is smaller than valve control precision range,

                    no output command signal.

Main Parts Materials                                                                Table 1

*Above is the common materials,the specific grades take the contract as a standard.

Specification&Technical Parameter                                                  Table 2

Flow Characteristic                                                                   Table 3

1.Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory ,and not trading company.

2. Q: Do you have agent or representative abroad?

A: We have agent in Russia and Kuwait and so on.

3. Q: What's your product range?

A: We can produce Control Valve, Butterfly Valve, Self Operated Valve,Ball Valve, Actuator and Air cylinder etc.

4. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,generally 30-60 days.

5. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

6. Q: What certificates will you provide ?

A: We can provide API-6D/TRCU010 and TRCU certificates/ECM/API STD 607/Certificate of Quality System Approval /SIL/DUNS/ISO9001......

7. Q : How do you control the quality of the product?

A: Adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of-the-art quality control equipment

8.Q : How to ship the goods?

A: We can arrange the shipment for your, you just need to tell us your convenient seaport or airport; we can help to ship the goods by your agent as well.
