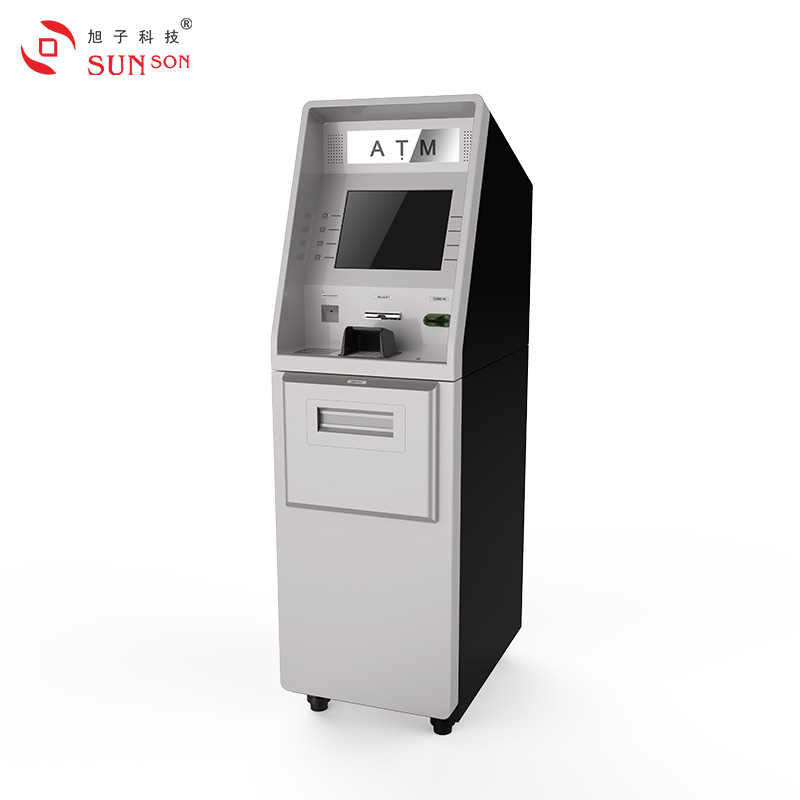

The Cash Machine ATM for Supermarkets is a cash dispenser banking machine. It has 2 dispenser cassettes; each has a storage capacity of 3000 bills. The system supports maximum 4 dispenser cassettes (Optional). The built-in NFC module enables transactions without inserting bank card, and Bio-recognition modules such as fingerprint & face recognition modules are also available subject to user's requirements. The following is an introduction of Sunson Standard Automated Teller Machine ATM .
Main Function
Withdraw money, account inquiry
Transfer, recharge
Print receipt
Change password.
Ad player
Financial information release
Other online transactions
Product Features
1) The appearance is fashionable, the structure is concise, the cabinet body is firm, and the installation and maintenance is convenient.
2) Easy and quick deployment.
3) The transaction is safe and reliable, in line with UnionPay and national secret security certification.
4) Energy saving, green and environmental protection.
5) Personalized APP applications can be superimposed.
Specifications
Module | Specification | |
Main Control | Industrial control motherboard, H81 chip, LGA1150CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB,12 RS232 interfaces, two 1000Mb adaptive dual network cards, support TCP/IP protocol, ATX300W power supply; power on with timing switch function | |
Display | 15-inch capacitive touch integrated LED backlit LCD screen, VGA interface, DC12V, resolution 1024*768, USB interface, Touch accuracy：4096*4096 | |
Dispenser Cassette | RS232 interface, AC220V/3A, whole stack of horizontal banknote presenter, 2 withdrawal cassettes + 1 reject box, banknote box capacity is 3000 bills each, and the reject box capacity is 250 notes, banknote cassette can be expanded to 4 (Optional) | |
Receipt Printer | DC24V, paper width 80mm, Black mark detection of paper run out, half cut, paper roll diameter 80mm. | |
Card Reader | Standard RS232 interface, DC24V, two-in-one, support read and write of contact IC card and magnetic card, with electric door, magnetic card conforms to ISO7810 ID-1,7811 standard, IC card conforms to ISO7816-2 standard, pass EMV or PBOC authentication | |
Encryption PIN pad | Standard RS232 interface, certified by PCI V3.0, with waterproof, dust-proof, riot-proof and leak-proof, single DES, double DES, 3DES algorithm, unpacking self-destruct program | |
Non-contact Card Reader | USB interface, DC5V (powered by USB), working frequency 13.56MHz, conforming to ISO-7816 standard A, B and C grade (5V); conforming to ISO-14443 standard A & B class , supporting Mifare S50/S70 card; supporting NFC function, supporting transaction of non-contact IC card; RF reading and writing distance: more than 50mm | |
Power Supply | Input: AC110/220V, 150W/200W, Output: DC12V/12A, DC24V/8.8A | |
Multi-media Speakers | Support for multimedia voice system | |
Dimension | 500x780x1700mm | |
Weight | 170Kg |
