Business Type: Manufacturer
Main Products:Titanium BarsTitanium FoilTitanium PowderTitanium PipesTitanium Sheetstitanium nutstitanium boltstitanium wiresTitanium Ingotstitanium thread rods
ID:20101924163
Category: Metallurgy,Chemicals & Energy Metallic Minerals Raw Material
MOQ:1.00 KG
titanium foiltitanium platetitanium nutsTitanium SheetsTitanium PipesTitanium PowderTitanium Ingotstitanium threaded rodstitanium targets
T/TWestern Union
Gr2/GR5
Sheet Mechanical Properties:
Grade | Tensile strength, MPa (min) | Yield strength, MPa (min) | Elongation, % (min) | Reduction of Area, % (min) |
Gr1 | 240 | 170 | 24 | ---- |
Sheet Chemical Component
Grade | Ti | N, max | C, max | H, max | Fe, max | O, max | Residuals | |
| Max each | Max total | |||||||
Gr1 | Main | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | 0.1 | 0.4 |
Features:
Titanium alloy coil sheet has high strength and low density, good mechanical properties.
Toughness and corrosion resistance.
In addition,titanium alloy is difficult to cut.Industrial production of titanium began in 1948.
As The aviation industry develop demand, the titanium industry with an average annual growth rate of about 8%.The world's annual production of titanium alloy processing materials has reached more than 40,000 tons, titanium alloy brand nearly 30 kinds.
The most widely used titanium alloys areTi6Al4vV(Grade5), and industrial pure titanium (grade1, grade2).

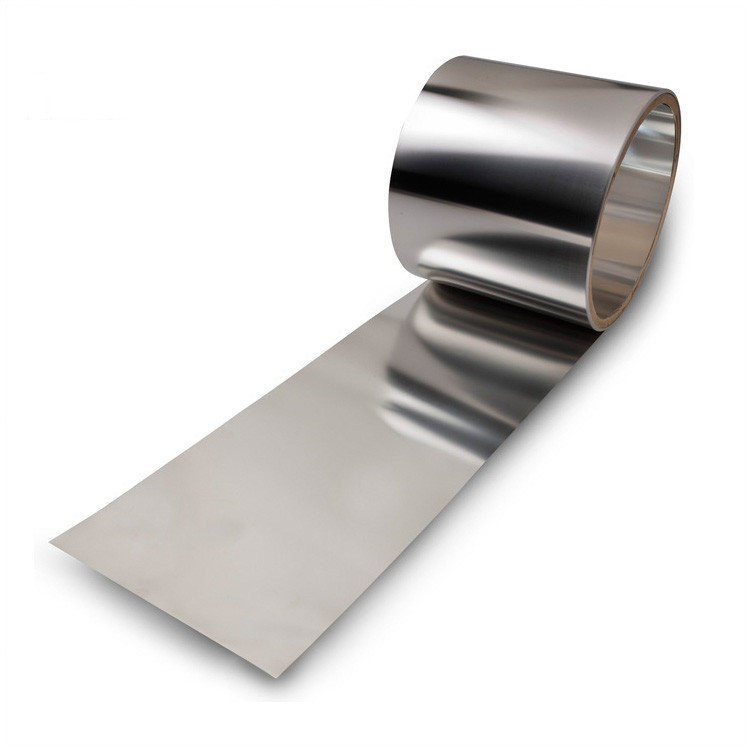

Specification
T=0.1-1.5mm W=90-1250mm
Titanium foil is a new type of metal. The properties of titanium are related to the impurity content of carbon, nitrogen, hydrogen, oxygen, etc. The purest titanium iodide impurity content is less than 0.1%, but its strength is low and its plasticity is high.99.5% of industrial pure titanium performance is: ρ=4.5g/cm3 density, melting point is 172 ℃, coefficient of thermal conductivity λ= 15.24 W/(m.K), σb = 539 MPa, elongation δ= 25%, reduction of area ψ= 25%, elastic modulus E = 1.078 x 105 MPa, hardness HB195.
