914-610 vertical type big span roll forming machine

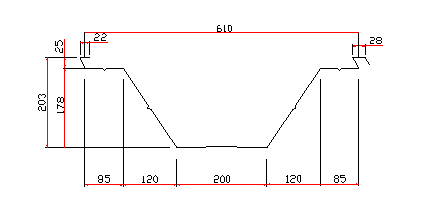

Drawing:
Total Weight: | about 13000KG |
Main Motor Power: | forming power is 5.5kw bending power is 4.0kw cutting power is 4.0kw conical power is 1.5kw+1.5kw |
Working Speed: | Straight sheet and Arch sheet: 13m/min Sewing: 10m/min |
Material of rollers: | 45# steel, quenched HRC 58-62 |
Material of roller shafts: | 45# steel, adjusted |
Material of cutting blade: | Cr12 , 1Mov |
PLC Type: | Omron |
Step of rollers: | 13 steps |
Feeding Width: | 914mm |
Effective Width: | 610mm |
The depth of the groove: | 203mm |
Thickness of the coil: | 0.6-1.6mm |
Operating factor of the panel: | 66.7% |
Proper span: | 7-38m |

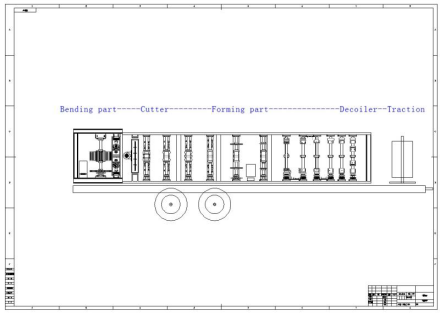

Working follow:
