CZ purlin automatic CZ purlin C purlin Z purlin purlin roll forming machine C purlin roll forming machine
L/CT/T
CZ steel purlin gold roll forming machine with good quality
·More types machine on sale.
·Size adjust by PLC,No need to set any part in machine,Save time,Save labor.
·pre-cut and post cut as option
·Universal cutting,all sizes in one cut
·Hydraulic decoiler as option

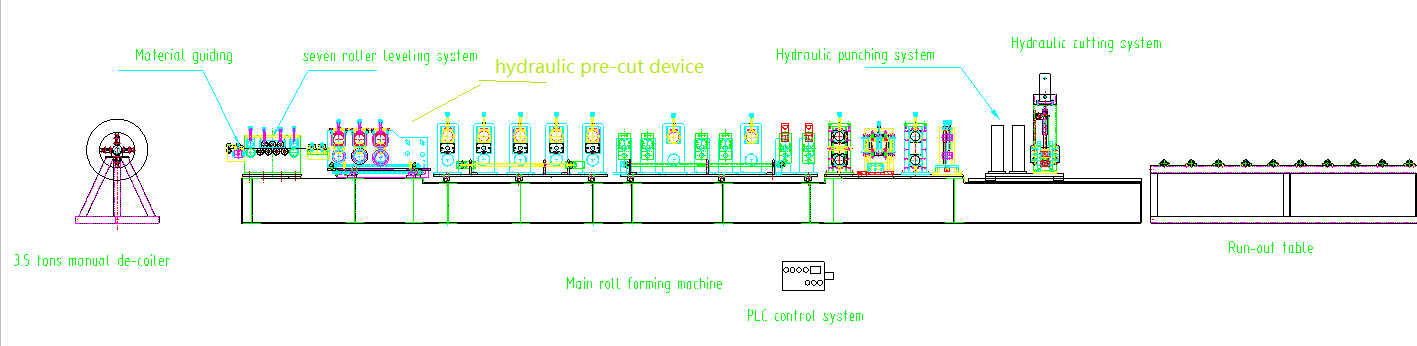

Machine Configuration:
De-coiler-leveling system-main roll forming machine PLC control system-hydraulic punching system-hydraulic cutting system-run-out table
Technical parameters:
1.Matching material: steel coil
2.Material thickness range: 0.8mm-3mm
3.Forming speed: 18m/min
4.Shaft Material:45#
5.Shaft diameter:65.75.85.90.110
6.Controlling system: PLC
7.Total weight:8-10T
8.Size of machine: L*W*H 10M*1.2M*1.6M
Pictures of machine:
