Automatic width change light keel roll forming machine
The machine could do the profile, angle, omega, stud and track, 38 main, 50 furring

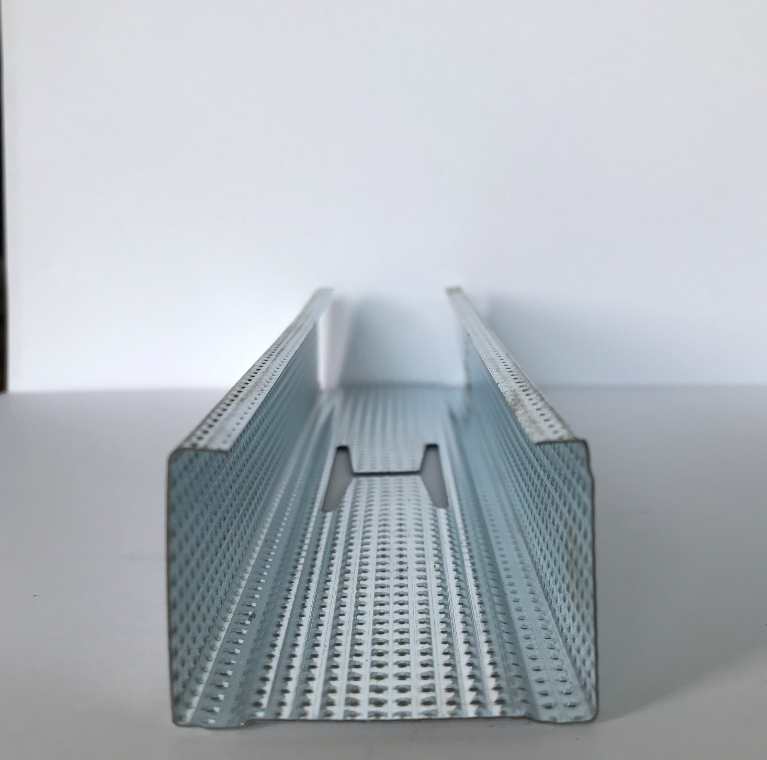

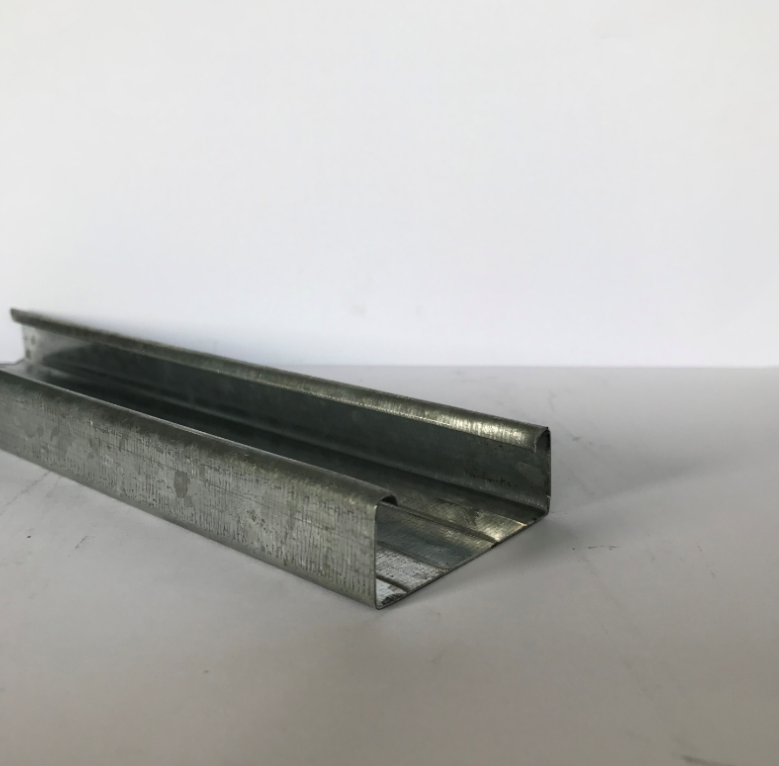

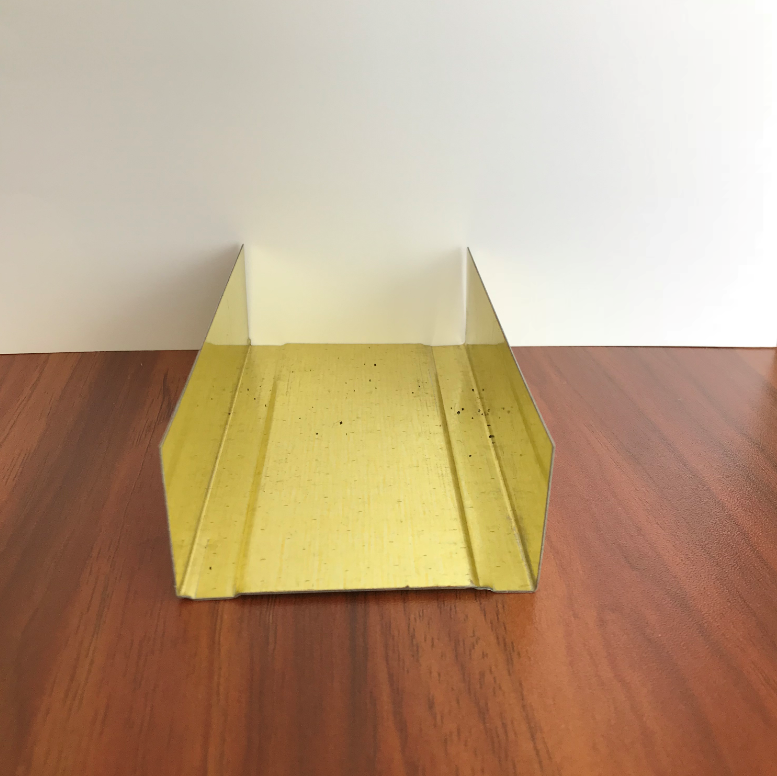

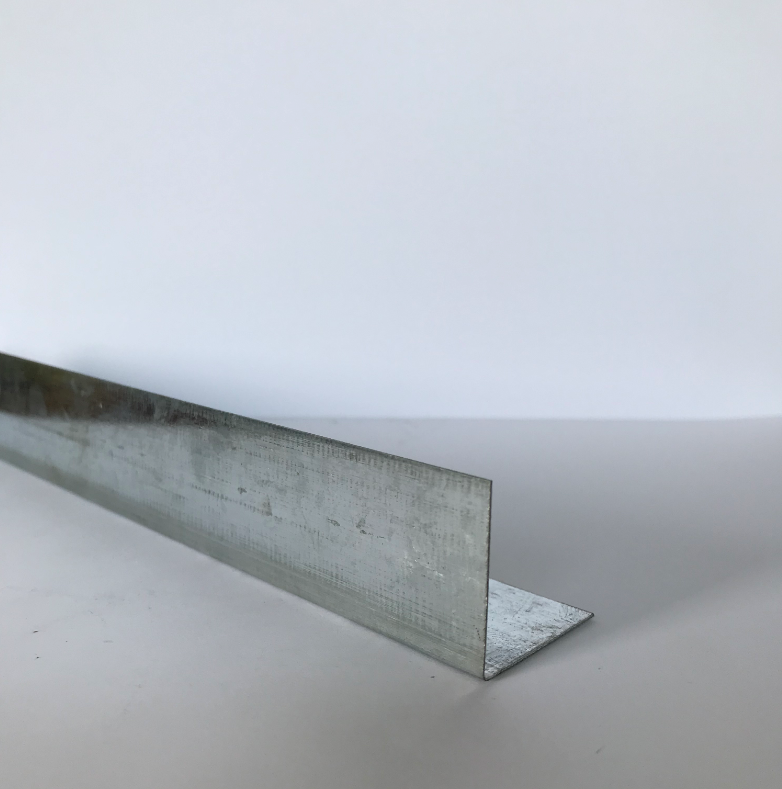

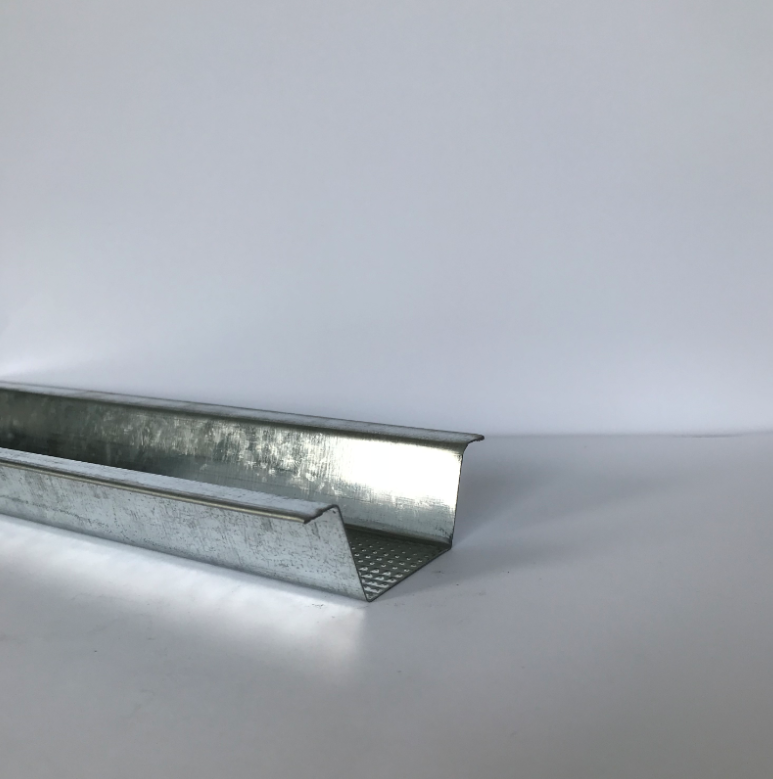

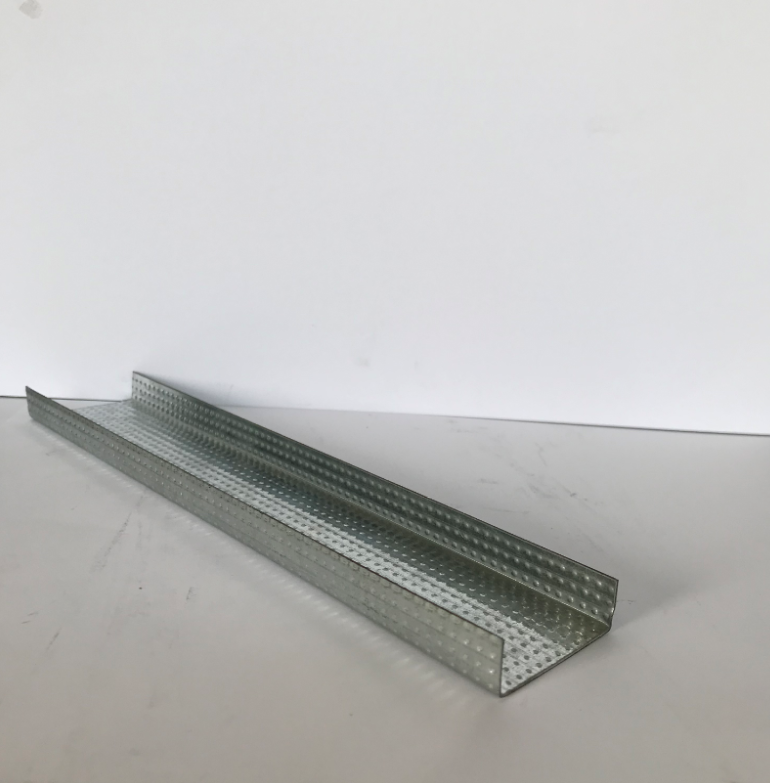

The final products for making reference:
| Angle | Omega | Stud | Track | 38 main furring | 50 furring |
 |  |  |  |  |  |

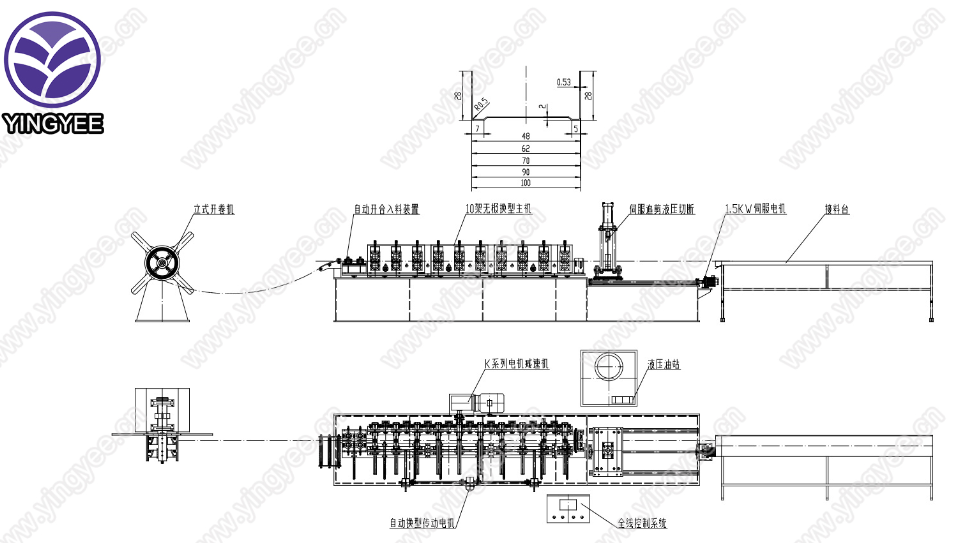

Machine technical process:
Machine parameter:
| Material： | Galvanized strip |
| Thickness： | 0.2-1mm |
| Roller stations： | 10-14 rollers |
| Speed： | 25m/min |
| Shaft material and diameter： | 45#steel with chromed，50mm |
| Roller material： | CR12 |
| Cutter material： | CR12 |
| Main power： | 5.5KW |
| Driven： | Chain |
| Width change: | Automatic |
