PP honeycomb sandwich panel

FRPan is Fiberglass pre-immerged resin sheet (FRP ) as skin panel on both sides, PP honeycomb as core. Resin adopted is Epoxy or Phenolic .They are composited from high pressure and heating by aero technology. There are about 60% consumption in FRP skin ,so composite panel is more lighter in weight meanwhile more stiffness comparing with cold lamination,in later there are only less than 30% fiberglass adoption in FRP skin.

The features of Polycore FRPan are light weight, high stiffness, sound damping, fire-retardnat, quakeproof, insulation, environmental friendly.

FRPan characteristics:

-- light weight stiffness strength

--corrosion,fungi, rot,chemical,moisture resistant

-- Sound ,vibration dampen

-- Easy assembe

-- Waterproof

-- excellent Electrical characteristics

-- excellent Magnetics characteristics

Polycore Honeycomb sandwich panel are applicable to the apartments and external walls of building and truck body,floor,ceiling, widely Used in boat, yatch, wind turbine, sports, tank cover and so on.

FRPan applied into transportation to reduce weight,improve speed, save energy for operator.

FRPan applied into building to reduce weight,improve strength,save room for building.

FRP surface thickness from 0.5mm to 3mm made according to clients request. Most commonly application in practice is 1.5mm and 2.0mm.

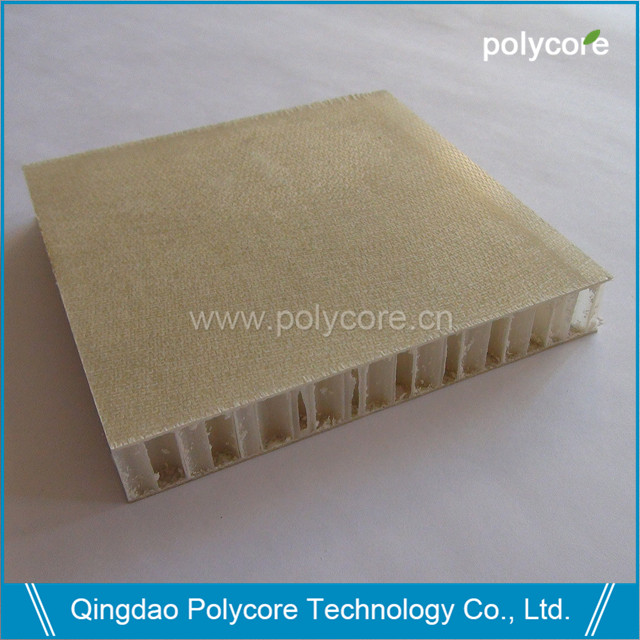

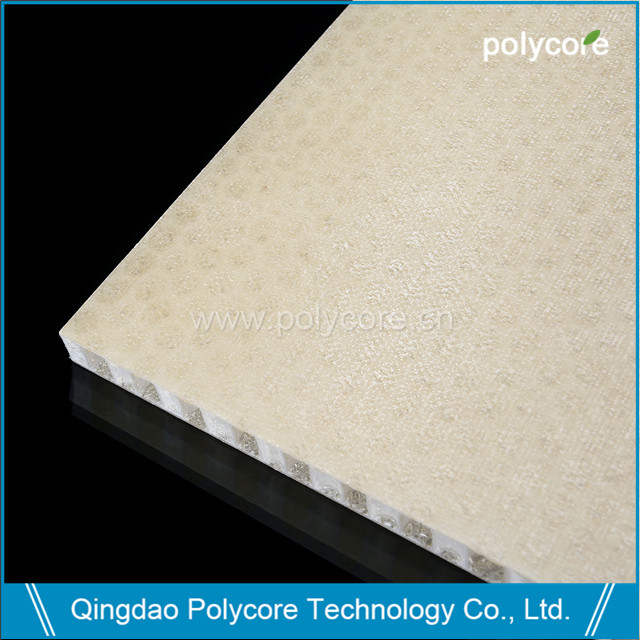

Uv-treatment, anti-slip surface, gel-coat treatment, painting treatment and so on can be made according to clients request. But because our lamination is heating lamination so Gel-coat or Painting treatment only can be made after composite panel finished so such treatment cost is higher than usually supplier. Considering such cost,we strongly suggest client select original skin or black skin ,the cost is competitive.

Standard specification: 1200*2400mm

Maximal specification: 5500*12000mm.

PP honeycomb sheet thickness from 4mm to 200mm,common in application from 6mm to 40mm. So FRP PP honeycomb composite panel thickness from 7mm to above. Commonly in practice composite panel thickness from 15mm to 40mm,Skin thickness in which 1.5mm is more popular.

 Standard size: 1200*2400mm Max size: 5500*12000mm.

 Thickness: 8mm-100mm

Application:

FRPan is widely applied in chemical barrier to provide protection for tanks, pits, pipes and grates.

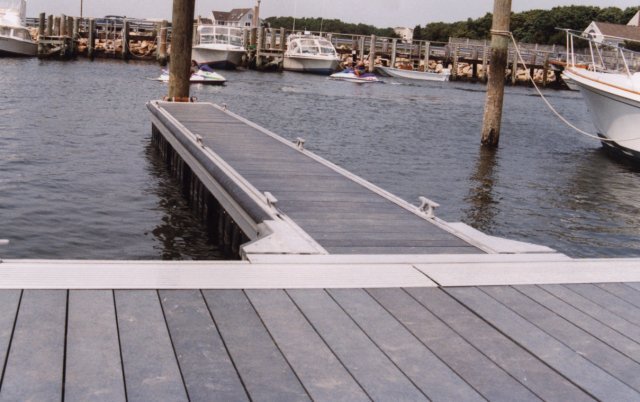

FRPan is widely applied in Marine as structural material such as floor,hull, deck, bulkhead, tank, canopies and cases;

FRPan is applied in Tooling as fabricating tooling and moulds;

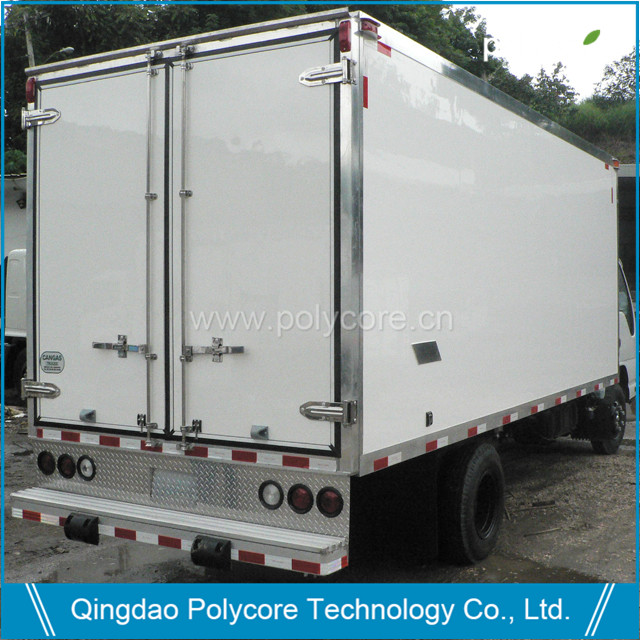

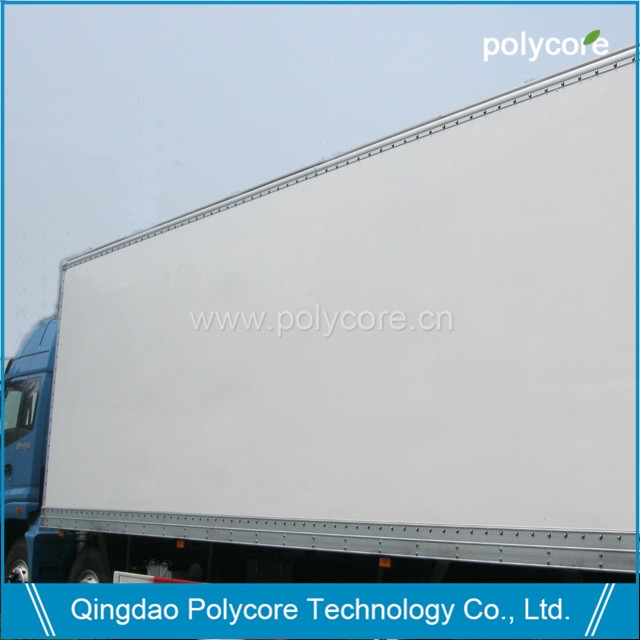

FRPan is applied in truck as wall, ceiling,floor, door;

FRPan is applied in bus as wall, floor

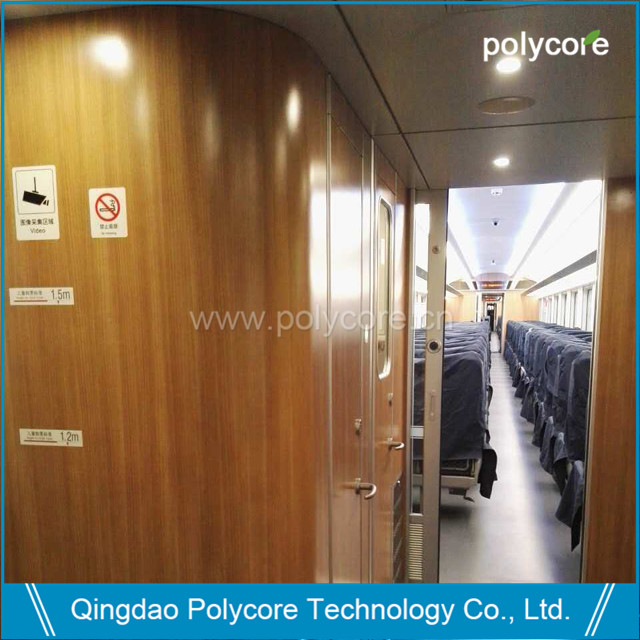

FRPan is applied in train as wall, floor, door,partition

FRPan is applied in wind turbine act as blades, canopy housing and rotor hoods;

FRPan is applied in sport as leisure, film set and decorative market;

FRPan is applied in corrosion to prevent and repair of metal and concrete surfaces;

FRPan is applied in chemical barrier to provide protection for tanks, pits, pipes and grates.

FRPan is applied in door,partition,ceiling,floor ,ground structural material.in building

For example:

Both sides with 1.5mm Fiberglass, FRPan total thickenss 20mm, weight is 5.6kgs/sq.mr

Skin 1mm,1.5mm,2.0mm price gap is very big,most popular total thickness in practice are 12mm,15mm,18mm.

FRPan with excellent characteristics so it's price is higher comparing with traditional panels.

Only for complicated application purpose,especially request for weight limitation and strength request at same time,our FRPAn is suitable and with high value for money.
